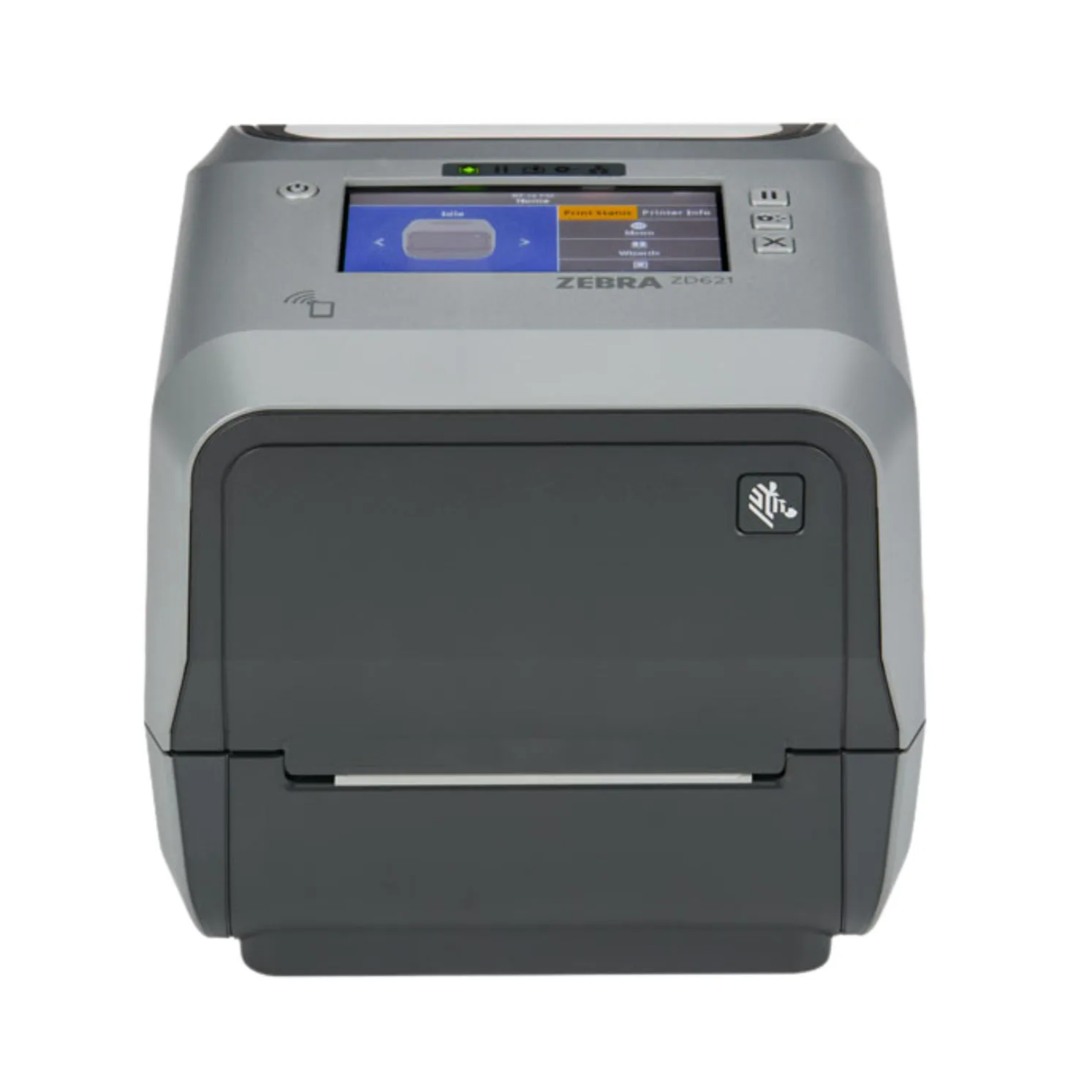

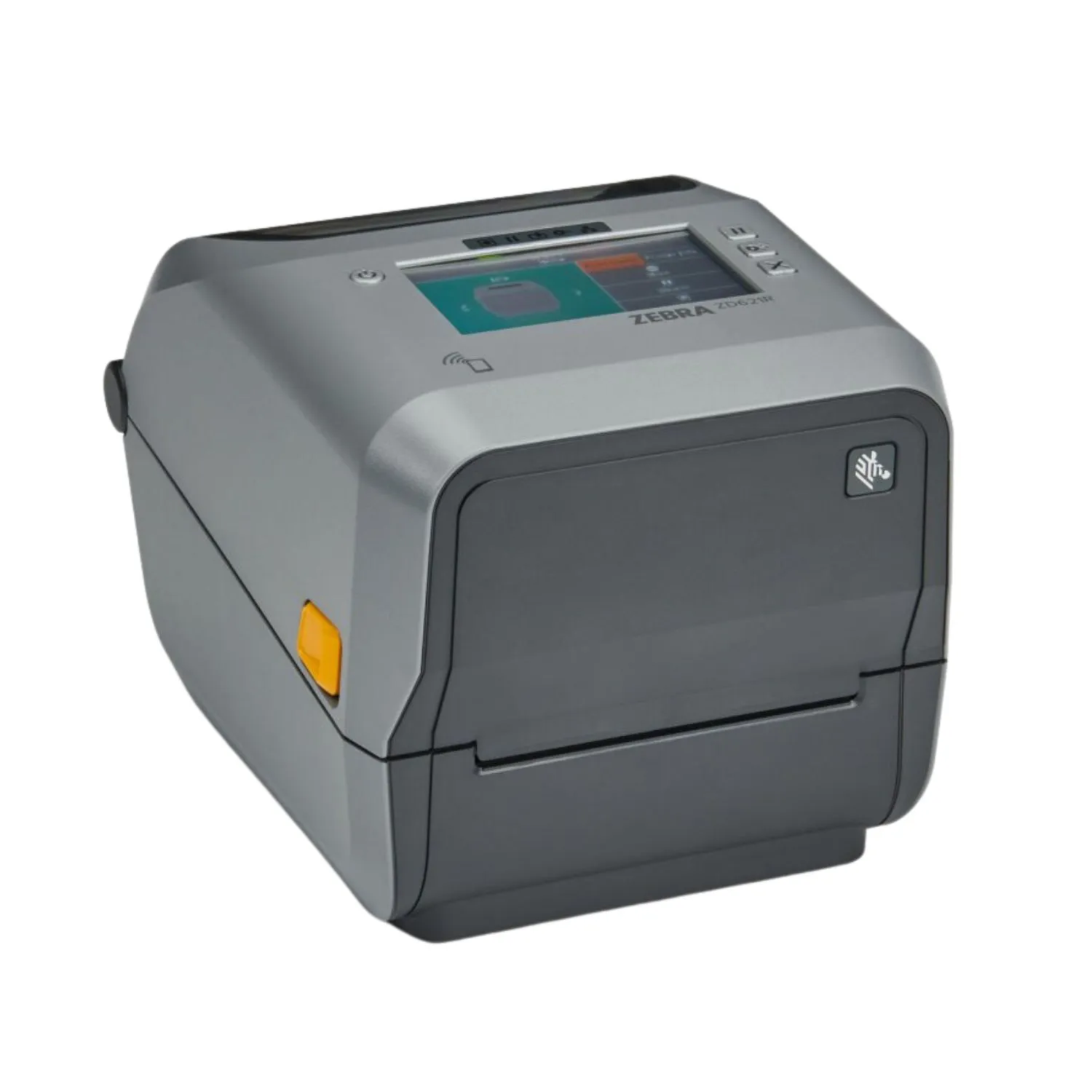

Zebra ZD610 Series Desktop Printer – ZD621

  • Premium Printing Performance
  • Enhance Productivity Sustainably with ZeroLiner
  • Operate with Ease, Securely
  • See Printer Status in Color and Change Settings with a Touch
  • Backwards Compatible with Virtually Any Existing Thermal Printer
  • Comprehensive Communication to Connect Your Way
Add to Enquiry
Download PDF
Specification
Standard Features

• Print methods: Thermal Transfer or Direct Thermal
• ZPL and EPL programming languages
• 5 status icon, 3 button user interface
• Ethernet, Serial, USB 2.0, USB Host
• Printer setup mobile app for Android & iOS via BLE
(Bluetooth Low Energy 5) connection*
* BLE is intended for use with Zebra printer setup mobile app only
• Real Time Clock (RTC)
• Media dancer for excellent print quality
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR® certified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner
• PDF Direct

Physical Characteristics
Dimension Direct Thermal:
8.7 in. L x 7.0 in. W x 5.9 in. H
221 mm L x 177 mm W x 151 mm H
Thermal Transfer:
10.5 in. L x 8.0 in. W x 7.5 in. H
267 mm L x 202 mm W x 192 mm H
Weight Direct Thermal: 3.6 lbs./1.6 kg
Thermal Transfer: 5.5 lbs./2.5 kg
Printer Specifications
Operating System Link-OS®
Resolution 203 dpi/8 dots per mm
300 dpi/12 dots per mm (optional)
Memory 512 MB Flash; 256 MB SDRAM
64 MB user available non-volatile memory
8 MB user available SDRAM
Maximum Print Width 4.09 in./104 mm for 203 dpi
4.27 in./108 mm for 300 dpi
Maximum Print Speed 8 in./203 mm per second (203 dpi)
6 in./152 mm per second (300 dpi)
Media Sensors Full width, moveable reflective/black mark sensor; multi-position transmissive/ gap sensor
Firmware ZPL II; EPL 2; XML; ZBI; PDF Direct
Media and Ribbon Characterists
Label Length Maximum: 39.0 in./991 mm
Minimum: 0.25 in./6.4 mm
Media Width Direct Thermal: 0.585 in./15 mm to 4.25 in./108 mm
Thermal Transfer: 0.585 in./15 mm to 4.65 in./118 mm
Media Roll Size Maximum outer diameter: 5.0 in./127 mm
Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1), 2.0 in., (50.8 mm) and 3.0 in. (76.2 mm) using optional adapters
Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.19 mm) max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands, linerless media*
* For use only with linerless printer model
Ribbon Outside Diameter 2.6 in./66 mm (300 m); 1.34 in./34 mm (74 m)
Ribbon Standard Length 984 ft. (300 m); 243 ft. (74 m)
Ribbon Ratio 1:4 media to ribbon (300 m)
1:1 media to ribbon (74 m)
Ribbon Width 1.33 in./33.8 mm — 4.3 in./109.2 mm
Ribbon Core I.D. 300 meter ribbon 1 in./25.4 mm
74 meter ribbon 0.5 in./12.7 mm
Operating Characteristics
Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR certified; Energy Efficiency Level VI certified; optional 2750 mAh battery; Healthcare models include IEC60601-1 certified power supply
Options and Accessories
Media Handling Dispenser/Peeler: label peel and present with label present sensor (factory installed or field installable)
Cutter (factory installed or field installable)
Communications 802.11ac Wi-Fi and Bluetooth 4.1 (dual radio), (factory installed or field installable)
User Interface 4.3” full color touch LCD (resolution: 480 wide x 272 high) with 3-button user interface
Battery Provides power to the printer to support a full shift of printing at maximum print speed. Supports all media handling options.
Keyboard Display Unit ZKDU keyboard display units for stand-alone printing solutions
Media Locking Cabinet Mechanical lock with 2 keys; Kensington® lock slot; available on ZD621 healthcare direct thermal model only
Mounting Plate Secure ZD Series printers to countertops or shelves
Enclosed Power Supply Attached power supply accessory for cord-free installation
Carrying Case Carrying case with shoulder strap and handles makes it easy to bring your desktop printer and battery to the point of application

Description

You need a premium, compact printer that’s feature-rich and built to perform flawlessly–day in and day out. Don’t compromise. Get it all with Zebra’s ZD621 desktop printers, featuring an innovative new architecture to power our ever-expanding printer capabilities and software. They offer unmatched security that’s constantly evolving to safeguard your sensitive data and shield you from cyberattacks. Upgrade with connectivity and media-handling options whenever you’re ready. The optional full-color LCD touch display with intuitive menu–and increased remote-management capabilities make ZD600 Series printers easy to use. Together, these give you outstanding print performance, years of optimal use, industry-leading reliability and unparalleled intelligence and security.
