Zebra

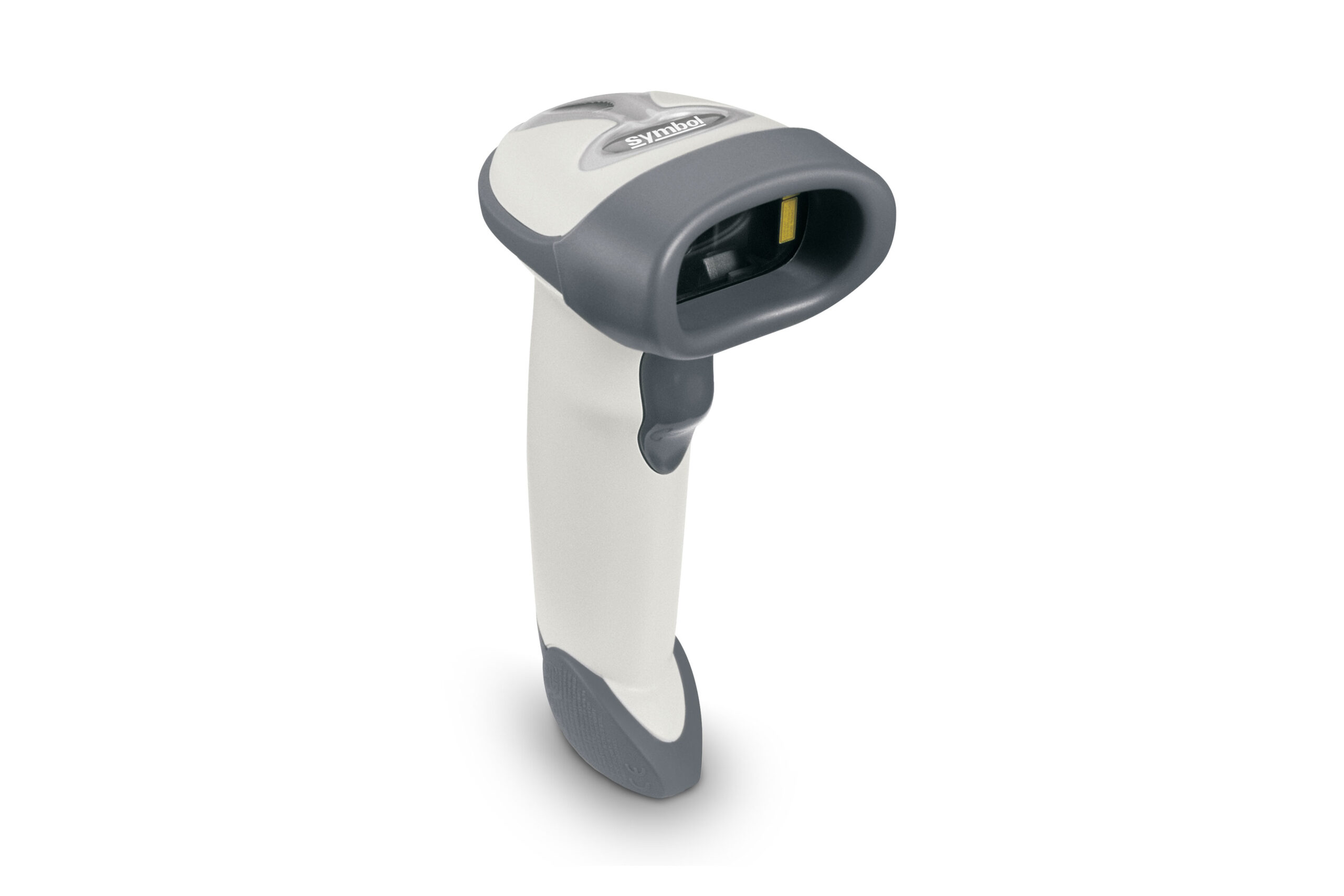

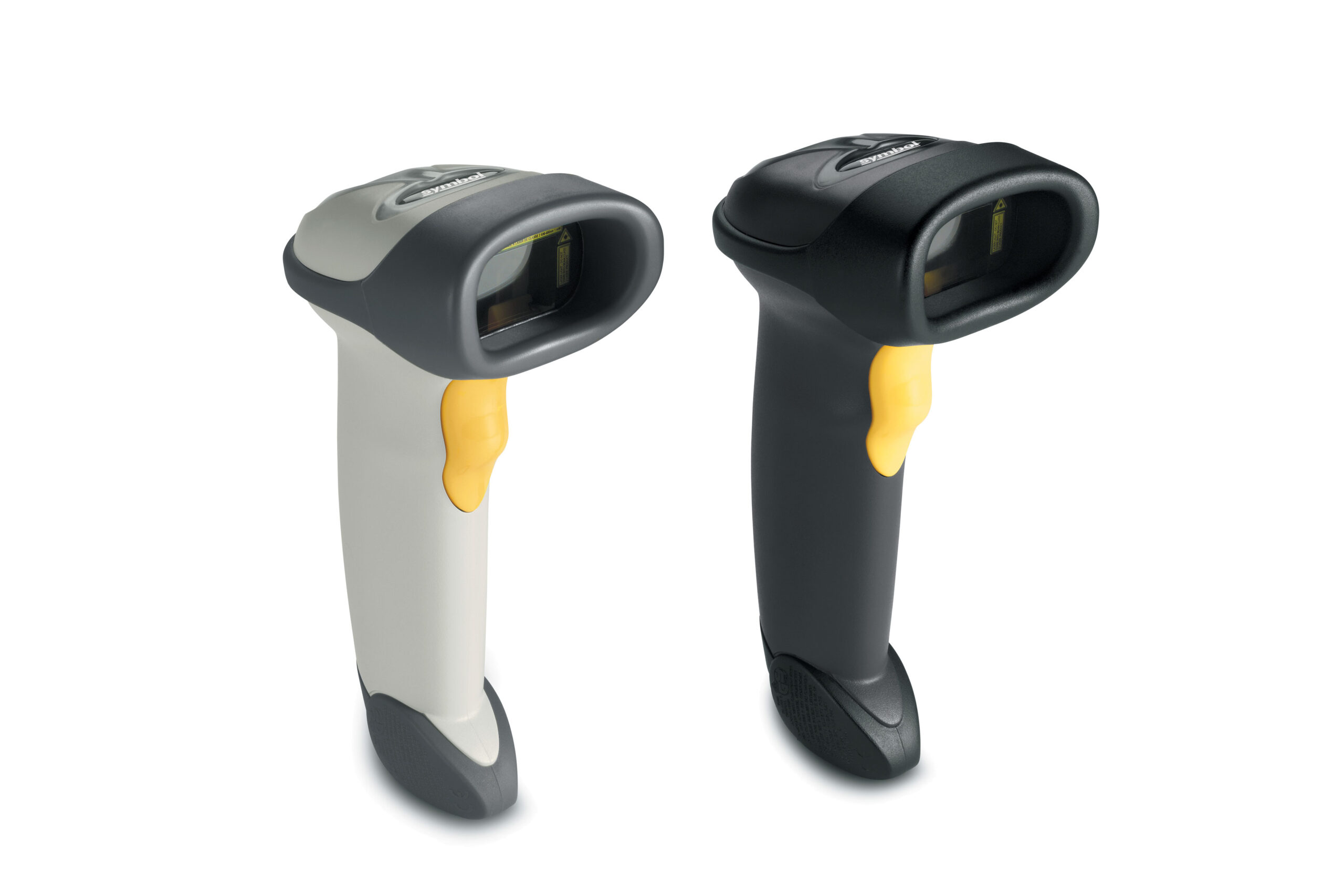

Zebra LS2208 Handheld Scanner
Zebra LS2208 Handheld Scanner - Image 2
Zebra LS2208 Handheld Scanner - Image 3

Zebra LS2208 Handheld Scanner

  • Durable construction
  • Capture high-density bar codes for greater application flexibility

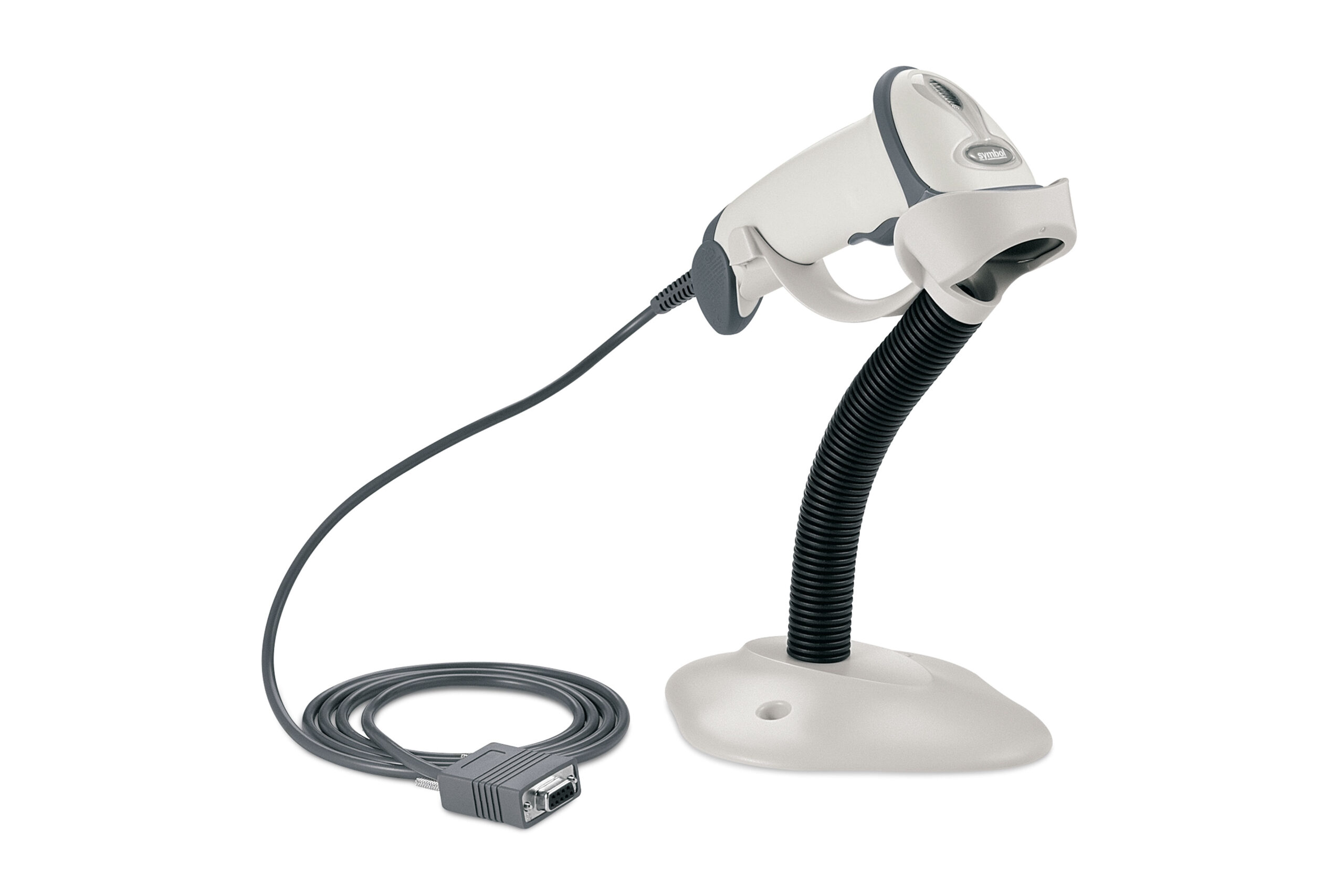

  • Flexible handheld or hands-free operation
  • Advanced Data Formatting (ADF)
  • Class-leading working range
  • Truly plug-and-play
Add to Enquiry
Download PDF
Specification
Physical Characteristics
Dimensions 6 in. H x 2.5 in. W x 3.34 in. D 15.2 cm H x 6.3 cm W x 8.4 cm
Weight 5.3 oz/150 gm
Input Voltage Range 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
User Indicators Direct decode indicator, good decode LEDs, beeper (adjustable tone/volume)
Performance Characteristics
Scanner Type Single line
Light Source 650 nm Laser Diode Class 2
Scan Element Frequency 50Hz
Scan Speed 100 scans per second
Minimum Print Contrast 20% minimum reflective difference
Scanning Technology Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma). Refer to Product Reference Guide for complete list of symbologies.
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
User Environment
Operating temp. 32° to 122° F/0° to 50° C
Storage temp. -40° to 158° F (-40° to 70° C)
Humidity 5% to 95% (non-condensing)
Drop specs Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Environmental Sealing IP30
Tumble Specification Designed to withstand 500 tumbles in 1.64 ft./0.5 m tumbler
Electrostatic Discharge (ESD) ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect

Description

With over eight million sold, the LS2208 remains our best selling handheld laser scanner. The LS2208 has it all — enterprise class scanning in a very ergonomic and durable lightweight design that delivers all day comfort, an extra-long read range for easy scanning, plus support for everyday 1D bar codes, including high-density. With multiple interfaces, a universal cable and support for keyboards in 97 languages, the LS2208 delivers plug-and-play simplicity in virtually every corner of the world. The LS2208 — the well-proven scanner powering the checkout lines all around the world.
