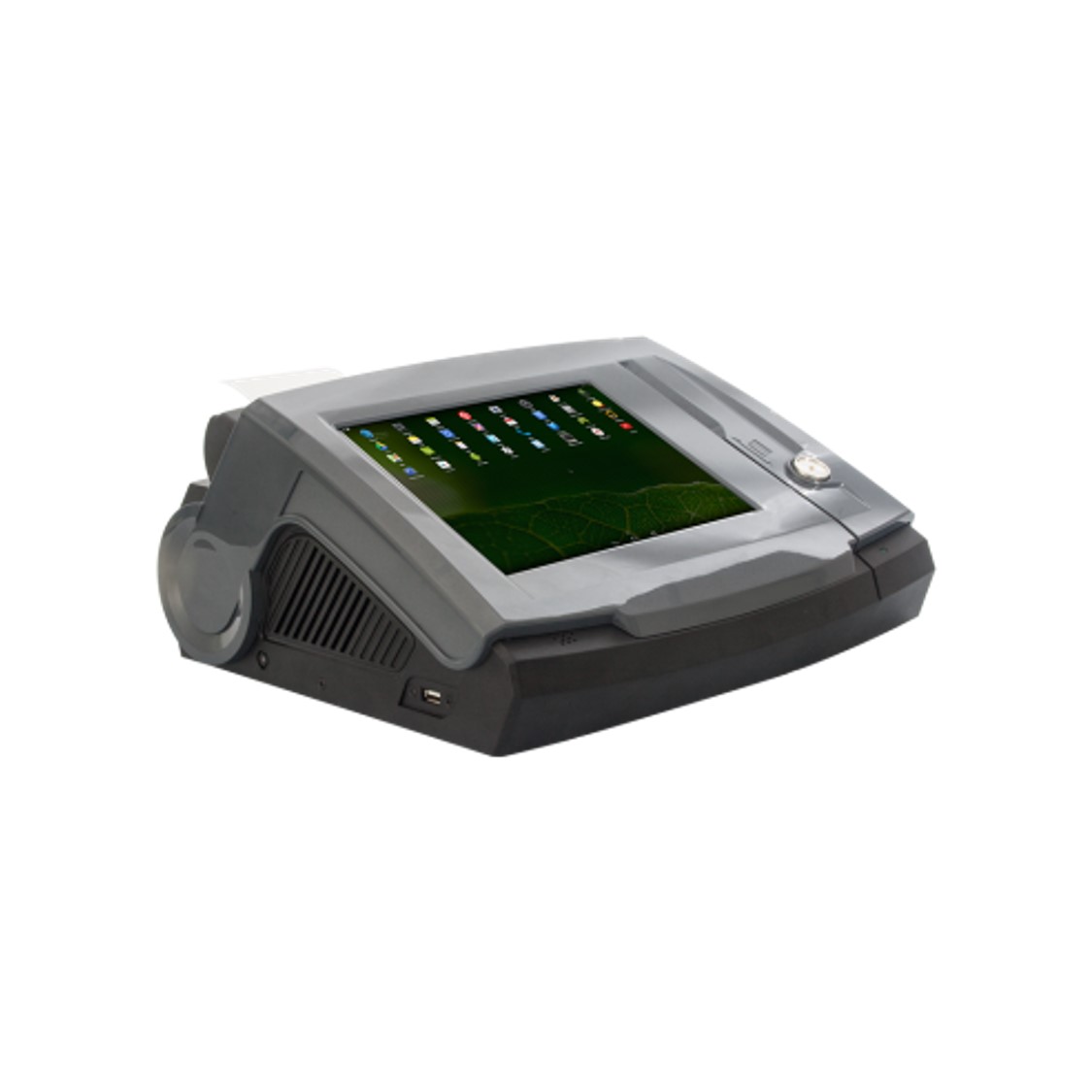

POSLAB 9.7″ Android POS Terminal
Features :
- Seiko SII Thermal Printing Mechanism
- MSR and Ibutton
- High Brightness VFD Display
- 5 Wire Resistive Touch
- Build in 80mm Thermal
Printer
Specification
System
| System | ||||
|---|---|---|---|---|
| Models | 9.7″ | 15″ | 9.7″ | 15″ |
| CPU Support | Freescale i.MX6 U / Q ARM Cortex-A9 Dual/Quad CPU Core 1GHz |
Intel® Atom™ Dual Core D525 1.8Ghz CPU Intel® Pentium® Processor B960 Intel® Ivy Bridge Intel® Core™ i7 / i5 / i3 / Dual Cores CPU Intel® Celeron®Processor Bay-Trail J1900 ( 2M Cache , up to 2.42GHz) |
||
| Memory | 1GB /2GB DDR3 | Support up to 4GB DDR3 / 8G DDR3 | ||
| Core Logic | Freescale i.MX6 U/Q | Intel® NM10 / HM76 / BayTrail | ||
| Net Work | 10M/100M/1000M Base-T Fast Ethernet | Network 10/100/1000 Base-T Fast Ethernet | ||
| Power Supply | 24V Power Adaptor | 24V Power Adaptor | ||
| System weight | 4.5 kgs | 7 kgs | 4.5 kgs | 7 kgs |
| Dimension(WxHxD) mm | 358 x 345 x 167.5 | 380 x 205 x 393.5 | 358 x 345 x 167.5 | 380 x 205 x 393.5 |
| O/S | Android 4.2.2 Jelly Bean / Ubuntu Linux | Windows XP/XPE , WEPOS , POSReady 2009 , Windows platform only) | ||
Storage
| Storage | ||||
|---|---|---|---|---|
| Models | 9.7″ | 15″ | 9.7″ | 15″ |
| HDD | N/A | 1 x 2.5ʺ SATA HDD | ||
| SSD | N/A | SSD SATA Interface Max.1TB | ||
| eMMC | 8G/16G/32G (Standard 8G) | N/A | ||
| Micro SD | 1xMicroSD slot | N/A | ||
I/O Ports
| I/O Ports | ||||
|---|---|---|---|---|
| Models | 9.7″ | 15″ | 9.7″ | 15″ |
| Serial Ports | 3 x external COM ( w/ +5V, +12V selectable ) | |||
| USB Ports | 4 x external USB Ports | 5 x external USB Ports | ||
| mPCIe | 1 x internal | |||
| Ethernet | 1 x 10/100/1000 Mbps (RJ45) | |||
| PS/2 | N/A | 1 x PS/2 keyboard/mouse port | ||
| VGA | N/A | 1 x DB-15 VGA Interface | ||
| Parallel Port | N/A | 1 x DB25 | ||
| Audio | 1 x 2W speaker | 1 x 2W speaker (Optional) | ||
| Cash Drawer | 1 x RJ11 | 1 x RJ11 | ||
| DC-IN | 24V DC-IN | 24V DC-IN | ||
| Power Switch | 1 x Power Switch | 1 x Power Switch | ||
Environmental
| Environmental | ||||
|---|---|---|---|---|
| Models | 9.7″ | 15″ | 9.7″ | 15″ |
| Operating Condition | 0°C ~ 40°C, 20%RH ~ 90%RH | |||
| Storage Condition | -20°C ~ 60°C, 10%RH ~ 90%RH | |||
Display
| Display | ||||
|---|---|---|---|---|
| LCD | 9.7ʺ TFT LCD Pane | 15ʺ TFT LCD Panel | 9.7ʺ TFT LCD Pane | 15ʺ TFT LCD Panel |
| Max. Resolution | 1024 x 768 | |||
| Brightness | 350 nits | 250 nits | 350 nits | 250 nits |
| Touch Screen | 5 wires resistive touch panel | |||
Peripheral Options
| Peripheral Options | ||
|---|---|---|
| Peripheral Options | Android 4.2.2 Jelly Bean / Ubuntu linux | Windows XP/XPE , WEPOS , POS Ready 2009 , Windows 7 , 8 (Ivy Bridge and Baytrail platform only) |
| Printer | 80mm easy loading thermal printer with auto cutter Printing Speed: 200mm / sec.RS232 (default) / Epson Commands Compatible |
|
| Customer Display | VFD Type, 20 columns x 2 lines, each column 5×7 | |
| MSR | JIS-I or II, ISO Track 1/2/3 USB (default) | |
| i-button | Read only, COM interface | |
| Color | Dark Grey/White | |
| Wireless LAN | MIMO | Mini PCIe Wireless LAN Module 802.11 b/g/n |
| RFID | ISO 14443A, UrtraLight,Mifare@PRO, DESfire | ISO 14443A, UrtraLight,Mifare@PRO, DESfire |
| Safety standards | CE/FCC | |
