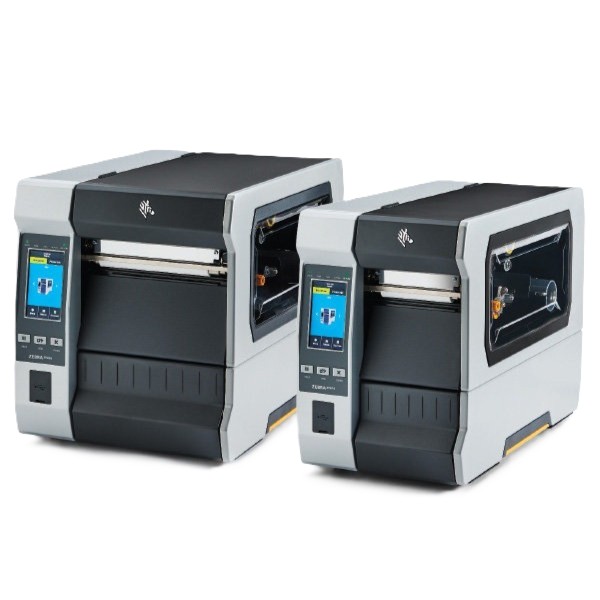

Zebra ZT600 Series Industrial Printer -ZT610/ZT620

Advancing the legacy of their industry-leading Xi Series predecessors, the ZT610 and ZT620 combine rugged durability and exceptional performance on a user-friendly, future-ready platform. These next-generation workhorses are designed to help you navigate the rapidly evolving business technology landscape. So, whether you’re concerned about growing production line demands, increasing operational complexities, integrating disparate systems or controlling investment costs, ZT600 Series Industrial Printers have you covered today—and for years to come.

Download PDF
Specification
Standard Features

• Print Methods: Thermal transfer and direct thermal
• Construction: Metal frame and bi-fold metal media cover with enlarged clear viewing window
• Side-loading supplies path for simplified media and ribbon loading
• Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
• Communications: USB 2.0, high-speed, RS-232 Serial, Gigabit Ethernet, Bluetooth 4.0
• Highly visible color display that turns red when the printer is in an error state allows operators to determine printer status from a distance
• Simplified icon menu navigation system categorizes settings into logical groups of functions

Printer Specifications
Resolution • 203 dpi/8 dots per mm
• 300 dpi/12 dots per mm (optional)
• 600 dpi/24 dots per mm (optional for ZT610 only)
Memory 1 GB RAM memory
2 GB on-board linear Flash memory
Maximum Print width ZT610: 4.09″/104 mm
ZT620: 6.6″/168 mm
Maximum Print speed ZT610: 14 ips/356 mm per second
ZT620: 12 ips/305 mm per second
Media sensors Dual media sensors: transmissive and reflective
Continuous Print Length ZT610
• 203 dpi: 150″/3810 mm
• 300 dpi: 100″/2540 mm
• 600 dpi: 30″/762 mm
ZT620
• 203 dpi: 80″/2032 mm
• 300 dpi: 80″/2032 mm
Media width ZT610: 0.79″/20 mm to 4.5″/114 mm
ZT620: 2.0″/51 mm to 7.1″/180 mm
Maximum media roll size 8.0″/203 mm O.D. on a 3″/76 mm I.D. core
Media thickness 0.0023″/0.058 mm to 0.010″/0.25 mm
Media types Continuous, die-cut, notch, black-mark
Ribbon Characteristics
Standard length 1476’/450 m
Width ZT610: 0.79″/20 mm to 4.33″/110 mm
ZT620: 2.0″/51 mm to 6.7″/170 mm
Core 1.0″/25.4 mm I.D.
Operating Characteristics
Environmental Operating Temperature:
• Thermal transfer = 40ºF to 104ºF/5ºC to 40ºC
• Direct thermal = 32ºF to 104ºF/0ºC to 40ºC
Operating Humidity: 20% to 85% non-condensing Storage/Transportation Temperature: -22F to 140F/ -30C to 60C
Storage Humidity: 20% to 85% non-condensing
Electrical Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts
ENERGY STAR qualified
Agency approvals IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
Physical Characteristics
  ZT610 closed ZT620 closed
Length 19.88″/505 mm 19.88″/505 mm
Width 10.56″/268.2 mm 13.44″/341.45 mm
Height 15.58″/395.68 mm 15.58″/395.68 mm
Weight 50 lbs/22.7 kg 57.4 lbs/26 kg
Options and Accessories
Connectivity Two open communication slots to add internal cards for 802.11ac, parallel, Ethernet, and applicator interface. IPv6 option is available as an external dongle attached to a parallel port
Media Handling • Rewind: Internally rewinds a full roll of printed labels on 3″ core, or peels and rewinds liner
• Cutter: Front-mount guillotine cutter and catch tray
• Ink-side in ribbon supply spindle
Display Brightly lit, 4.3-inch full-color touch display with clear navigation and immediate status visibility and support
Keyboard Display Unit ZKDU™ keyboard display units for stand-alone printing applications
