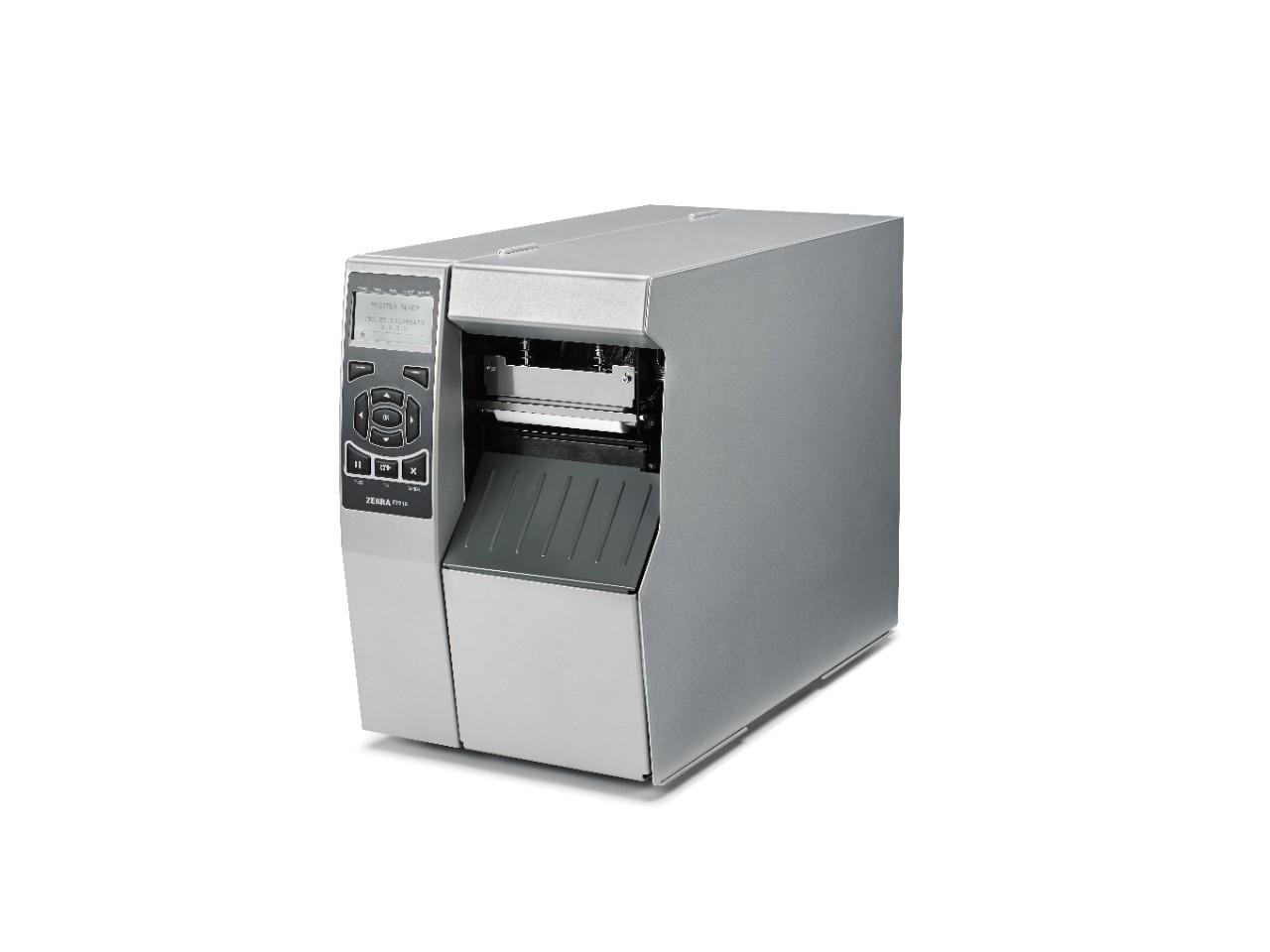

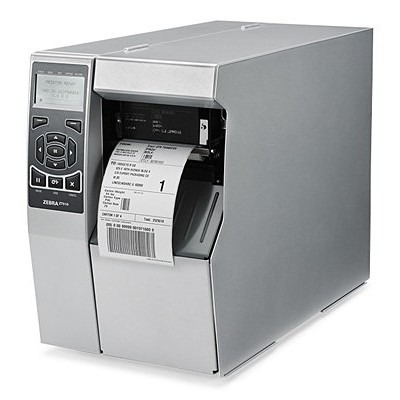

Zebra ZT510 Industrial Printer

Designed to strike the ideal balance between performance and value, the ZT510 includes the core features you need in an industrial printer at a cost-effective price point. Building on the legacy of its industry-leading predecessor, the Zebra® 105SLPlus™, the ZT510 provides a proven, durable design and construction while adding advanced management and monitoring capabilities. That means you get 24/7 reliability to keep your operations running smoothly today, plus longevity and advanced functionality to power through every challenge in the years to come—all at an exceptional value.

Download PDF
Specification
Standard Features
  • Print Methods: Thermal transfer and direct thermal printing
  • Construction: Metal frame
  • Thin film printhead with E3™ Element Energy™ Equalizer for superior print quality
  • Communications: USB, Serial, Gigabit Ethernet, Bluetooth® LE
  • Backlit, multi-line display including an intuitive menu, easy-to-use keypad and password protection
Printer Specifications
Resolution 8 dots per mm/203dpi
12 dots per mm/300dpi (optional)
Memory 512 MB RAM memory
2 GB on-board linear Flash memory
Print width 4.09″/104 mm
Print speed 12 ips/305 mm per second
Media sensors Dual media sensors: transmissive and reflective
Maximum Continuous Print Length 203dpi: 3,988mm/157″
300dpi: 1,854mm/73″
Media width 0.79″/20 mm to 4.5″/114 mm
Maximum media roll size 8.0″/203 mm O.D. on a 3″/76 mm I.D. core
Media thickness 0.003″/0.076 mm to 0.012″/0.305 mm
Media types Continuous, die-cut, notch, black-mark
Ribbon Characteristics
Standard length 1476’/450 m
Width 2.00″/51 mm to 4.33″/110 mm
Core 1.0″/25.4 mm I.D.
Operating Characteristics
Environmental Operating Temperature:
– Thermal transfer = 40°F to 104°F/5°C to 40°C
– Direct thermal = 32°F to 104°F/0°C to 40°C
Operating Humidity: 20% to 85% non-condensing Storage/Transportation Temperature: -22°F to 140°F/ -30°C to 60°C
Storage Humidity: 20% to 85% non-condensing
Electrical Auto-detectable (PFC Compliant) 90-265 VAC, 47-63Hz, rated at 250 Watts
ENERGY STAR qualified
Agency approvals IEC 60950, EN 55022 Class B, EN 55024, EN 61000-3-2, EN 61000-3-3
cTUVus, CE Marking, FCC-B, ICES-003, VCCI, C-Tick, NOM, S-Mark (Arg), CCC, CU, BSMI, KCC, SABS, IN-Metro
Physical Characteristics
  • Length 20.17″/512.3 mm
  • Width 10.56″/268.2 mm
  • Height 15.58″/395.68 mm
  • Weight 50 lbs/22.7 kg
