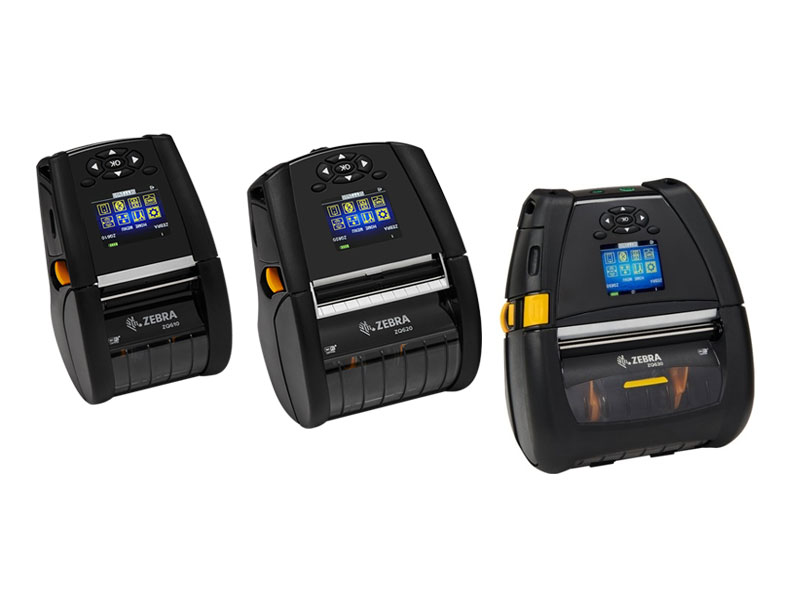

Zebra ZQ600 Series Mobile Printers – ZQ610/620/630

ZQ600 Series mobile printer, you can. The ZQ600 Series takes Zebra’s popular QLn platform and makes it even better — adding advanced technology and innovative design that drive productivity, ease-of-use and manageability to a new level. A large color display takes all the guesswork out of printer status. Advanced battery technology and more battery capacity, power every minute of the longest shift. The instant wake-up feature ensures the ZQ600 Series never sleeps on the job. Your workers get the fastest, most dependable wireless connections inside the four walls and your IT department will find the ZQ600 Series easier to integrate, manage, setup and secure thanks to Zebra’s Link-OS® operating system and powerful Print DNA suite of applications, utilities and developer tools. The ZQ600 Series — the next evolution in the gold standard for mobile label and receipt printing.

Add to Enquiry
Download PDF
Specification
Standard Features

• Apple® iOS, Android™ and Windows® Mobile connectivity
• Direct thermal printing of barcodes, text and graphics
• CPCL, EPL™ and ZPL® programming languages
• 512 MB Flash supports downloadable programs, receipt formats, fonts and graphics (128 MB available for user storage)
• ZQ620 & ZQ610: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
• ZQ630: 6800 mAh (nominal) 49.4 Wh removable, rechargeable PowerPrecision + Li-Ion battery
• Built-in battery charger
• Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
• Black mark and gap media sensing using fixed center position sensors
• Easy-to-use peel and present mode
• Label present sensor for issuing labels one at a time
• Tear bar for easy media dispensing
• Center-loading media locking for variable roll widths
• “Clamshell” design for easy media loading
• Management: Mirror, SNMP, Web server, Profile Manager, AirWatch®, SOTI® MobiControl™ and Ivanti Avalanche® (powered by Wavelink)
• Large, easy-to-read color display (288 x 240 pixels)
• Color display can be customized using WML (text and icons)
• 5-way navigation buttons, two software defined keys
• Printer color alerts on the display
• Tolerance of multiple drops from 5 ft./1.52 m (ZQ620 & ZQ610) and 6 ft./1.83 m (ZQ630) to concrete²
• IP54 dust and water resistance rating
• 400 MHz 32-bit ARM processor
• XML support
• Supports vertical and horizontal printing
• Printers can be used in any orientation
• QR barcode links to web-based help pages
• Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
• Label odometer
• NTP (Network Time Protocol) support via Wi-Fi or Ethernet
• Supports Zebra Network Connect manufacturing plant floor solution when used with the Ethernet cradle
• RFID is available on the ZQ630 as a separate product (please see the ZQ630 RFID Spec Sheet for more information)

Physical Characteristics
Dimensions ZQ610: 6.5 in. L x 3.5 in. W x 2.75 in. H / 165 mm L x 89 mm L x 70 mm H
ZQ620: 6.8 in. L x 4.6 in. W x 3.3 in. H / 173 mm L x 117 mm W x 84 mm H
ZQ630: 7.35 in. L x 6.5 in. W x 3.25 in. H / 187mm L x 165 mm W x 82.5 H mm
Weight with battery ZQ610: 1.33 lbs/0.6 kg
ZQ620: 1.6 lbs/0.73 kg
ZQ630: 2.45 lbs/1.1 kg
  Note: The Extended Capacity Li-Ion smart battery option adds 0.6 in./16 mm to the height of either ZQ600 Series printer.
Printer Specification
Resolution 203 dpi/8 dots per mm
Memory 256 MB RAM; 512 MB Flash (standard)
Maximum Print
Width		 ZQ610: 1.9 in./48 mm
ZQ620: 2.8 in./72 mm
ZQ630: 4.1 in./104 mm
Maximum Print
Speed		 Up to 4.5 in./115 mm per second
Media Sensors Black mark and gap media sensing using fixed center position sensors; label present sensor for issuing batch labels one at a time
Print Length Minimum: 0.5 in./12.7 mm
Maximum: 32 in./813 mm
Power ZQ610 & ZQ620: 3250 mAh (nominal) 23.4 Wh removable, rechargeable PowerPrecision+ Li-Ion battery
ZQ630: 6800 mAh (nominal) 49.4 Wh removable PowerPrecision+ Li-Ion battery
Media Characteristics
Maximum Label and Liner Length 0.5 in./12.7 mm to 32 in./813 mm or continuous
Media Width ZQ610: 1.0 in./25 mm to 2.18 in./55.4 mm
ZQ620: 1.0 in./25 mm to 3.125 in./79 mm
ZQ630: 2.0 in./51 mm to 4.4 in./112 mm (linered)
2.0 in./51 mm to 4.1 in./104 mm (linerless)
Maximum Media Roll Size ZQ610: 2.2 in./55.9 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
ZQ620: 2.6 in./66 mm OD on a 0.75 in./19 mm or 1.375 in./34.9 mm inner core
ZQ630: 2.6”/66 mm O.D. on a 0.75”/19 mm or 1.375”/34.9 mm inner core
Thickness 2.3 mil to 5.5 mil tag stock or 6.5 mil label stock
Media Types Die-cut labels and tags, linerless labels, receipt paper, RFID (ZQ630 RFID compatible), black bar and gap sensing
Operating Characteristics
Environmental Operating Temp.: -4°F to 122°F/-20°C to 50°C
Operating Humidity: 10% to 90% non-condensing
Storage/Transportation Temp.: -13°F to 149°F/-25°C to 65°C1
Storage Humidity: 10% to 90% non-condensing
Agency Approvals Emissions: FCC Part 15, Subpart B, EN55022 Class-B, EN60950, EN55024 and VCCI class B
Susceptibility: EN55024, EN61000-4-2, EN61000-4-3, EN61000-4-4, and EN61000-4-5
Safety: CE, TUV, CSA
Security FIPS support is available at no cost as a printer OS download. Please contact your Zebra Sales Representative for further information.
Communication and Interface
ZebraNet® 802.11ac radio with support • TKIP and AES encryption
• WPA and WPA2
• 802.1x (with WPA or WPA2)
• EAP-FAST, EAP-TTLS, EAP-TLS, PEAP, LEAP
• 802.11d and 802.11i
• Simultaneous Bluetooth 4.2 dual radio
• Wi-Fi Certification
• Fast roaming using Pairwise Master Key (PMK) caching, Opportunistic Key Caching (OKC), EAP Fast Session resumption or 802.11r
Bluetooth 4.2 (Classic and BLE) radio • Security modes 1–4
• “Made for iPod/iPhone/iPad” certified
• Key Bonding
10/100 Ethernet support via charging cradle
Cabled Communications Specifications • USB 2.0 full-speed interface (12 Mbps)
• Mini-B connector with optional strain relief
• Serial interface: 14-pin RS-232C port for communication to terminal or other host up to 115.2 Kbps
