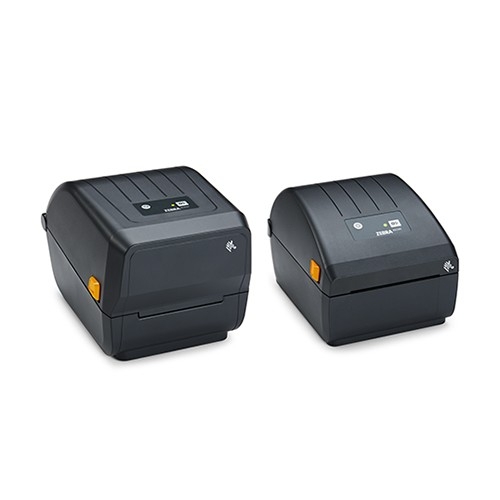

Zebra ZD200 Series Desktop Printer – ZD220/ZD230

Zebra’s ZD200 Series desktop printers give you more. Zebra-quality engineering, reliable operation and basic features at an affordable price—both at the point of purchase and across the entire lifecycle. These printers boast dual-wall construction and all-metal printheads — components not often found in a basic printer. With an industry best out-of-box experience, they are simple to install and begin printing. Key features include USB connectivity for universal interoperability, along with a single LED status indicator and single button for feed/pause for easy operation. And, they’re ENERGY STAR® qualified to reduce operational expenses

Add to Enquiry
Download PDF
Specification
Standard Features

• Thermal Transfer or Direct Thermal print method
• ZPL and EPL programming languages
• Single LED status indicator
• Single button for feed/pause
• USB connectivity
• OpenACCESS™ for easy media loading
• Dual-wall frame construction
• ENERGY STAR qualified
• ZebraDesigner Essentials – easy label design tool free at
www.zebra.com/zebradesigner

Physical Characteristics
Dimension Thermal Transfer:
– 10.5 in. L x 7.75 in. W x 7.5 in. H
– 267 mm L x 197 mm W x 191 mm H
Direct Thermal:
– 8.6 in. L x 6.9 in. W x 5.9 in. H
– 220 mm L x 176 mm W x 151 mm H
Weight 2.5 lbs./1.1 kg
Printer Specifications
Resolution 203 dpi/8 dots per mm
Memory 128 MB Flash; 128 MB SDRAM
Maximum Print Width 4.09 in./104 mm for 203 dpi
Maximum Print Speed ZD220 : 4 in./102 mm per second
ZD230 : 6 in./152 mm per second or 4 in./102 mm per second (programmable)
Media Sensors Movable black mark sensor, limited range from center to left side
Fixed off-center gap sensor
Firmware ZPL II; EPL 2; XML
Media and Ribbon Characterists
Maximum Label Length 39.0 in./991 mm
Media Width 1.00 in./25.4 mm to 4.4 in./112 mm
Media Roll Size 5.00 in./127 mm outer diameter Core inner diameter: 0.5 in. (12.7 mm) and 1.0 in. (25.4 mm) standard, 1.5 in. (38.1 mm)
Media Thickness 0.003 in. (0.08 mm) min.; 0.0075 in. (0.1905 mm) max. (tear-off mode only)
Media Types Roll-fed or fan-fold, die cut or continuous with or without black mark, tag stock, continuous receipt paper, wristbands
Ribbon Outside Diameter ZD220 : 1.34 in./34 mm (74 m)
ZD230 : 2.6 in./66 mm (300 m) ; 1.34 in./34 mm (74 m)
Maximum Ribbon Length ZD220 : 244 ft. (74 m)
ZD230 : 984 ft. (300 m)
Ribbon Ratio ZD220: 1:1 media to ribbon (74 m)
ZD230 : 1:4 media to ribbon (300 m) ; 1:1 media to ribbon (74 m)
Ribbon Width 1.33 in./33.8 mm — 4.3 in./109.2 mm
Ribbon Core I.D. ZD220 : 74 meter ribbon 0.5 in./12.7 mm
ZD230 : 300 Meter ribbon 1 in./25.4 mm ; 74 Meter ribbon 0.5 in./12.7 mm
Operating Characteristics
Operating Temp. 40° to 105° F/4.4° to 41° C
Storage Temp. -40° to 140° F/-40° to 60° C
Operating Humidity 10% to 90% non-condensing
Storage Humidity 5% to 95% non-condensing
Electrical Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz; ENERGY STAR qualified
Operations and Accessories
ZD220

Media Handling:
– Factory installed peeler

Real Time Clock:
– None
ZD230

Media Handling:
– Factory installed peeler or cutter

Communications:
– Factory-installed USB and Ethernet
– Factory-installed USB and Bluetooth 4.1
– Factory-installed USB 802.11ac Wi-Fi and Bluetooth 4.1

Real Time Clock:
– None

Keyboard Display Unit:
– No serial port, thus no KDU/ZKDU
