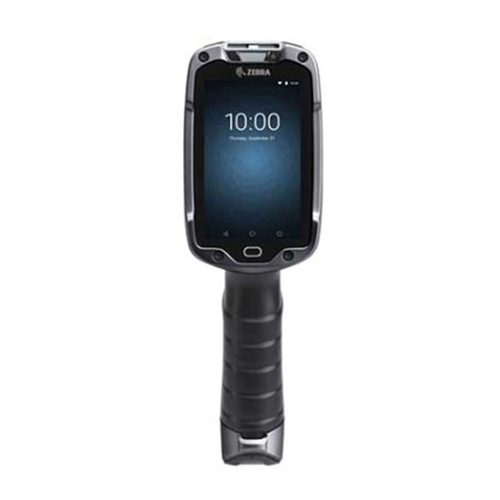

Zebra TC8300 Touch Computer

TC8000, the world’s most revolutionary enterprise touch computer design, and made it better. You get the same innovative ergonomic design that minimizes motion to deliver a 14 percent boost in worker productivity. We added the ultimate in processing power and memory to give your workers the lightning-fast application performance they expect. The latest in WiFi and Bluetooth technology provides your workers with the fastest and most dependable wireless device and peripheral connections, maximizing availability — and value. Comprehensive data capture options let you capture it all — barcodes, direct part marks, entire forms and more. And when it comes to Android, the TC8300 simplifies every aspect of deploying Android in your warehouse — including migration and security as well as control over updates and Google Mobile Services.

Add to Enquiry
Download PDF
Specification
Physical Characteristics
Dimensions: 9.17 in. L x 2.99 in. W x 2.52 in. D
233 mm L x 76 mm W x 64 mm D
Weight : Standard: 17.2 oz./490 g; Premium: 17.6 oz./500 g
Display: 800 x 480 pixels; 4.0 in. diagonal; transflective LCD
display; 16.7 Million (24-bit) color support; 400 NITs
Touch Panel: Multi-touch projected capacitive; fingertip (bare or
gloved) input; conductive stylus supported (sold
separately); Corning® Gorilla® Glass
Keypad Options: On-screen keypad
Notifications: Audible tone, multi-color LEDs, vibration
Audio: Dual speakers, Bluetooth wireless headset support
Performance Characteristics
CPU Qualcomm Snapdragon 660octa-core 2.2GHz
Operating System Android 11; upgradeable to Android 14
Memory Base, Condensation Resistant, DPM* and Package 1 models: 4GB RAM/32 GB Flash pSLC Package 2 models*: 8 GB RAM/128 GB 3D TLC
Flash (* Available Q3 2019)
Storage SDXC compliant micro SD card slot
Camera 13 MP rear facing autofocus, f/2.4 aperture (optional)
User Environment
Operating temp. -4° F to 122° F/-20° C to 50° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5% to 95% non-condensing
Drop specs Multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G ; multiple 6 ft./1.8 m drop to concrete across full operating temperature range
Tumble Specs 2,000 3.28 ft./1 m tumbles
Sealing IP65
Electrostatic Discharge (ESD) ±20kVdc air discharge; ±10kVdc direct discharge; ±10kVdc indirect discharge
Communications
Radio IEEE802.11a/b/g/n/ac/d/h/i/r/k/w;2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels Chan 36 – 165 (5180 – 5825 MHz); Chan 1 – 13 (2412 – 2472 MHz); Actual operating channels/frequencies depend on regulatory rules and certification agency
Security & Encryption WEP, WPA – TKIP, WPA2- TKIP, WPA2-TKIP AES EAP TTLS, PAP, MSCHAP, MSCHAP v2, PEAPv0-MSCHAPv2, PEAPv1- EAP-GTC, EAP-TLS, EAP-FAST, LEAP, FIPS 140-2 Level 1: Data in Motion and Data at Rest
Certifications WFA (802.11n, WMM-PS, 802.11ac, PMF, WMM-AC, Voice Enterprise, WiFi Direct and WPS 2.0)
Bluetooth Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)
NFC Tap to Pair, ISO 14443 Type A and B, Felica and ISO 15693 cards, P2P mode and Card Emulation via Host (HCE) support (optional)
