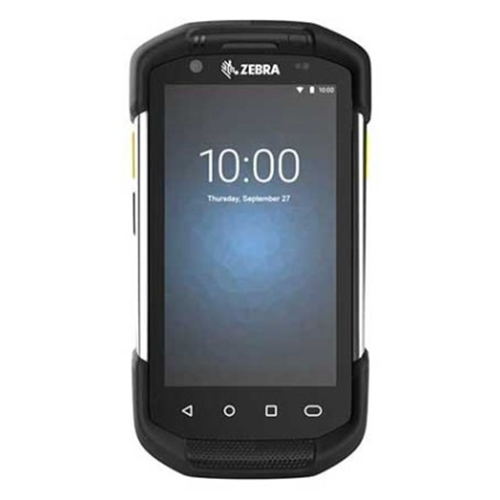

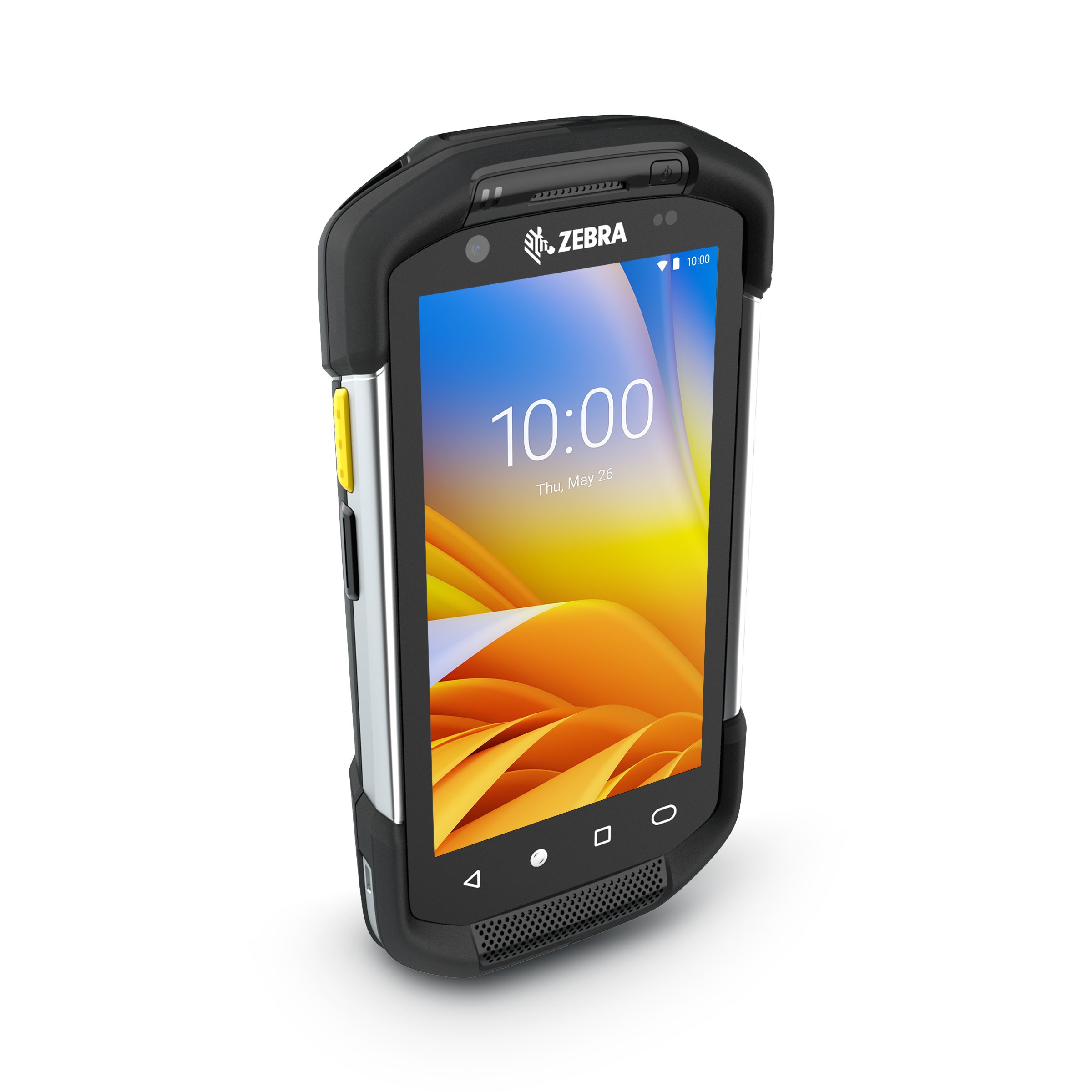

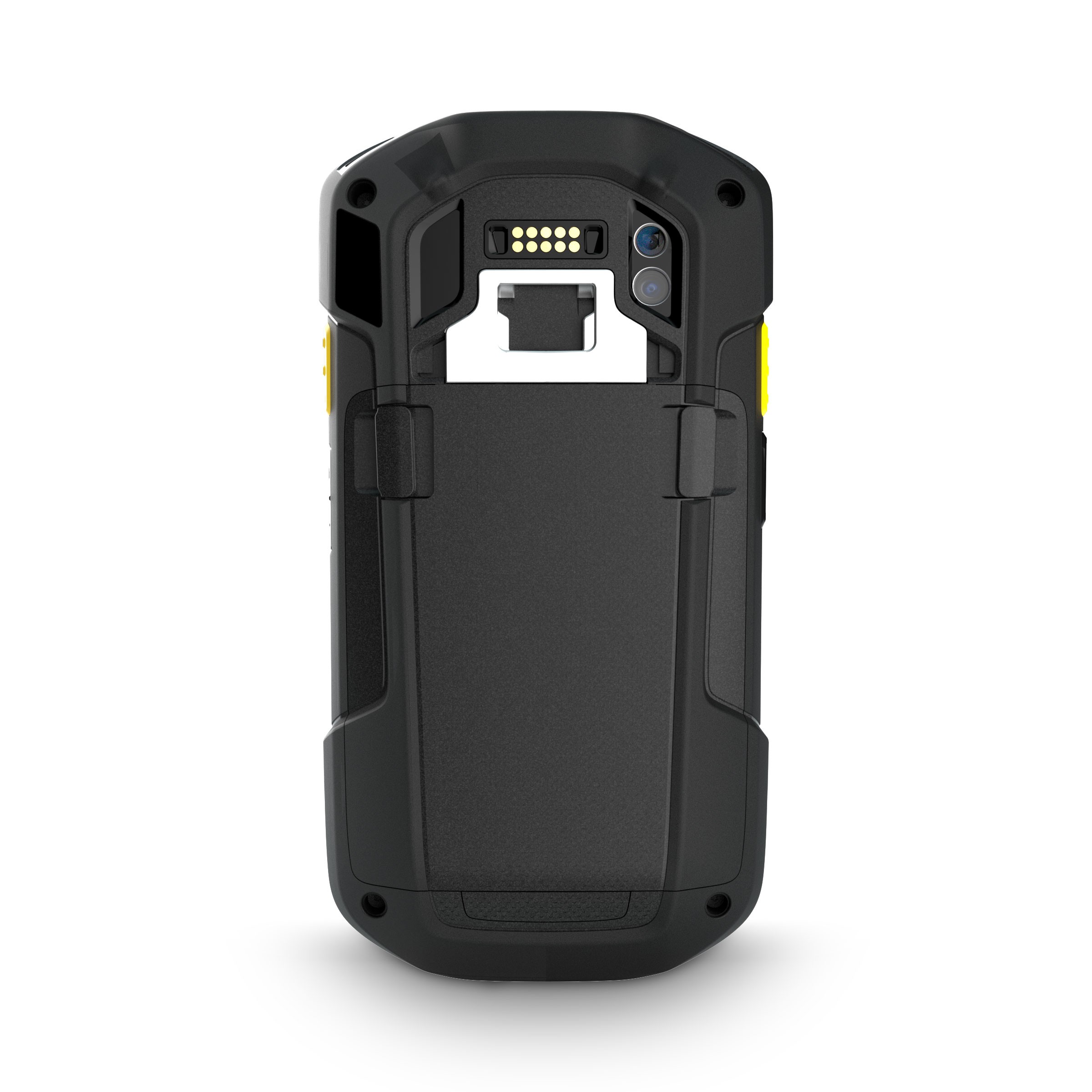

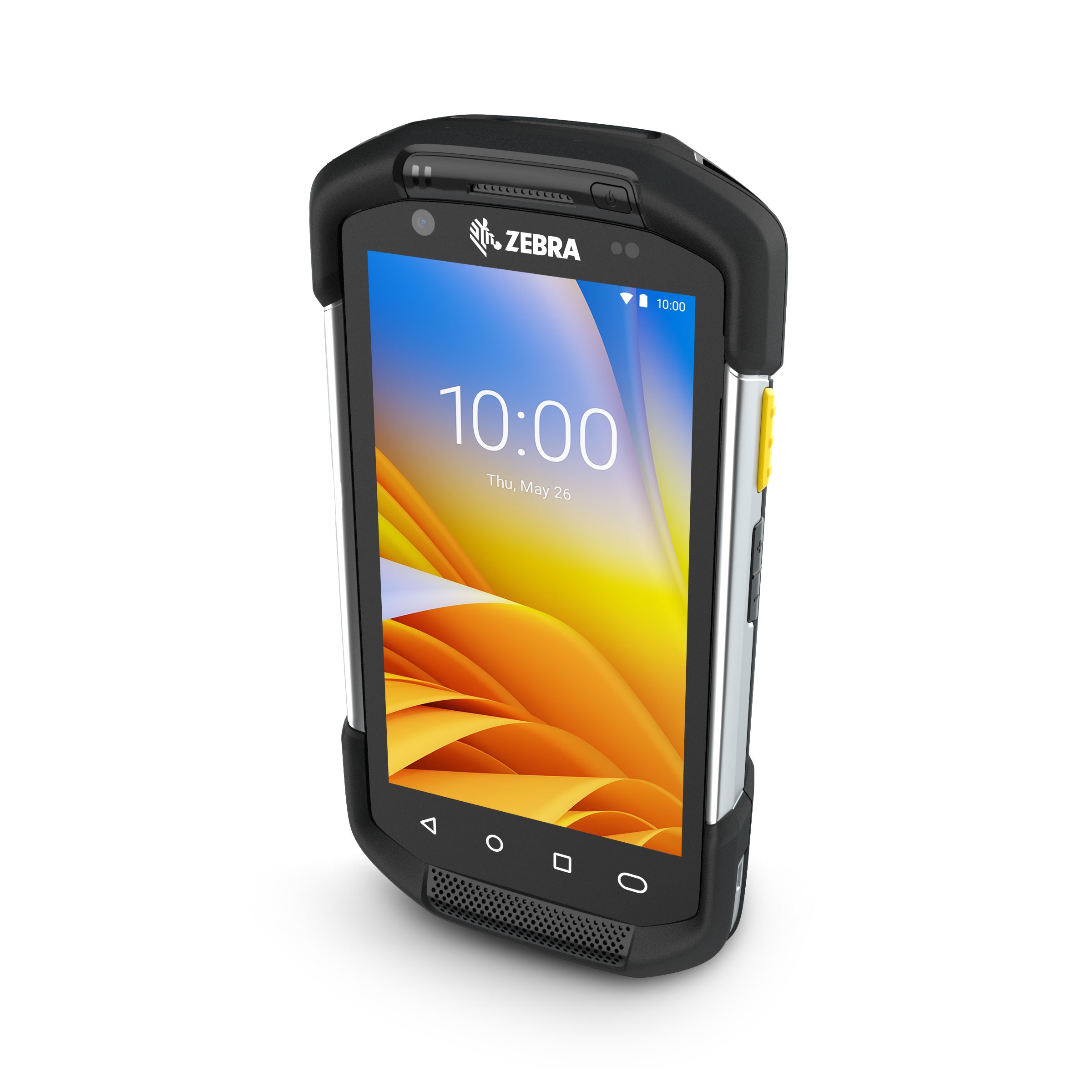

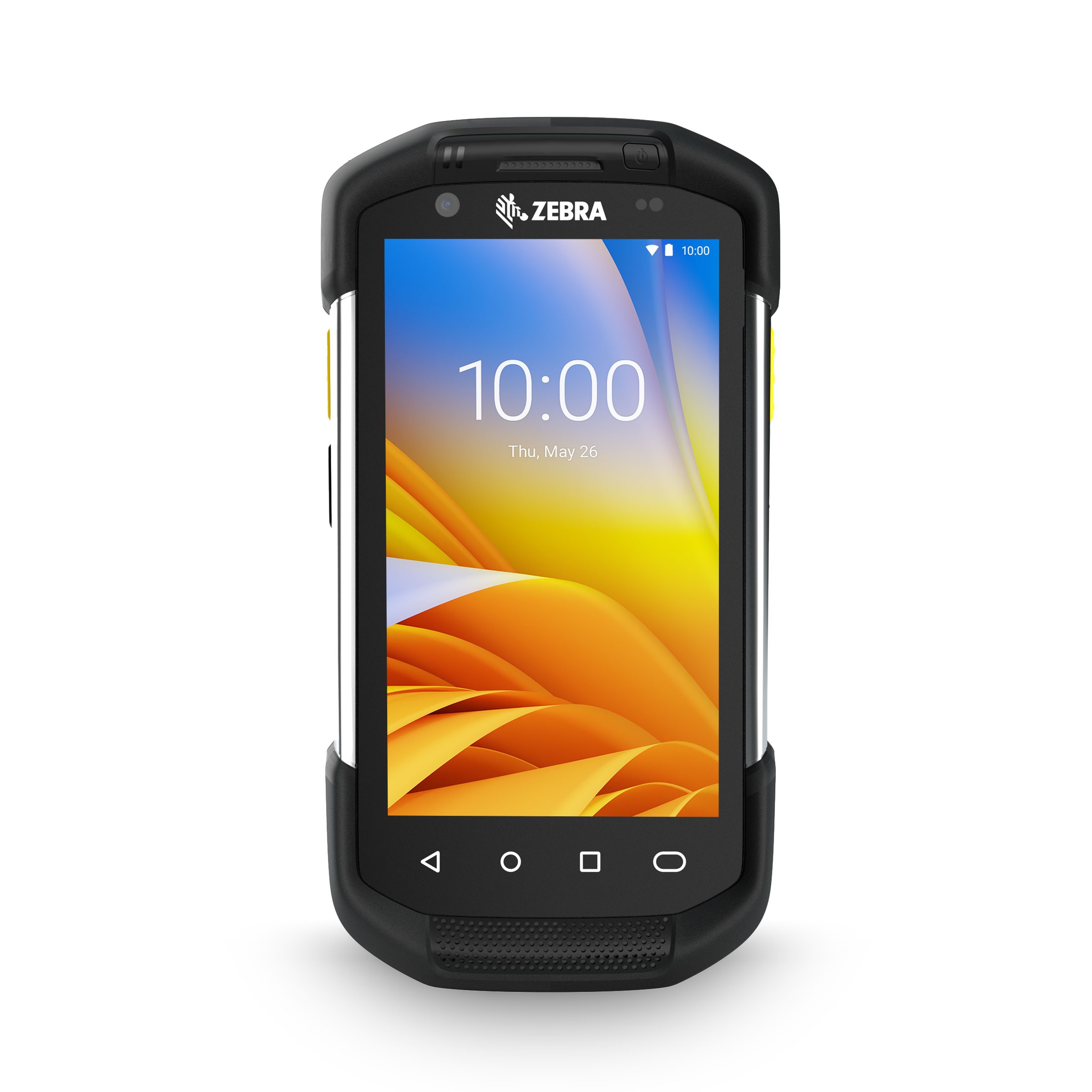

Zebra TC72 and TC77 Touch Computers

The TC72 and TC77 Android Touch Computers builds on the highly successful TC7 Series family to create the ultimate ultra-rugged all-touch computer for all workers inside and outside the four walls a smartphone experience for maximum simplicity, construction designed to withstand years of the toughest everyday use and abuse, and a new platform offering more capabilities than any other device in this class. The TC72 and TC77 — for a real competitive edge at the edge of your business, delivered.

Download PDF
Specification
Physical Characteristics
Dimensions: 6.3 in. L x 3.3 in. W x 1.1 in. D 161 mm L x 84 mm W x 28 mm D
Weight : 13.3 oz./376 g
Display: 4.7 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Touch Panel: Dual mode capacitive touch with stylus, finger or gloved fingertip input (conductive stylus sold separately); Screen Protector and Rain modes; Corning Gorilla Glass
Backlight: LED Backlight
Keypad Options: On-screen keypad and Enterprise Keyboard
Expansion Slot: User accessible MicroSD with 32 GB SDHC and up to 256 GB SDXC
SIM: TC77 only: 2 Nano SIM slots
(Dual SIM, Dual Stand-by – EU Only)
Notifications: Audible tone; multi-color LEDs; vibration
Audio: Three microphone support with noise cancellation; vibrate alert; speaker; Bluetooth wireless headset support, high quality speaker phone; PTT headset support; cellular circuit switch
Performance Characteristics
CPU Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System TC72: Android 11; upgradeable to Android 14
TC77: Android 11; upgradeable to Android 14
Memory 4 GB RAM/32 GB Flash pSLC
Camera Front — 5MP fixed focus
Rear — 13 MP autofocus; f/2.4 aperture; flash LED generates balanced white light; supports Torch mode; 4K video with image stabilization
Camera supports barcode scanning
User Environment
Operating temp. -4° F to 122° F/-20° C to 50° C
Storage Temp. -40° F to 158° F/-40° C to 70° C
Humidity 5% to 90% non-condensing
Drop specs Multiple 6 ft./1.8 m drop to concrete across full operating temperature range, multiple 8 ft./2.4 m drop to concrete at room temperature per MIL-STD 810G
Tumble Specs 2,000 3.2 ft./1.0 m tumbles; meets and exceeds IEC tumble specifications
Sealing IP65 and IP68 per applicable IEC sealing specifications
Electrostatic Discharge (ESD) +/-15kVdc air discharge; +/-8kVdc direct discharge; +/-8kVdc indirect discharge
Communications
TC77 Only: Radio Frequency Band Supports VoLTE , Carrier Aggregation up to 3DL CA
AT&T FirstNet Ready certification Verizon PNTM certification
LTE FDD: 700/800/850/900/1800/1900/ AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2, 25/4,66/1/7);
LTE TDD: 1900/2300/2500 (39/40/41,38);
UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);
GSM/GPRS/EDGE: 850/900/1800/1900
GPS TC77 only: Autonomous, Assisted GPS (A-GPS); Navstar; GLONASS; Gallileo; BeiDou
Wireless Lan Radio : IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO
Data Rates :
– 5GHz: 802.11a/n/ac — up to 866.7 Mbps
– 2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels :
– Channel 1-13 (2412-2472 MHz); Channel 36-165 (5180-5825 MHz)
– Channel Bandwidth: 20, 40, 80 MHz
– Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security & Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES)
EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD
Certifications WFA (802.11n, WMM-PS, 801.11ac, PMF)
Multimedia Wi-Fi Multimedia™ (WMM) and WMM-PS
Wireless PAN Class 2, Bluetooth v5.0, Bluetooth Low Energy (BLE)
NFC ISO 14443 Type A and B; F; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host
SAM support for Calypso, Felica and Mifare technology TC77 only: Dual SAM support on TC77 SAM SKU
