Zebra

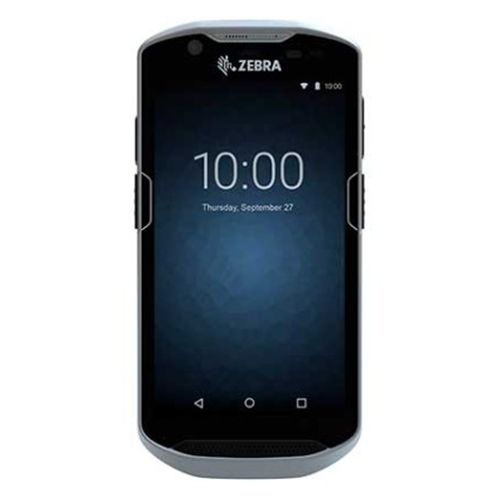

Zebra TC52 and TC57 Touch Computers

The TC52/TC57 Touch Computers build on the highly successful TC51/TC56, adding a new platform and new capabilities to deliver the ultimate in enterprise-class touch computing. You get the ultimate user experience — the simplicity of Android with all the business features workers need to maximize productivity and minimize process cycle times. You get the ultimate technology advancements on a cutting edge platform, maximizing the benefits of mobility today, with the future proofing you need to serve your business tomorrow. You get the ultimate collection of value-add apps, Mobility DNA, with four new complimentary solutions that deliver unparalleled functionality — including the best possible WiFi performance, centralized control of the device update process, control over access to Google Mobile Services (GMS) and more. And optional Visibility Services offer the ultimate in device management capabilities to maximize device value.

Download PDF
Specification
Physical Characteristics
Dimensions: 6.1 in. L x 2.9 in. W x 0.73 in. H
Weight : 8.8 oz./249 g with battery
Display: 5.0 in. High Definition (1280 x 720); exceptionally bright, outdoor viewable; optically bonded to touch panel
Touch Panel: Dual mode capacitive touch with stylus or bare
Backlight: LED Backlight
Keypad Options: On-screen keypad and enterprise keyboard
Expansion Slot: User accessible MicroSD up to 32GB SDHC and up to 256 GB SDXC
Notifications: Audible tone; multi-color LEDs; vibration
Voice & Audio: Three microphones with noise cancellation; vibrate alert; Front facing speaker; Bluetooth wireless headset support; High quality speaker phone; PTT headset support; cellular circuit switch voice; HD Voice; and SWB & FB audio
Performance Characteristics
CPU Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System TC52: Android 11; upgradeable to Android 14
TC57: Android 11; upgradeable to Android 14
Memory 4GB RAM/32GB Flash
Camera Front — 5 MP; f/2.0 aperture
Rear — 13 MP autofocus; f/2.2 aperture; flash LED generates balanced white light; supports Torch mode
User Environment
Operating temp. -4°F to 122°F/-20°C to 50°C
Storage Temp. -40°F to 158°F/-40°C to 70°C
Humidity 5% to 95% non-condensing
Drop specs Multiple 4 ft./1.2 m to tile over concrete over -10°C to 50°C (14°F to 122°F)
Multiple 6ft. drops to concrete with the rugged boot accessory per MIL STD 810 G
Tumble Specs 500 1.6 ft./0.5 m tumbles, meets or exceeds IEC tumble specification
Sealing IP68 & IP65 per applicable IEC tumble spec
Electrostatic Discharge (ESD) +/- 15kv air discharge; +/- 8kv direct discharge; +/- 8kv indirect discharge
Communications
Radio TC52: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 2×2 MU-MIMO
TC57: IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v3/w; Wi-Fi™ certified; IPv4, IPv6, 5GHz 2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132, 136,14 0,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.
Security & Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP, and AES); WPA/WPA2 Enterprise (TKIP and AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP.EAP-PWD
NFC ISO 14443 Type A and B; FeliCa and ISO 15693 cards; P2P mode and Card Emulation via Host.
TC57 Only: Card Emulation via Host and UICC
Radio Frequency Band Supports VoLTE , Carrier Aggregation up to 3DL CA
AT&T FirstNet Ready certification
Verizon PNTM certification
LTE FDD: 700/800/850/900/1800/1900/AWS/2100/2600 (28,13,14,12,17/19,20/5,26/8/3/2,25/4,66/1/7);
LTE TDD: 1900/2300/2500 (39/40/41,38);
UMTS/HSPA/HSPA+: 850/900/AWS/1900/2100 (5/8/4/2/1);
GSM/GPRS/EDGE: 850/900/1800/1900
GPS TC57 only: Autonomous, Concurrent GPS; GLONASS; Gallileo; BeiDou, and A-GPS.
Supports IZAT™ XTRA
