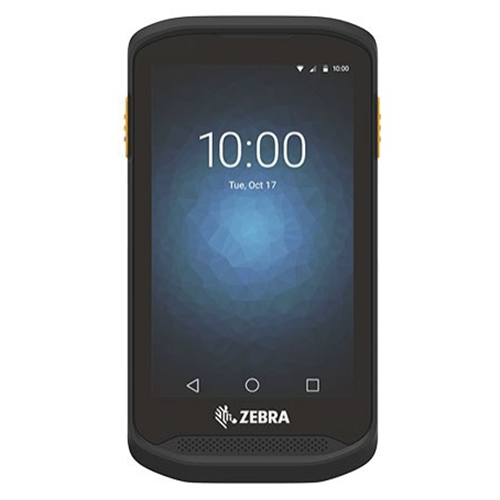

Zebra TC21 and TC 26 Mobile Computer

Considering low-cost mobile phones for your workers? Step up to the business-class durable TC21/TC26 Touch Computers — without stepping up in price. Choose the connectivity your workers need – the WiFi-only TC21 or the WiFi/cellular TC26. Then choose the features that will allow your workers to improve task accuracy and on-the-job efficiency. And you can protect it all with the affordable optional Zebra OneCare™ SV support plan, which covers normal wear and tear and much more.

Download PDF
Physical Characteristics
Dimensions: Standard battery : 6.22 in. L x 3.11 in. W x 0.54 in. D
Extended battery : 6.22 in. L x 3.11 in. W x 0.68 in. D
Weight : 8.32 oz./236 g with standard battery; 236 g with extended battery
Display: 5.0 in. High Definition (1280 x 720); Corning® Gorilla® Glass
Touch Panel: Capacitive Touch Panel; multi-touch
Backlight: LED Backlight
Keypad: On-screen keypad
Expansion Slot: One 128 GB micro SD slot
SIM: 1 Nano SIM slot; optional eSIM (TC26 only)
Notifications: Audible tone; multi-color LEDs; vibration
Audio: Speaker – 1 Watt
Voice support (Internal speaker/receiver and microphones)


Performance Characteristics
CPU Qualcomm Snapdragon™ 660 octa-core, 1.8 GHz
Operating System TC21: Android 11; upgradeable to Android 14
TC26: Android 11; upgradeable to Android 14
Memory 4 GB RAM/64 GB Flash memory; 3 GB RAM/32 GB Flash memory
User Environment
Operating temp. 14°F to 122°F/-10°C to 50°C
Storage Temp. -30°F to 158°F/-30°C to 70°C
Humidity 5% to 95% non-condensing
Drop specs 4 ft./1.2 m drop to concrete per MIL-STD 810G across operating temperature
Tumble Specs 5300 tumbles, 1.6 ft./0.5 m
Sealing IP67
Electrostatic Discharge (ESD) +/-15 kV air discharge, +/-8 kV direct discharge; +/-8 kV indirect discharge
Radio TC26 Rest of World:

GSM: 850/900/1800/1900
UMTS: B1/B2/B3/B4/B5/B8/B9/B19
LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B19/B20/B28
LTE-TDD: B38/B40/B41
LTE: Category 6

WLAN Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/v/w; Wi-Fi™ certified; IPv4, IPv6, 1×1 MU-MIMO
Data Rates 2.4 GHz: 802.11b/g/n — 20MHz, 40MHz — up to 150 Mbps
5 GHz: 802.11a/g/n/ac – 20MHz, 40MHz, 80MHz – up to 433 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz): 1,2,3,4,5,6,7,8,9,10,11,12,13
Channel 36-165 (5180-5825 MHz): 36,40,44,48,52 56,60,64,100,104,108,112,116,120,124,128,132, 136,14 0,144,149,153,157,161,165
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency.
Security & Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA3 Personal (SAE); WPA/WPA2 Enterprise (TKIP and AES); WPA3 Enterprise (AES) — EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC, LEAP and EAP-PWD; WPA Enterprise 192-bit Mode (GCMP-256) – EAP-TLS; Enhanced Open (OWE)
Wireless PAN Bluetooth 5.0 BLE, Class 2
GPS GPS with A-GPS: Glonass; BeiDou; Galileo – TC26 only
