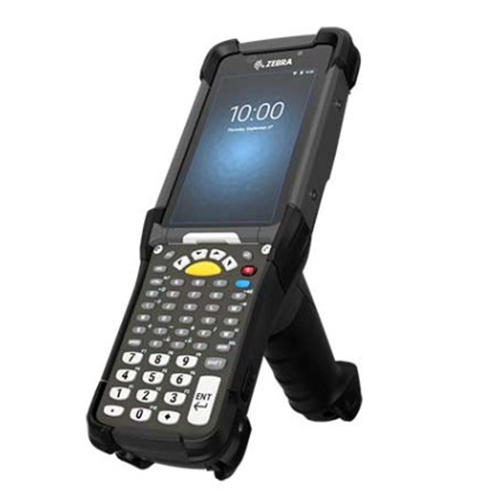

Zebra MC9300 Mobile Computer

Every day, over three million workers use an MC9000 Series mobile computer to streamline processes in warehouses and manufacturing plants all over the world. But now you need to handle and ship more orders every day, faster than ever. Introducing the mobile computer that can get it done, the MC9300 — the next evolution of the world’s best-selling and most trusted enterprise mobile computer. Your workers get the ultimate in simplicity with Android, an operating system your workers already know well, a larger advanced touch display and more. Handle all of your applications with the ultimate in processing power and memory. New data capture capabilities include optional front and back cameras, extraordinary scan ranges and superior direct part mark (DPM) capture. The new battery runs twice as long as the MC9200 on a single charge. It’s the most rugged MC9000 Series ever created, ready to outlast virtually every device in its class in any environment — including the freezer. New Mobility DNA solutions make device, OS security and battery management easy, while delivering better-than-ever robust wireless connections. And since you can run your existing TE apps right out of the box, migrating to Android couldn’t be easier.

Download PDF
Specification
Physical Characteristics
Dimensions: 9.4 in. L x 3.5 in. W x 7.4 in. H
240 mm L x 88 mm W x 189 mm H
Weight: 26.9 oz./765g with battery
Display: 4.3” WVGA (800 x 480), color display; Corning Gorilla Glass
Touch Panel: Dual mode capacitive touch with finger, gloved finger or stylus input (conductive stylus sold separately); screen protector (sold separately); Corning Gorilla Glass with air gap (standard model) or optically bonded (freezer model).
Backlight: LED backlit display
Power: Rechargeable Li-Ion: 3.6V, 7000mAh, (Freezer Capacity battery — 5000mAh)
Both batteries offer: PowerPrecision+ with improved battery technology for longer cycle times and real-time visibility into battery metrics for better battery management, fast charging (up to 2.4A); hot swap battery backup with temporary session persistence
Expansion Slot: User accessible MicroSD with 32GB SDHC and up to 256GB SDXC
Network Connections: USB 2.0 High Speed (Host & Client), WLAN and WPAN (Bluetooth)
Voice & Audio: Speaker, Microphone, PTT Voice (Internal Speaker and Bluetooth Wireless Headset Support).
Keypad Options: Backlit, Field replaceable keypads; 58 Key Alpha- Numeric4, 53 Key Alpha-Numeric STD, 53 Key Terminal Emulation (5250 and VT), 43 Key, 34 Key Numeric/Function, 29 Key Numeric/Calculation4.
Notifications: Audible tone; Multi-color LED bar (between keyboard & display), haptic feedback
Performance Characteristics
CPU Qualcomm Snapdragon™ 660 octa-core, 2.2 GHz
Operating System Android 8.1 Oreo with Zebra’s Restricted Mode for control over GMS and other services; upgradeable through Android R
Memory 4 GB RAM/32 GB Flash pSLC
User Environment
Operating temp. Standard: -4°F to 122°F/-20°C to +50°C,
Freezer: -22°F to 122°F/-30°C to +50°C
Storage Temp. -40° C to 70° C / -40° F to 158° F
Humidity Standard: 5% to 95%, non-condensing;
Freezer: 5% to 95%, condensing (Condensation resistant model with integrated exit window heater)
Sealing IP67 and IP65 per applicable IEC sealing specifications
Drop specs Standard: 8 ft. (2.4m) drops to concrete across temperature per MIL-STD-810G.
Freezer: 7 ft. (2.1m) drops to concrete across temperature per MIL-STD-810G.
Tumble Specs 4,000 3.3 ft. (1m) tumbles; meets and exceeds IEC tumble specification.
ESD ± 15kVdc air discharge; ± 8kVdc direct discharge;
± 8kVdc indirect discharge
Communications
Radio IEEE 802.11 a/b/g/n/ac/d/h/i/r/k/w; Wi-Fi certified; IPv4, IPv6, 2×2 MU-MIMO
Data Rates 5GHz: 802.11a/n/ac — up to 866.7 Mbps
2.4GHz: 802.11b/g/n — up to 300 Mbps
Operating Channels Channel 1-13 (2412-2472 MHz); Chan 36-165 (5180-5825 MHz)
Channel Bandwidth: 20, 40, 80 MHz
Actual operating channels/ frequencies and bandwidths depend on regulatory rules and certification agency
Security & Encryption WEP (40 or 104 bit); WPA/WPA2 Personal (TKIP and AES); WPA/WPA2 Enterprise (TKIP and AES) EAP-TTLS (PAP, MSCHAP, MSCHAPv2), EAP-TLS, PEAPv0-MSCHAPv2, PEAPv1-EAP-GTC and LEAP, EAP-PWD
FIPS 140-2 Level 1: Data in Motion and Data at Rest
Multimedia Wi-Fi Multimedia (WMM and WMM-PS; Including TSPEC)
Wireless PAN Bluetooth : Class 2, Bluetooth V5.0 with BR/EDR and Bluetooth Low Energy (BLE) Support
