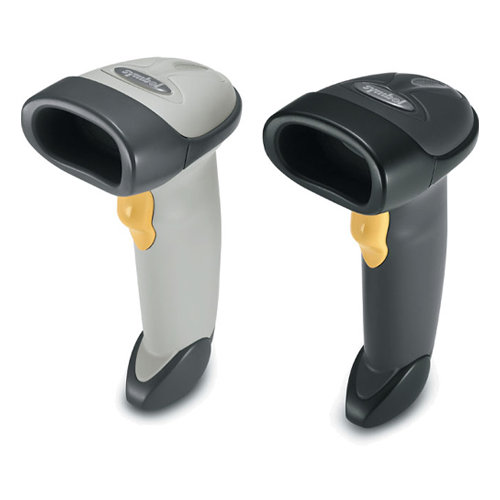

Zebra LS 2208 Laser Scanner

The LS2208 handheld scanner from Zebra offers high performance scanning at a moderate price point. From the retail point-of-sale to school book checkout, the LS2208 provides fast, reliable scanning in a durable, lightweight form factor, delivering enhanced productivity and efficiency while reducing your total cost of ownership (TCO).

With aggressive scanning capabilities and a wide working range, the LS2208 accurately captures data fast, helping employees work quickly and efficiently. And you’ll be up and running fast, because the LS2208 is easy to deploy and use, thanks to its plug-and-play installation and intuitive, user-friendly design, which requires little or no training. Plus the ergonomic, balanced form factor reduces user fatigue to maximize user comfort

Download PDF
Specification
Physical Characteristics
Dimensions: 6 in. H x 2.5 in. W x 3.34 in. D 15.2 cm H x 6.3 cm W x 8.4 cm
Weight: 5.29 oz/150 gm
Voltage and current: 5 volts +/- 10% at 130 mA typical, 175 mA max
Power Source: Host power or external power supply
Performance Characteristics
Scanner Type Bi-directional
Light Source 650 nm visible laser diode
Scan Element Frequency 50Hz
Scan Rate 100 scans per second typical
Print Contrast 20% minimum reflective difference
Roll (Tilt): 1 1 +/- 30 degrees
Pitch: 2 2 +/- 65 degrees
Skew (Yaw): 3 3 +/- 60 degrees
Decode Capability UPC/EAN, UPC/EAN with Supplementals, UPC/ EAN 128, Code 39, Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128 Full ASCII, Codabar, Interleaved 2 of 5, Discrete 2 of 5, Code 93, MSI, Code 11, IATA, GS1 DataBar (formerly RSS) variants, Chinese 2 of 5
Interfaces Supported USB, RS232, Keyboard Wedge, IBM 468x/9x
User Environment
Operating temp. 32° to 122° F/0° to 50° C
Storage temp. -40° to 158° F (-40° to 70° C)
Humidity 5% to 95% (non-condensing)
Drop specs Unit functions normally after repeated 5 ft./1.5 m drops to concrete
Ambient lighting tolerance Tolerant to typical artificial indoor and natural outdoor  (direct sunlight) lighting conditions. Fluorescent, Incandescent, Mercury Vapor, Sodium Vapor, LED4: 450 Ft Candles (4,844 Lux) Sunlight: 8000 Ft Candles (86,111 Lux)
Electrostatic
Discharge
Conforms to 15 kV air discharge and 8 kV of contact discharge
Regulatory
Electrical safety Certified to UL1950, CSA C22.2 No. 950, EN60950/IEC950
Laser safety CDRH Class II, IEC Class 2
EMI/RFI FCC Part 15 Class B, ICES-003 Class B, European Union EMC Directive, Australian SMA, Taiwan EMC, Japan VCCI/MITI/Dentori.
