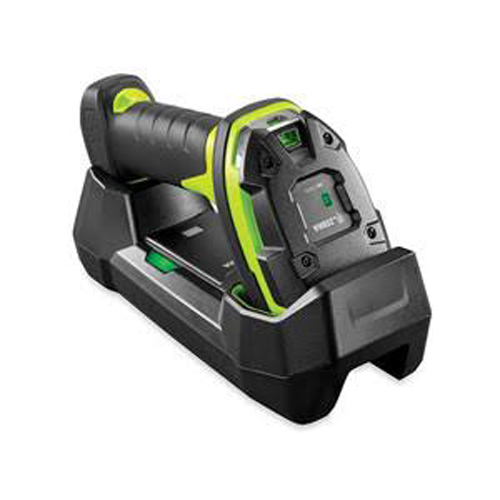

Zebra LI3678-SR Ultra-Rugged 1D Cordless Scanner

Every day, workers in your warehouse and on the manufacturing plant floor scan thousands of barcodes to ensure product quality and on-time order delivery. Their productivity depends on the quality of the scanner you put in their hands. When workers need to capture 1D barcodes at standard ranges, you can give them the best with the 1D corded LI3608-SR and cordless LI3678-SR scanner. Both models offer unmatched durability, superior scanning performance and unrivaled manageability, while delivering lightning-fast capture of any 1D barcode printed on a label in virtually any condition, or displayed on a screen. The ultra-rugged design is practically indestructible — ideal for punishing environments. The LI3608-SR/LI3678-SR couldn’t be easier and less time-consuming to deploy and manage. And when it comes to cordless technology, the LI3678-SR is loaded with Zebra-only features that put it in a class of its own, including a sealed rugged cradle, a smart battery and Zebra’s Wi-Fi Friendly Mode that prevents interference with your Wi-Fi network. Get the unstoppable performance you need to maximize workforce productivity and throughput in your operations with the LI3608-SR/LI3678-SR — only from Zebra.

Download PDF
Specification
Physical Characteristics
Dimensions 7.3 in. H x 3.0 in. W x 5.6 in. D
18.5 cm H x 7.6 cm W x 14.2 cm D
Weight 13.6 oz./386.5 g
Input Voltage
Range
Host powered: 4.5 VDC min., 5.5 VDC max.
External power supply: 11.4 VDC min., 12.6 VDC max.
Supported Host
Interfaces
USB, RS232, Keyboard Wedge
Industrial Ethernet: EtherNet/IP, Profinet, Modbus
TCP & Std TCP/IP

Battery

PowerPrecision+ 3100 mAh Li-Ion rechargeable battery

User Indicators Direct decode indicator; LEDs; beeper; vibration
Performance Characteristics
Scans per Full Charge 140,000+
Illumination Two (2) 617nm Amber LEDs
Aimer 655 nm laser
Imager Field of View 35°
Image Sensor 1,500 pixels
Minimum Print Contrast 15% minimum reflective difference
Temperature Operating: -4° F to 122° F/-20° C to 50° C
Storage: -40° F to 158° F/-40° C to 70° C
Drop / Tumble / Sealing Specification • Drop: Withstands multiple 8.0 ft/2.4 m drops to concrete at -20° C to 50° C
• Tumble: 7500 3.3 ft./1.0 m
• Sealing: IP65 and IP68 per applicable IEC sealing specifications, FLB cradle: IP65
Bluetooth Radio Bluetooth Class 1, Version 4.0 (LE), serial port (SPP) and HID profiles
Data Rate 3 Mbit/s (2.1 Mbit/s) for Classic Bluetooth
1 Mbit/s (0.27 Mbit/s) for Low Energy
Radio Range Direct line of sight in open air: Class 1: Minimum 300 ft. (100.0 m); Class 2: Minimum 30 ft. (10.0 m)
Decode Capabilities
1D Code 39, Code 128, Code 93, Codabar/NW7, Code
11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5,
GS1 DataBar, Base 32 (Italian Pharma)
