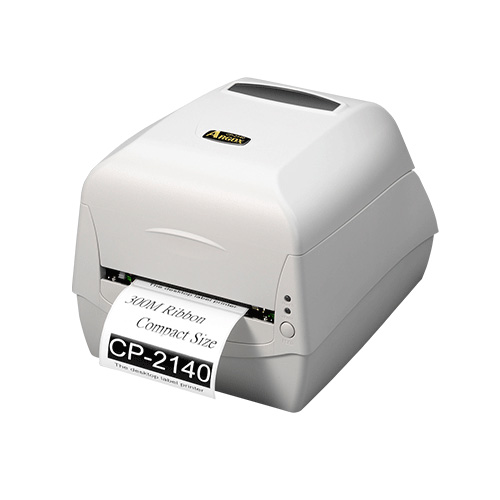

Argox CP Series Printer – 2140/2140M

The compact CP-2140 desktop printer not only saves space, it lets you install a large 300M long ribbon for bigger printing demands. Ribbons and media are easy to load, and you can select for ribbon ink-side in or ink-side out. A media sensor system delivers greater flexibility for diverse media and applications. A head-open switch initiates autocalibration for more precise printing. Multiple communication interfaces include parallel (CP-2140), RS-232, USB, and optional Ethernet(CP-2140E).



Add to Enquiry
Download PDF
Specification
Printer Specification
Memory 8MB DRAM(5MB user available)
4MB Flash ROM(2MB user available)
CPU 32 bit RISC microprocessor
Sensors Media gap & black line Reflective sensor x 1 (movable)& Transmissive sensor x 1 (Center fixed) /
Head open switch / Ribbon end sensor
Operation Interface LED indicator (Power/Ready)x 2, Button(Feed) x 1
Communication Interface Parallel, USB,
RS-232(Baud rate: 2400~115200 bps)
Emulation CP-2140, CP-2140E, CP-3140: PPLA, PPLB
CP-2140Z: PPLZ
Dimensions L 273mm x W 225mm x H 186mm
Weight 2.1kg
Power Source Universal Switching Power Supply AC Input: 100~240V, 1.8A, 50~60Hz
DC Output: 60W Max., 24V 2.4A
Operation Environment Operation Temperature: 40°F~100°F (4°C~38°C), 10% ~ 90% non-condensing,
Storage Temperature: -4°F~122°F (-20°C~50°C)
Printing Specification
Printing Method Direct Thermal / Thermal Transfer
Printing Resolution 203 dpi(8 dots/mm)
Printing Speed 2~4ips (50.8~101.6mm/s)
Printing Length Max 100”(2540mm) / Min 0.2” (5mm)
Printing Width Max 4.1”(104mm)
Fonts / Graphics / Symbologies
Fonts Internal character sets standard
5 alpha-numeric fonts from 0.049”H ~ 0.23” H (1.25mm ~ 6.0mm)
Internal fonts are expandable up to 24×24
4 direction 0° ~ 270° rotation
Soft fonts are downloadable
1D Barcodes PPLA: Code 39 (standard/with checksum digit), Code 93 Interleaved 2of 5 (standard/with checksum digit/with human readable check
digit), EAN-8, EAN-13,UPC-A, UPC-E, Postnet, Codabar, Code 128 subset A/B/C, UCC/EAN-128, UCC/EAN-128 K-MART, UCC/
EAN-128 , Random Weight, Plessey, HBIC, Telepen, FIM, UPC2, UPC5, GS1 Data Bar
PPLB: Code 39 (standard/with checksum digit),Code 93 Interleaved 2 of 5 (standard/with checksum digit/with human readable check
digit), EAN-8 (standard/2 digit add-on/5 digit add-on), EAN-13 (standard/2 digit add-on/5 digit add-on), UPC-A (standard/2 digit addon/
5digit add-on), UPC-E (standard/2 digit add-on/5 digit add-on), Postnet, Codabar, Code 128 subset A/B/C, Code 128 UCC
(Shipping Container Code), Code 128 Auto, German, Postcode, Matrix 2 of 5, UCC/EAN 128, UPC Interleaved 2 of 5, GS1 Data Bar
PPLZ􀁪Code39, UPC-A, UPC-E, Postnet, Code128 subset A/B/C, Interleave 2 of 5, Interleaved 2 of 5 with check sun, Interleaved 2
of 5 with human readable check digit, Code 93, Code 39 with check sun digit, EAN-8, Codabar, EAN-13, Plessey, GS1 Data bar
2D Barcodes PPLA/PPLB/PPLZ: MaxiCode, PDF417, Data Matrix (ECC 200 only), QR code, Composite codes
Graphics PPLA: PCX, BMP, IMG, GDI and HEX format files
PPLB: PCX, Binary raster, BMP and GDI
PPLZ: GRF, Hex and GDI
Software Specification
Software – Label editing Windows Seagull Driver, BarTender
Software – Utility Printer Utility
Font Utility
Media and Ribbon Characteristics
Media Type Roll-feed, die-cut, continuous, fan-fold, tags, ticket in thermal paper or plain paper and fabric label
Media Max Width: 4.3”(110mm)
Min Width: 1”(25.4mm)
Thickness: 0.0025”~0.01”(0.0635~0.254mm)
Max roll capacity(OD): 5”(127mm) / Core size: 1”(25.4mm)
Max roll capacity(OD): 4.5”(114.3mm) / Core size: 0.5”(12.7mm) (optional)
Media Stacker Optional
Ribbon Ribbon roll – max OD: 2.6”(67mm)
Ribbon Length: max 300m
Core size – ID: 1”(25.4mm)
Ribbon Width: 1”~4” Wax, Wax/Resin, Resin (Ribbon wound ink-side out or ink-side in available)
Optional Items

• Cutter
• Stacker
• RTC Card
• ArgoKee
