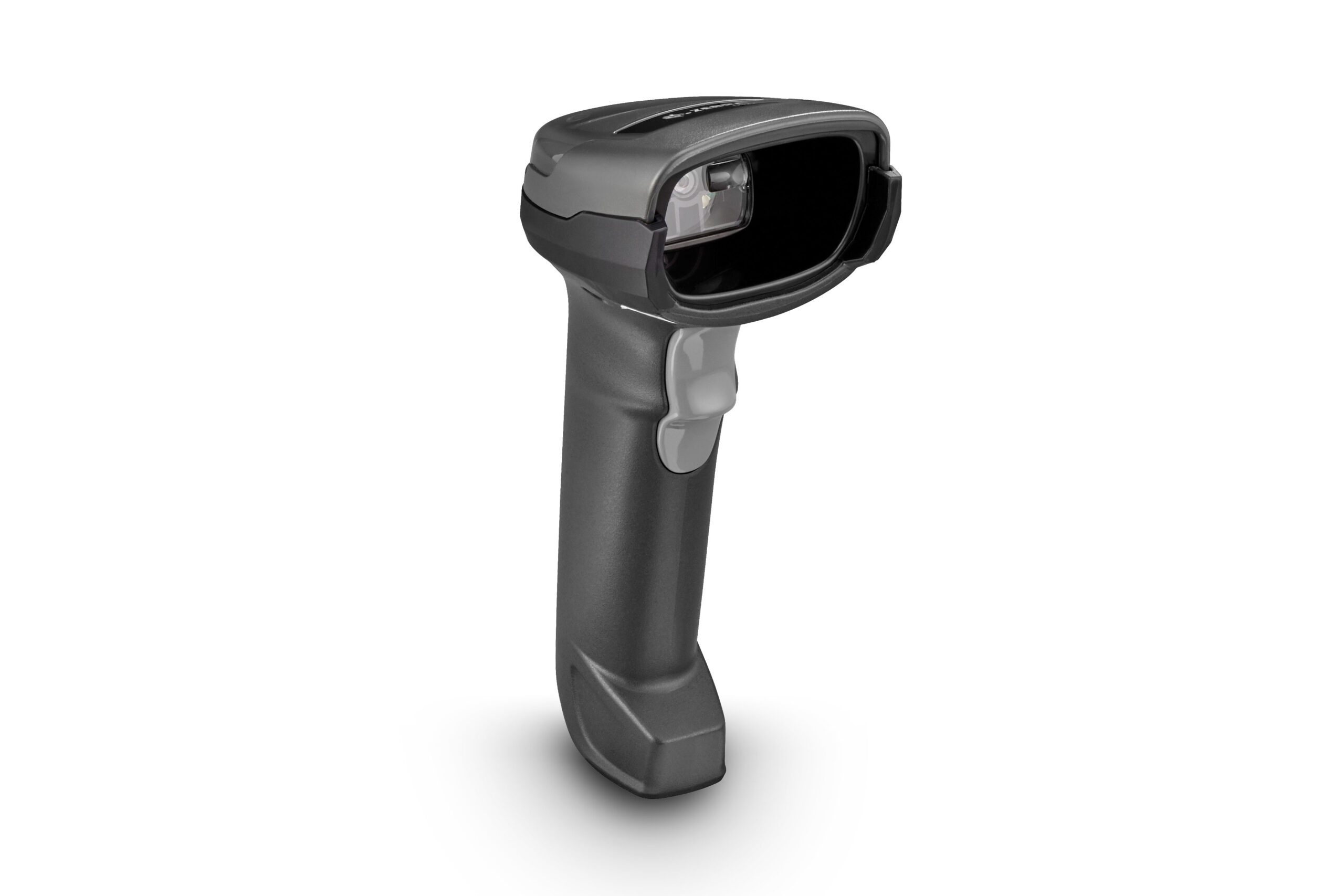

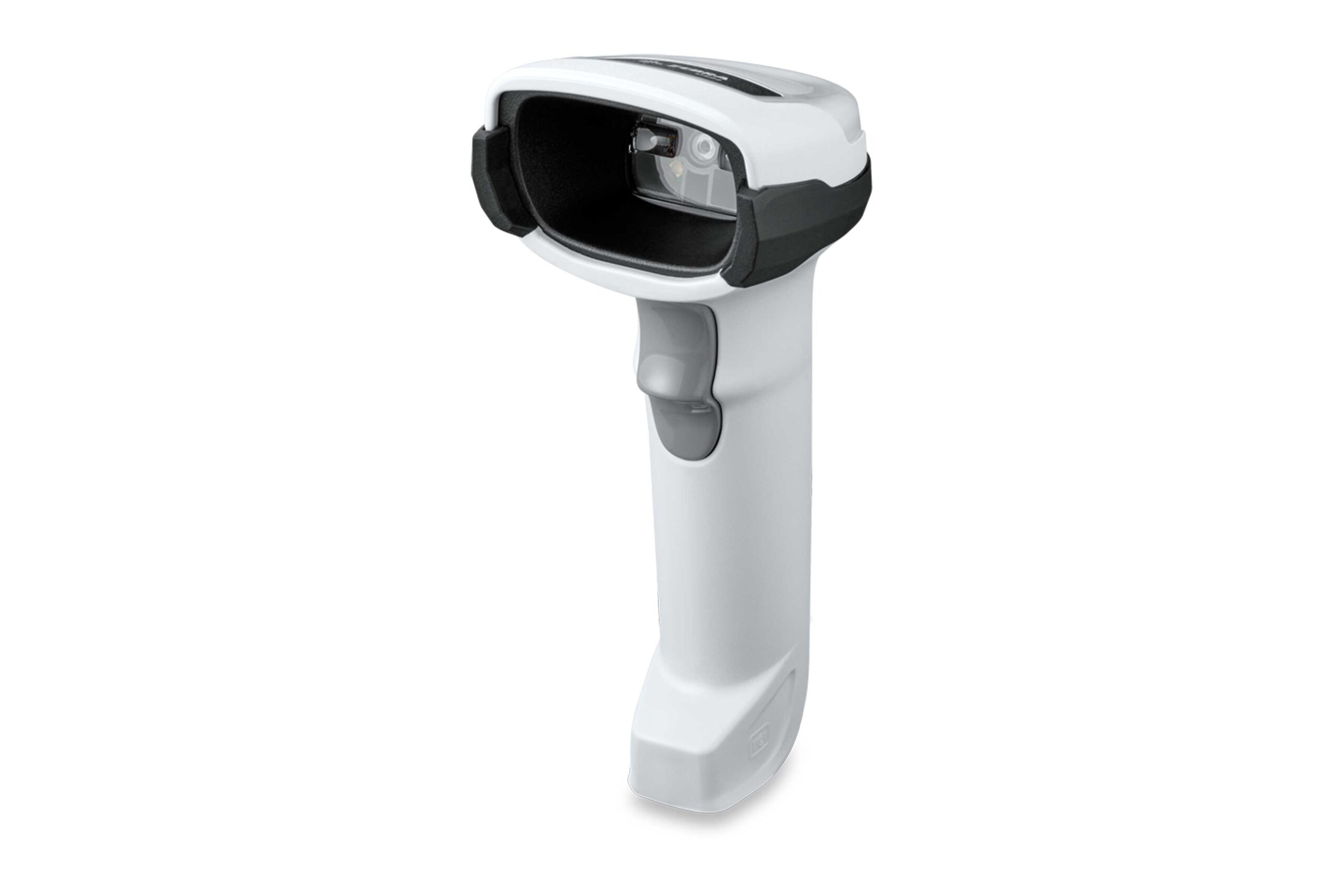

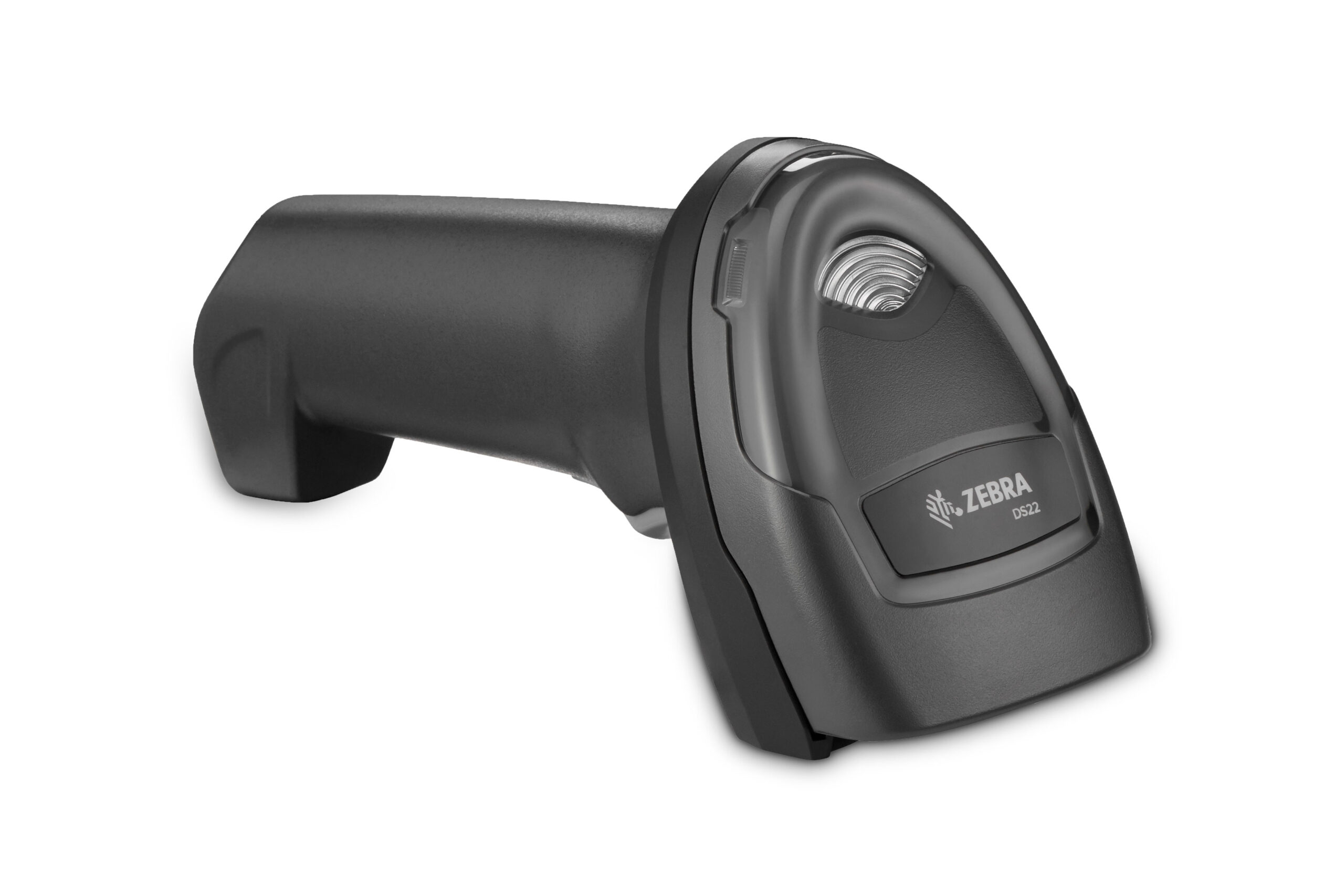

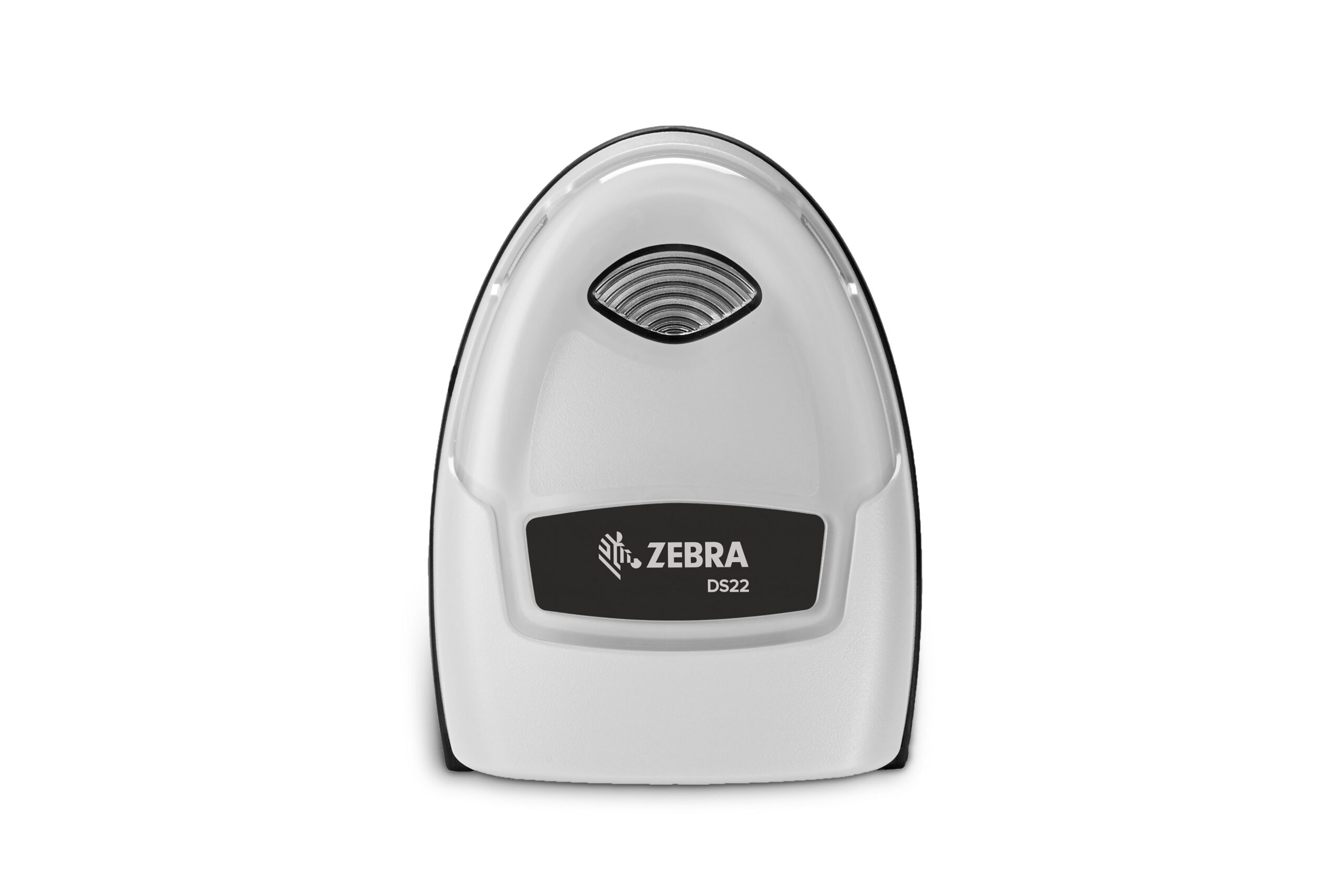

Zebra DS2278 Cordless 2D Imager

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. Your workers get best-in-class first-time, every-time scanning with point-and-shoot simplicity. You get an imager that couldn’t be easier to deploy and manage. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278.* The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Download PDF
Specification
Physical Characteristics
Dimensions Corded DS2208:
6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm. H x 6.6 cm. W x 9.9 cm. D

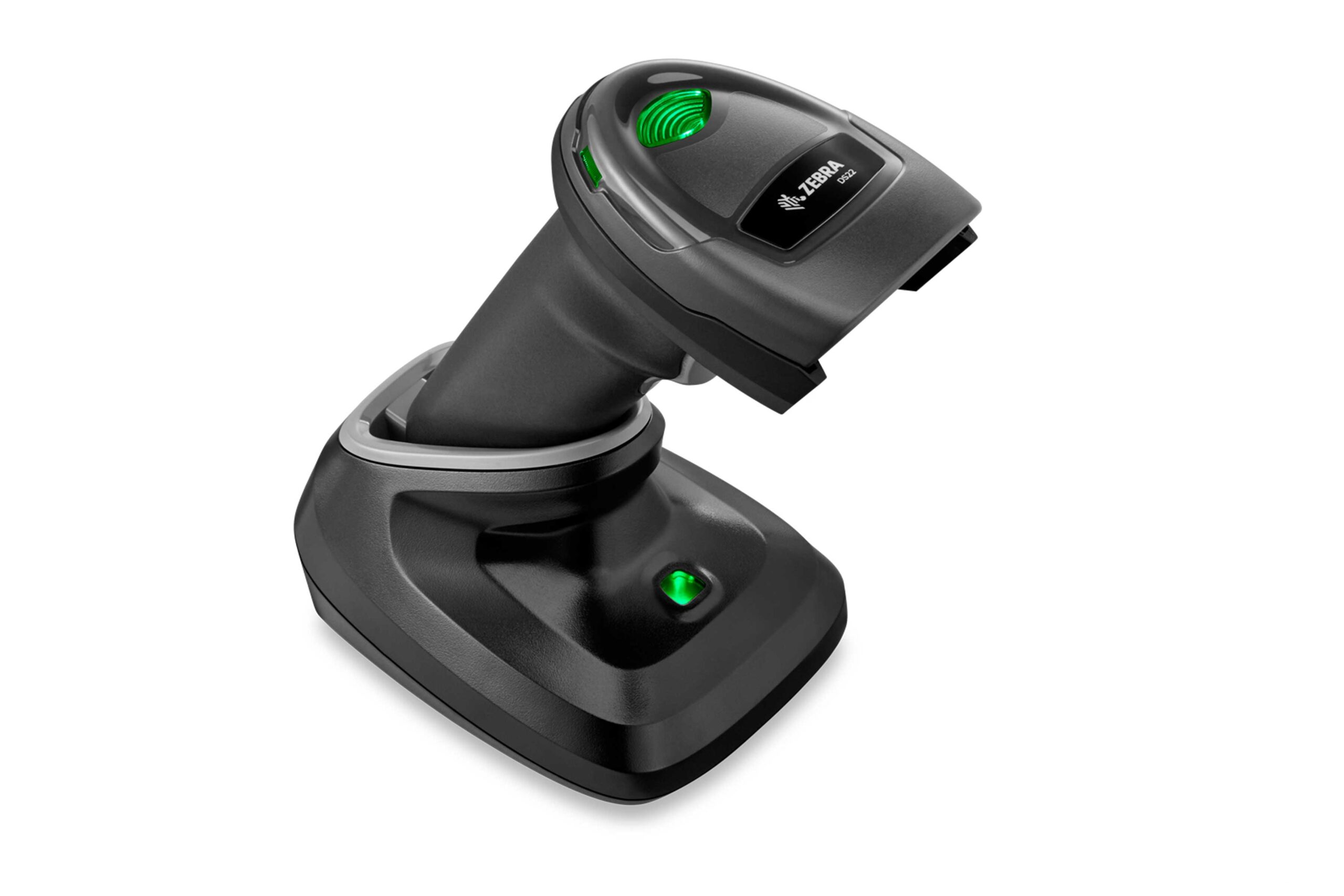

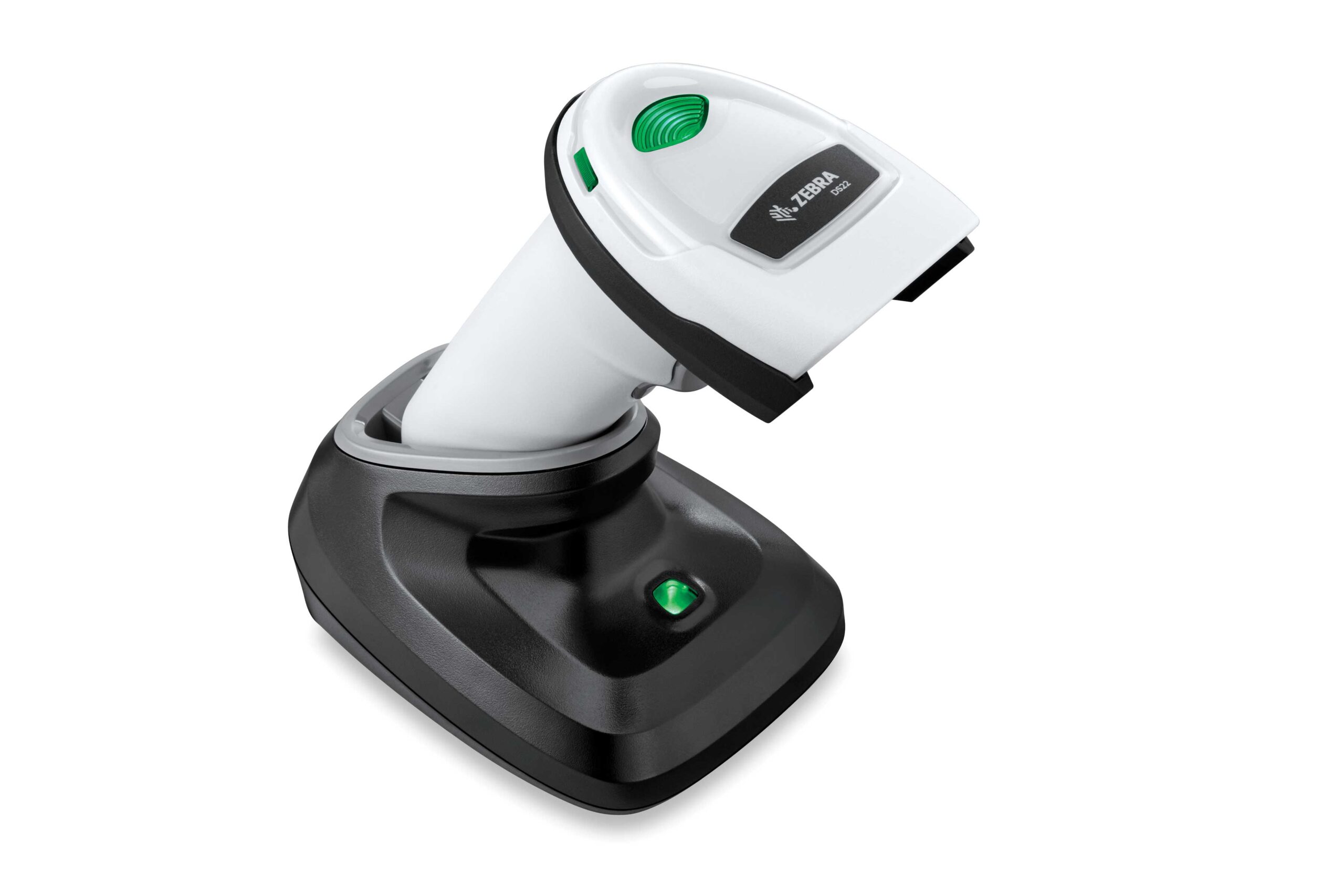

Cordless DS2278:
6.9 in. H x 2.6 in. W x 3.9 in. D
17.5 cm. H x 6.6 cm. W x 9.9 cm. D
Presentation Cradle:
2.8 in. H x 3.7 in. W x 4.8 in. D
7.1 cm. H x 9.4 cm. W x 12.2 cm. D
Weight Corded DS2208: 5.7 oz. / 161.6 g
Cordless DS2278: TBD
Presentation Cradle: TBD
Input Voltage
Range
DS2208/DS2278 and Cradle: 4.5 to 5.5 VDC Host
Powered; 4.5 to 5.5 VDC External Power Supply
Current Corded DS2208 Operating Current at Nominal
Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and
Illumination on Acquiring Image)
Corded DS2208 Standby Current (idle) at Nominal
Voltage (5.0V): 150 mA (typical). (Note: Auto-Aim On)
Presentation Cradle and Micro USB Cable: 500 mA
(typical) Standard USB; 1100 mA (typical) BC 1.2 USB
Supported Host
Interfaces
USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over
RS485
User Indicators Direct Decode Indicator; good decode LEDs; Rear view
LEDs; beeper (adjustable tone and volume)
Performance Characteristics
Motion Tolerance
(Handheld)
Up to 5 in./13 cm. per second for 13 mil UPC
Minimum Element
Resolution
Code 39 – 4.0 mil; Code 128 – 4.0 mil;
Data Matrix – 6.0 mil; QR Code – 6.7 mil
Swipe Speed
(Hands-Free)
Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light Source Aiming Pattern: Linear 624nm Amber LED
Illumination 4.25″ (108mm)
Decode Capabilities
1D Barcodes Code 39, Code 128, Code 93, Codabar/NW7, Code 11,
MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1
DataBar, Base 32 (Italian Pharma)
2D Barcodes F417, Composite Codes, TLC-39, Aztec, DataMatrix,
MaxiCode, QR Code, Micro QR, Chinese Sensible (Han
Xin), Postal Codes
