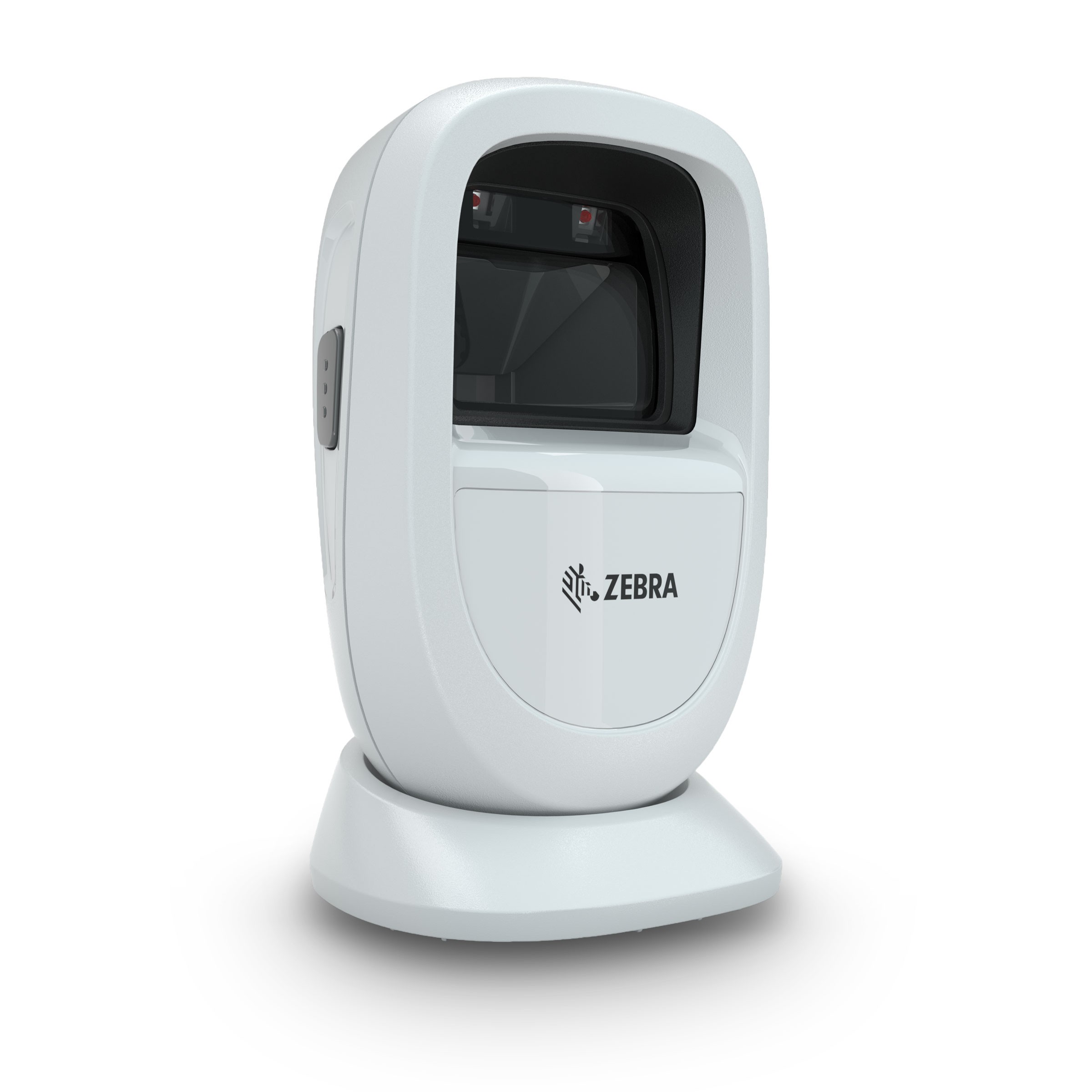

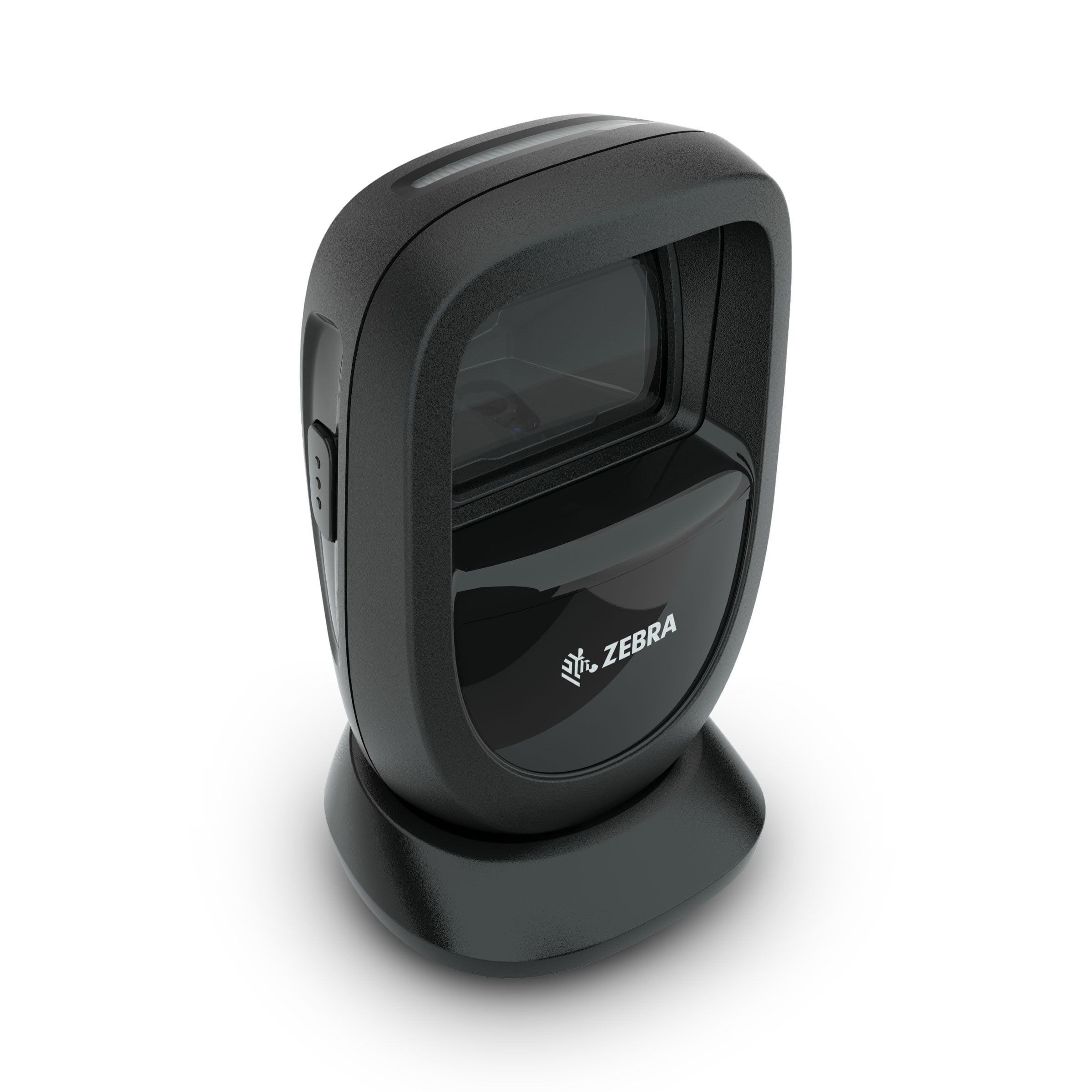

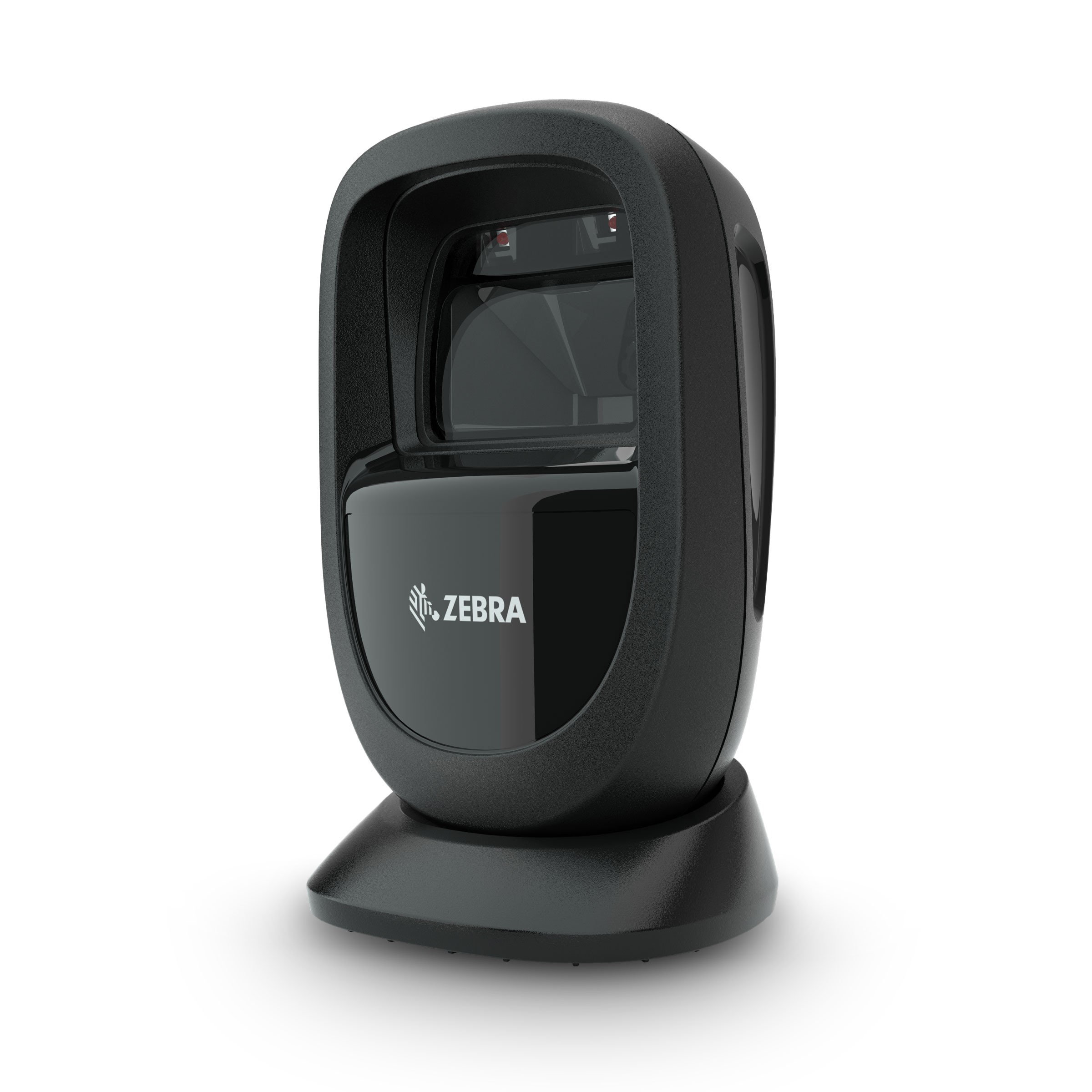

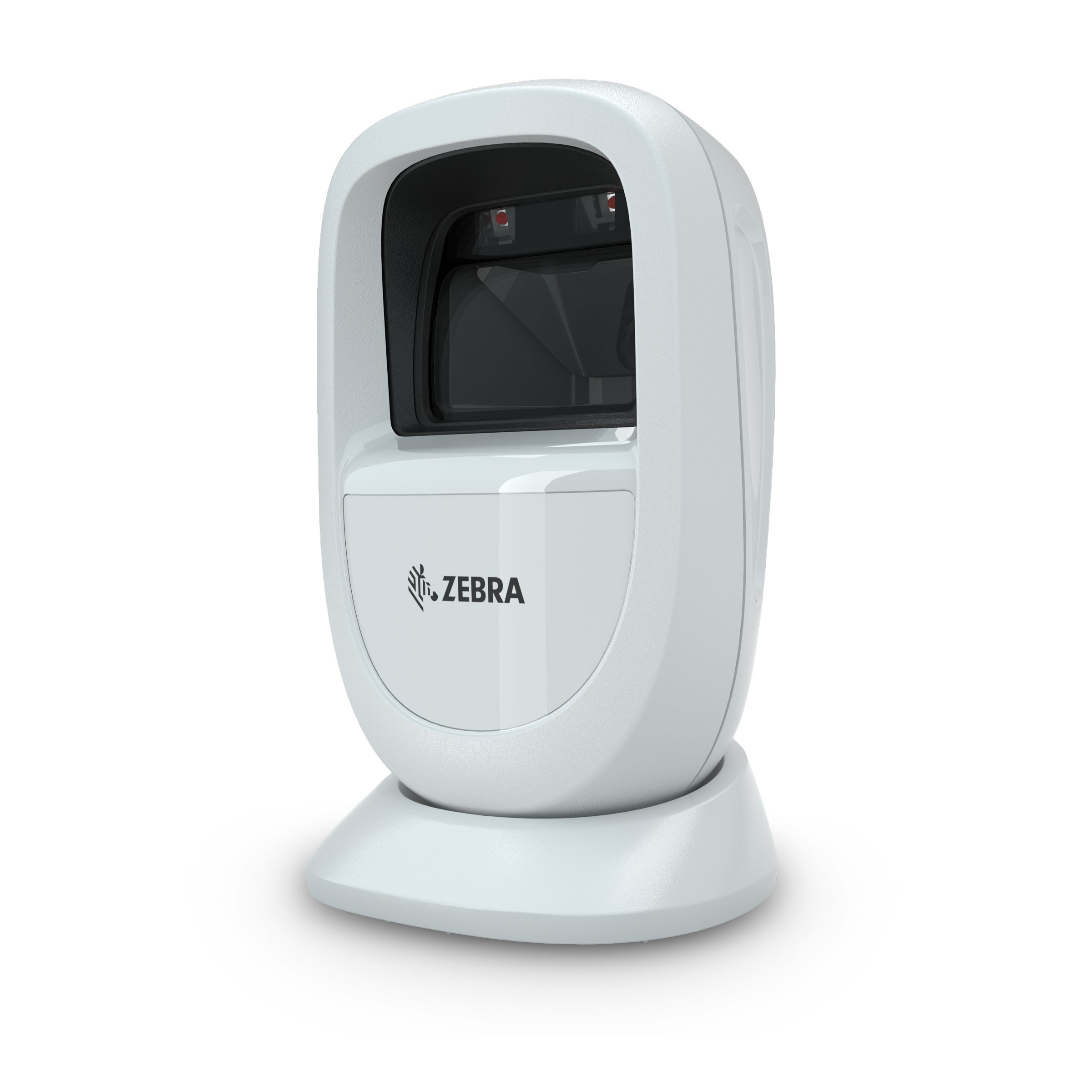

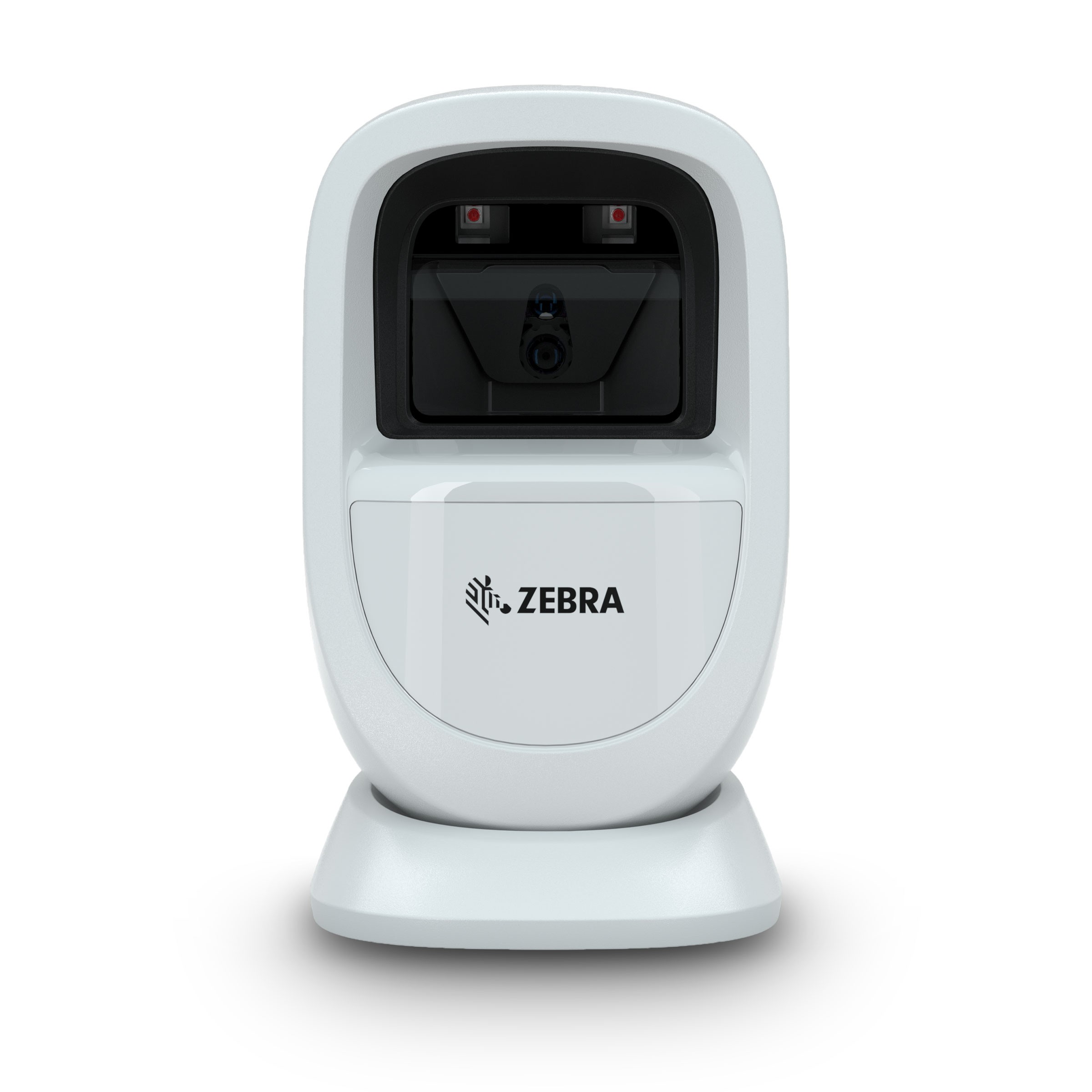

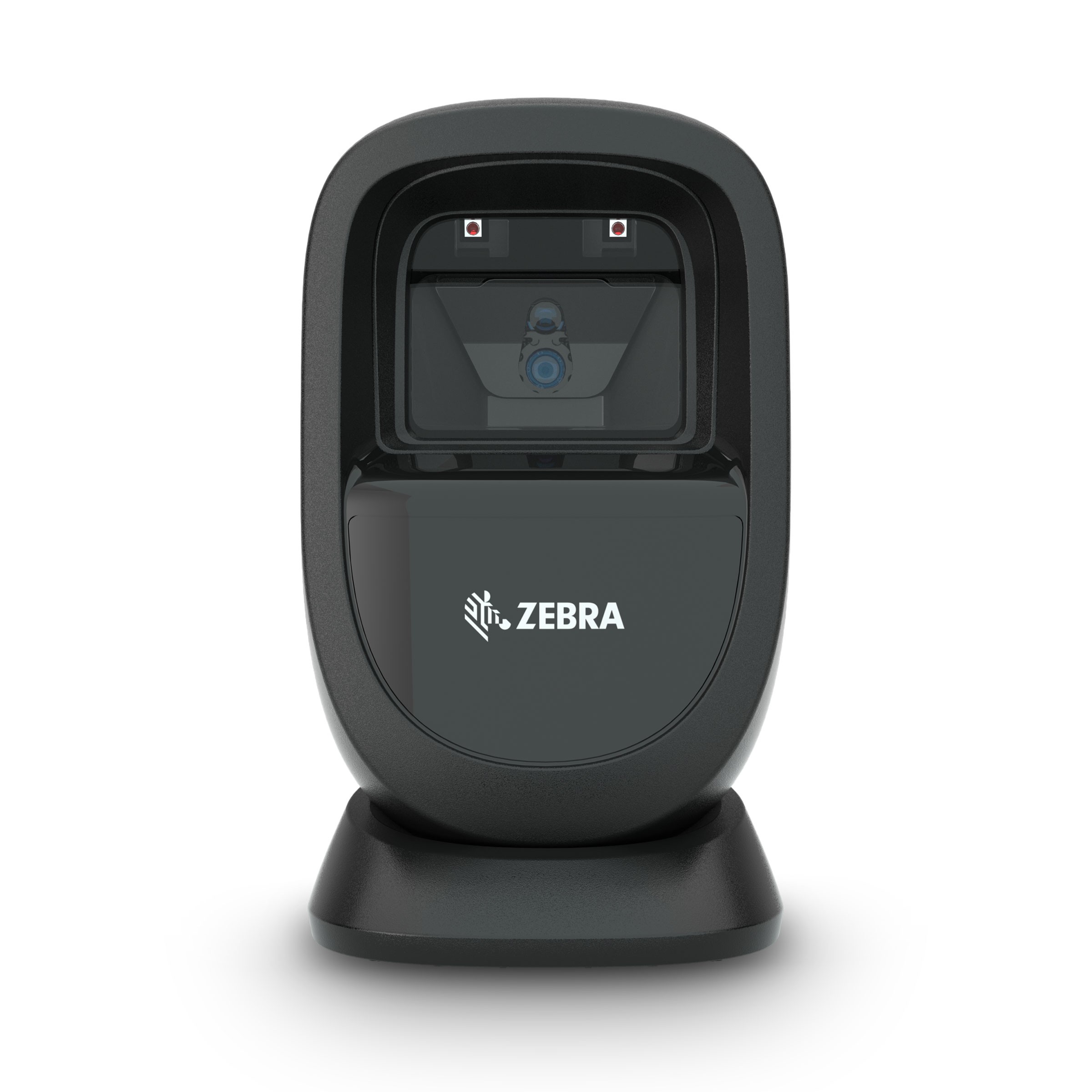

Zebra DS 9308 2D Scanner

From convenience and drug stores to quick serve restaurants and other retail environments — counterspace is limited, bumps and spills may be an everyday occurrence, and the need for high customer satisfaction is always critical. Introducing the DS9300 Series, the presentation scanner that fits anywhere, scans everything, and is built for all-day reliability. You get a compact form factor coupled with stylish aesthetics ideal for trendy boutiques or convenience stores with limited real-estate at the checkout counter. With the ability to scan challenging barcodes at your point of sale, you get unmatched performance for speedier checkout times and happier customers, along with a design that is built to handle everyday drops, bumps and spills to keep you up and running. The DS9300 Series — the little presentation scanner with big functionality.

Download PDF
Specification
Physical Characteristics
Dimensions: 5.7 in. H x 3.4 in. W x 3.3 in. D
14.5 cm. H x 8.6 cm. W x 8.3 cm. D
Weight: 11.2 oz. / 318.0 g
Voltage and current: 4.5 to 5.5 VDC host powered; 4.5 to 5.5 VDC external power supply
Presentation mode: 335mA
Trigger mode: 350mA
Color: Alpine White, Midnight Black
Performance Characteristics
Light Source Aiming pattern: circular 617 nm amber LED
Imager Field of View 52° H x 33° V nominal
Roll 360°
Pitch +/-60°
Skew +/-60°
Print contrast: 15%

Swipe Speed
(Vertical Read Rate)

Up to 120 in./305 cm. per second for 13 mil UPC in
optimized mode
Image Characteristics
Graphics Format Support Images can be exported as Bitmap, JPEG or TIFF
Image Quality 109 PPI on a 4.1 in. x 5.8 in./A6 sized document
User Environment
Operating temp. 32.0° F to 122.0° F / 0.0° C to 50.0° C
Humidity 5% to 95% RH, non-condensing
Drop specs Designed to withstand multiple drops at
5.0 ft. / 1.5 m to concrete
Ambient Light
Immunity
0 to 10,000 foot-candles/0 to 107,700 Lux
Regulatory
Environmental EN 50581:2012
RoHS 2011/65/EU (2015/863) – EN 50581:2012,
IEC 63000
REACH 1907/2006
Electrical safety IEC 62368-1 2nd ed.
EN 62368-1:2014/AC:2015
UL/IEC 60950-1, 2nd ed.
CAN/CSA C22.2 No.60950-1, 2nd ed.
LED Safety IEC 62471:2006 (Ed.1.0)
EN 62471:2008 (LED)
EMI/RFI FCC 47 CFR Part 15B, ICES-003, EN55032,
EN55024, EN55035, VCCI, and SABS
Symbology Decode Capability
1D Code 39, Code 128, Code 93, Codabar/NW7, Code 11, MSI Plessey, UPC/EAN, I 2 of 5, Korean 3 of 5, GS1 DataBar, Base 32 (Italian Pharma)
2D PDF417, Micro PDF417, Composite Codes, TLC-39,
Aztec, DataMatrix, MaxiCode, QR Code, Micro QR,
Han Xin, Postal Codes, securPharm, DotCode,
Dotted DataMatrix
