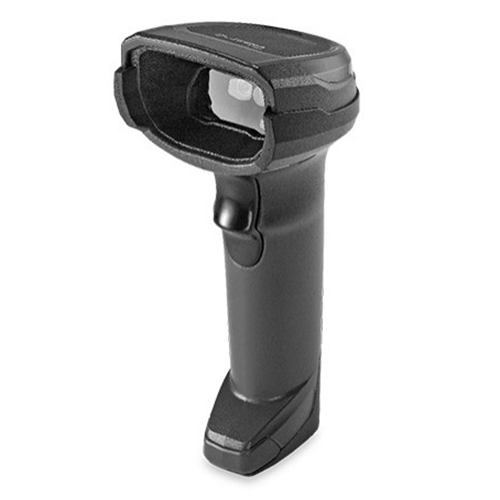

Zebra DS 8100 series 2D Imager

As a retailer, you know the checkout experience is crucial — it’s the last chance to leave your shoppers with a good impression. The quality of the checkout experience is heavily dependent upon the performance of the scanner you choose. If cashiers need to scan barcodes multiple times or enter unreadable barcodes manually, your checkout lanes can back up quickly, translating into long lines and long wait times. Cashiers are then forced to focus on ringing up merchandise instead of providing shoppers with a great in-store experience. Now, give every shopper the ultimate last impression with the DS8100 Series handheld imager, only from Zebra. The DS8100 Series rises above the conventional imagers to deliver unprecedented scanning performance on 1D and 2D barcodes, innovative productivity enhancing tools and unrivaled manageability to keep your checkout lines moving and your cashiers free to deliver a more personal checkout experience. The DS8100 Series — because when it comes to the checkout experience, only the best will do.

Download PDF
Specification
Physical Characteristics

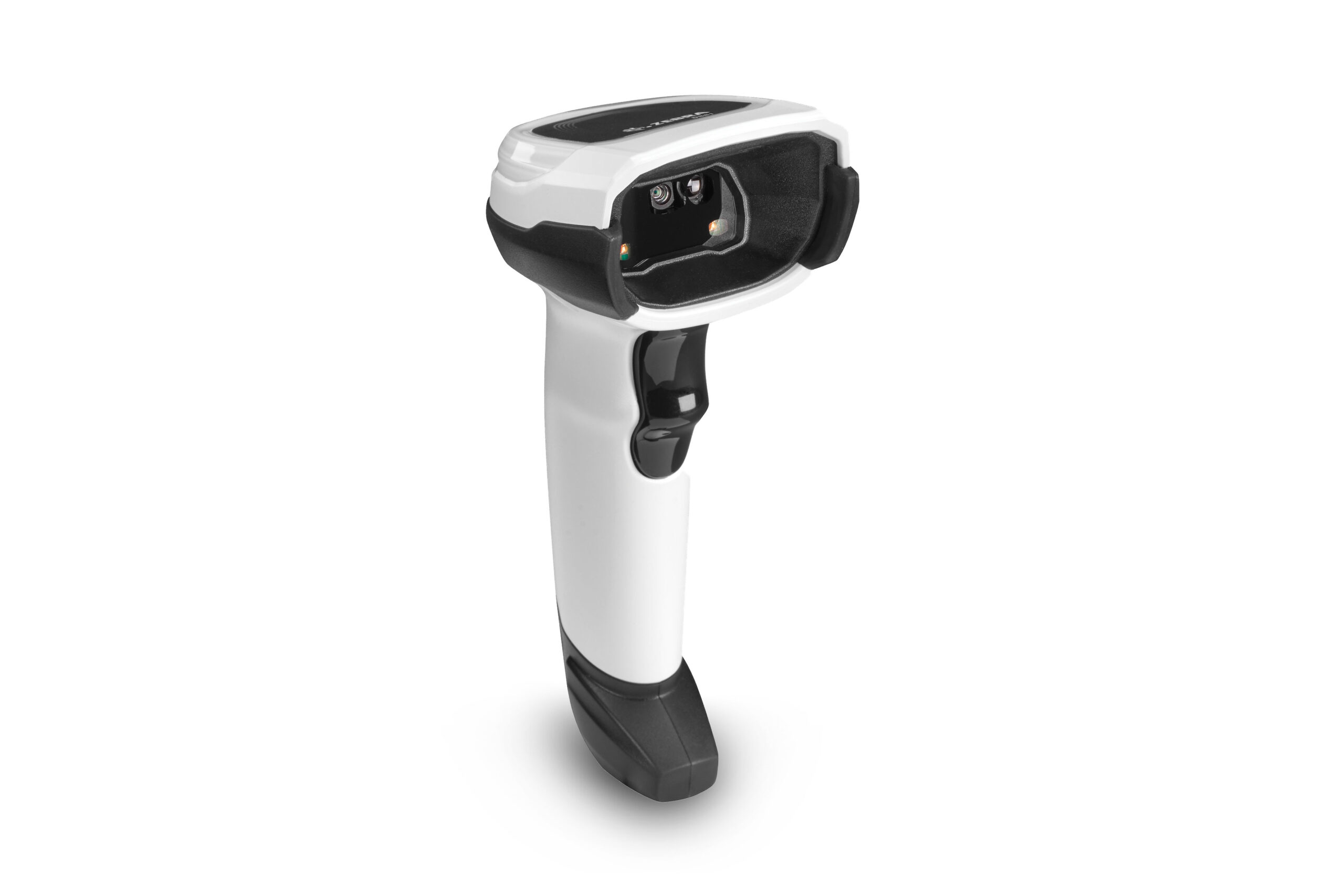

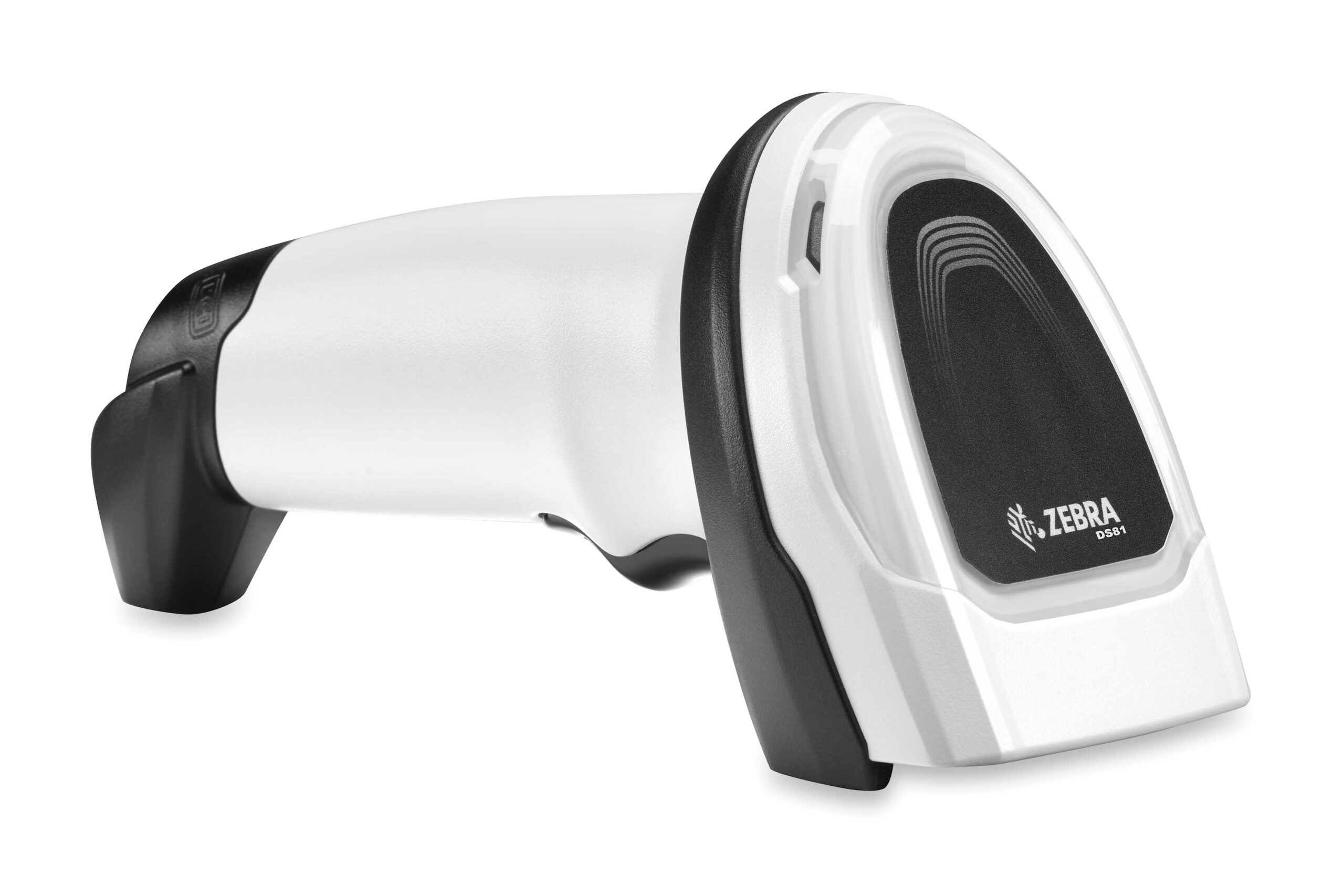

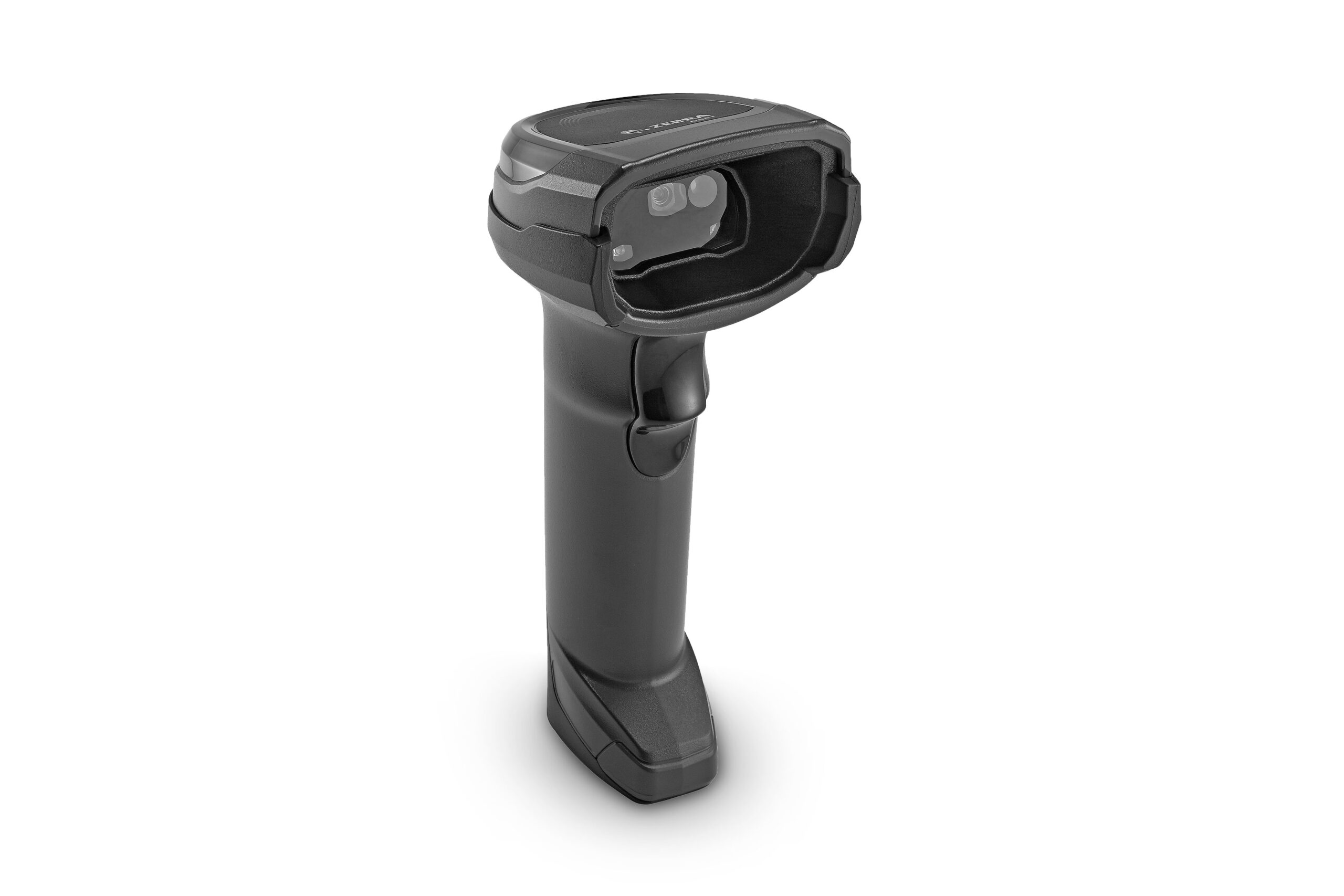

Dimensions: Corded DS8108 and Cordless DS8178:
– 6.6 in. H x 2.6 in. W x 4.2 in. D
– 16.8 cm. H x 6.6 cm. W x 10.7 cm. D

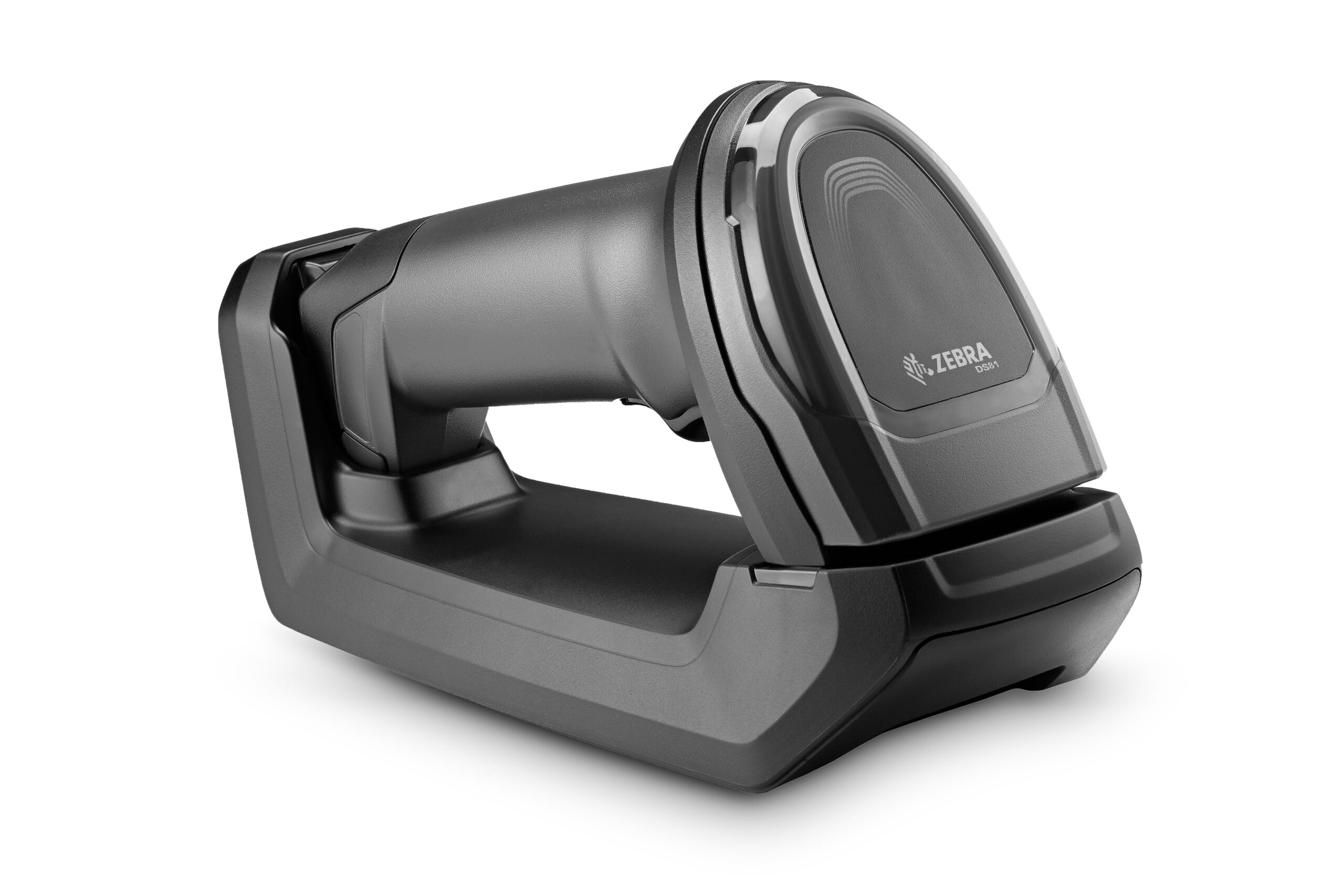

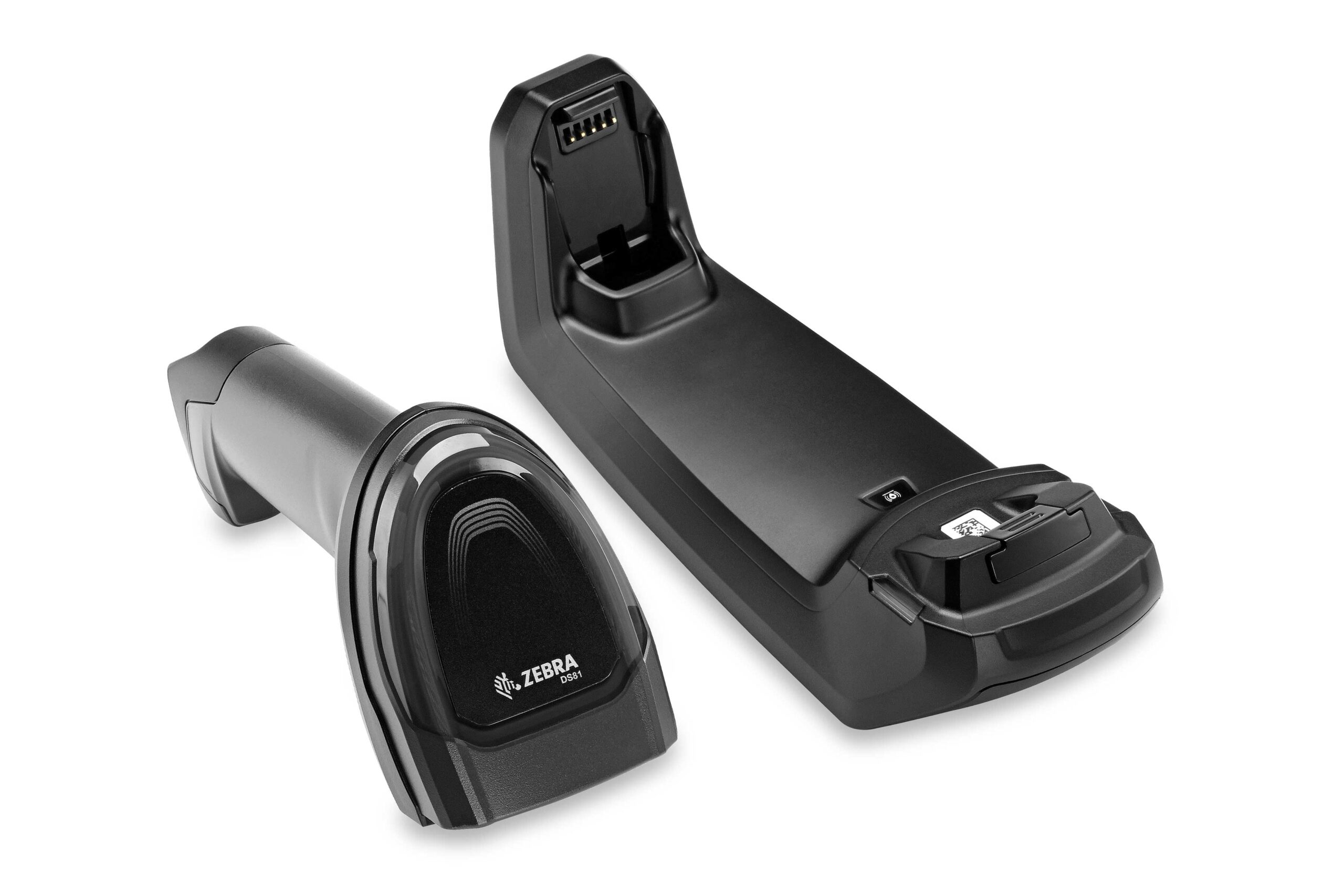

Standard Cradle:
– 2.8 in. H x 3.3 in. W x 8.3 in. D
– 7.1 cm. H x 8.4 cm. W x 21.1 cm. D

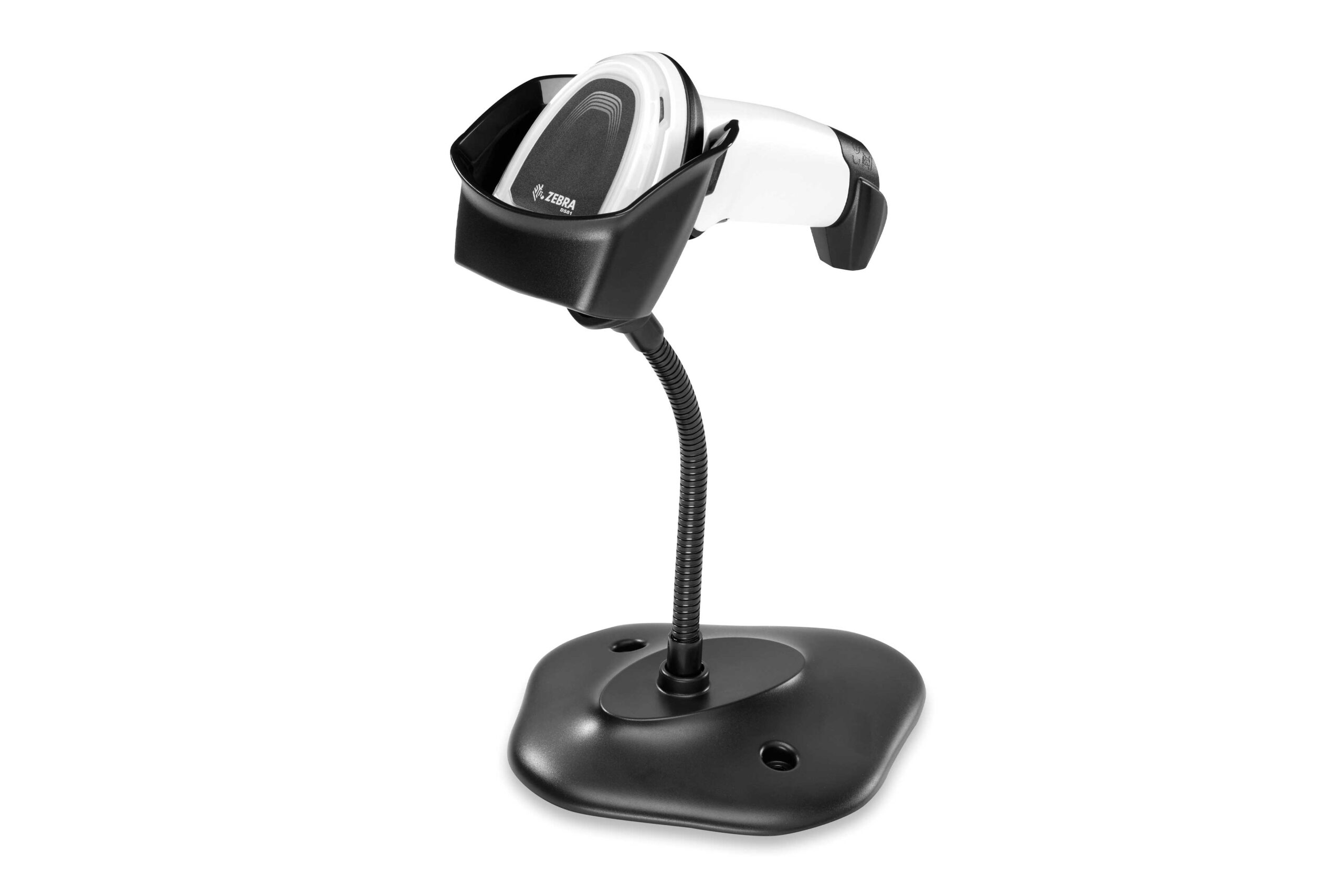

Presentation Cradle:
– 2.9 in. H x 3.7 in. W x 4.8 in. D
– 7.4 cm. H x 9.4 cm. W x 12.2 cm. D
Weight: Corded DS8108: 5.4 oz./154 g
Cordless DS8178: 8.3 oz./235.3 g
Desk/Wall Cradle: 7.1 oz./202 g
Presentation Cradle: 6.5 oz./182 g
Input Voltage
Rangev:
DS8108: 4.5 to 5.5VDC
DS8178 Cradles: 5V: 4.7 to 5.5VDC; 12V: 10.8 to 13.2VDC
Current: Corded DS8108 Operating Current at Nominal Voltage (5.0V): 450 mA
Cradle: 470 mA (typical) Standard USB; 743mA (typical) 12V
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over RS485
Color Nova White, Twilight Black
User Indicators Direct Decode Indicator, Good Decode LEDs, Rear View LEDs, Beeper (Adjustable Tone & Volume), Battery Indicator
Performance Characteristics
Light Source Aiming Pattern: Circular 617nm Amber LED
Illumination (2) 645nm Red LEDs
Imager Field of View 48° H x 37° V Nominal
Image Sensor 1,280 x 960 pixels
Print contrast: 16% minimum reflective difference
Skew/Pitch/Roll +/- 60°; +/- 60°; 0-360°
User Environment
Operating temp. 32° to 122° F/0° to 50° C
Storage temp. -40° to 158° F/-40° to 70° C
Charging Temperature 32° to 104° F/0° to 40° C
Humidity 5% to 95% RH, non-condensing
Drop Specification Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler2
Environmental Sealing IP42
ESD 0 to 9,000 Foot Candles/0 to 96,840 Lux
