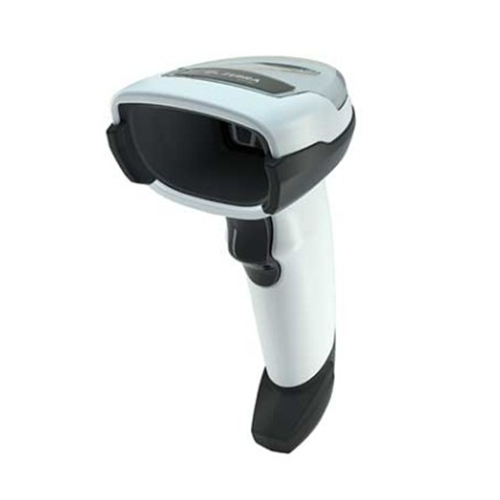

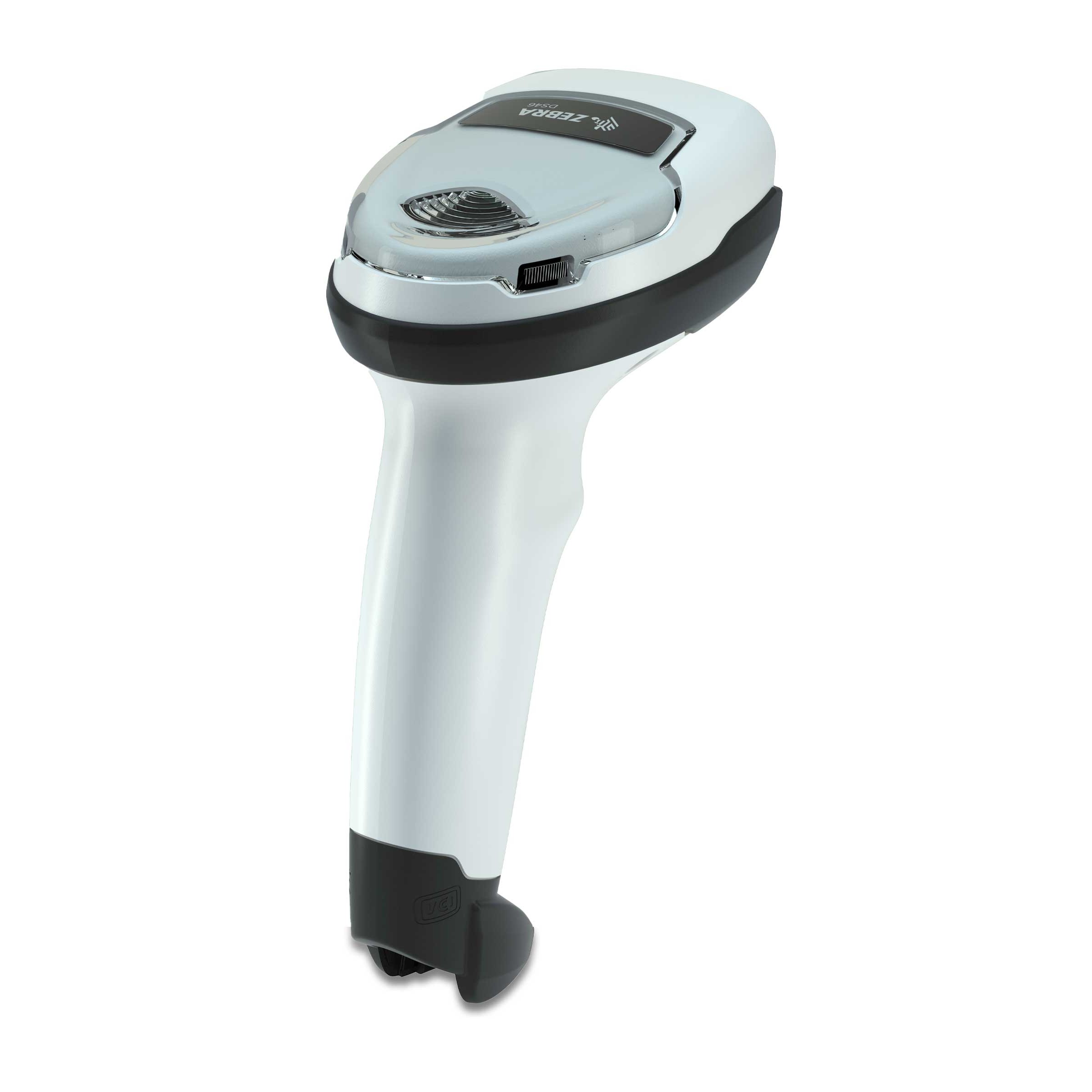

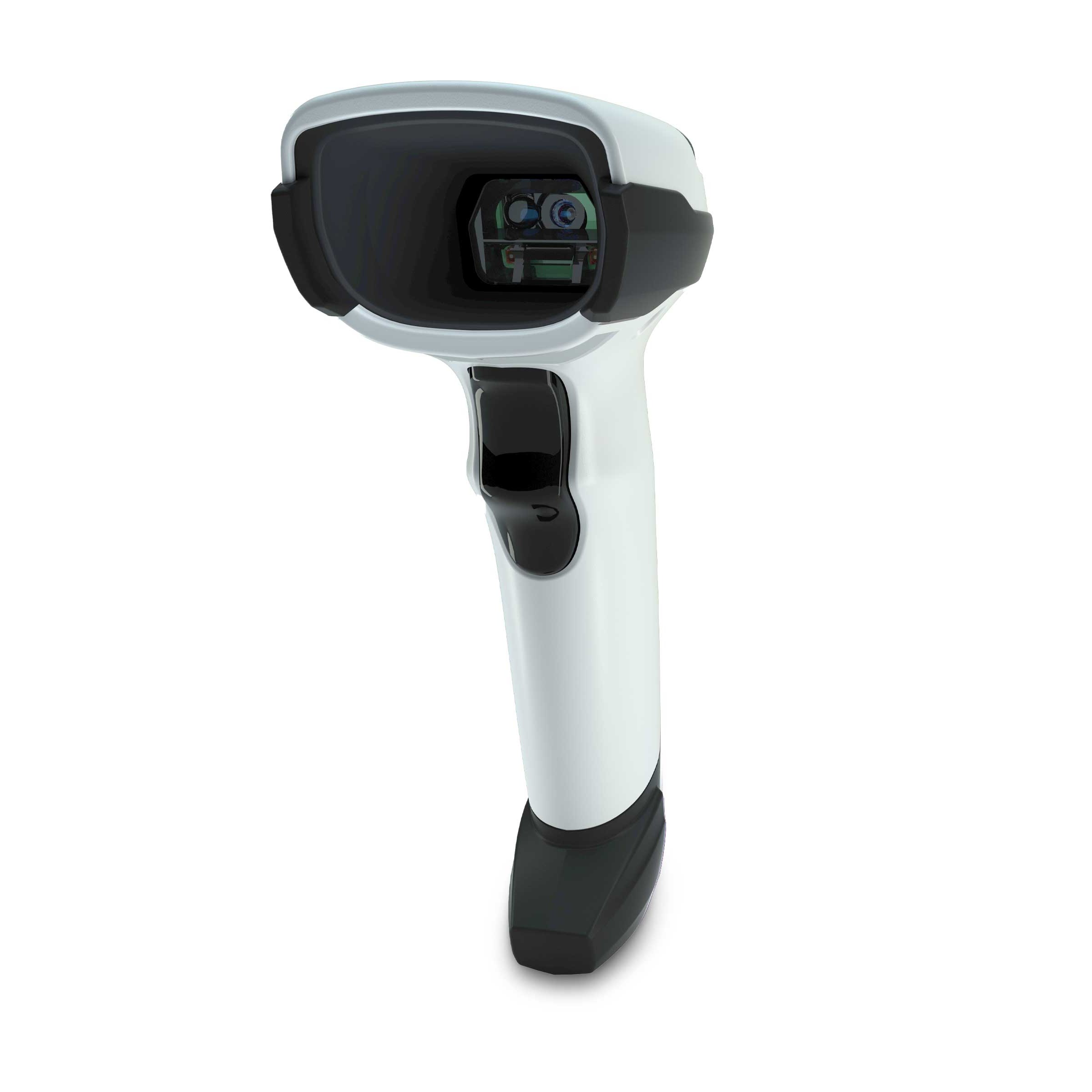

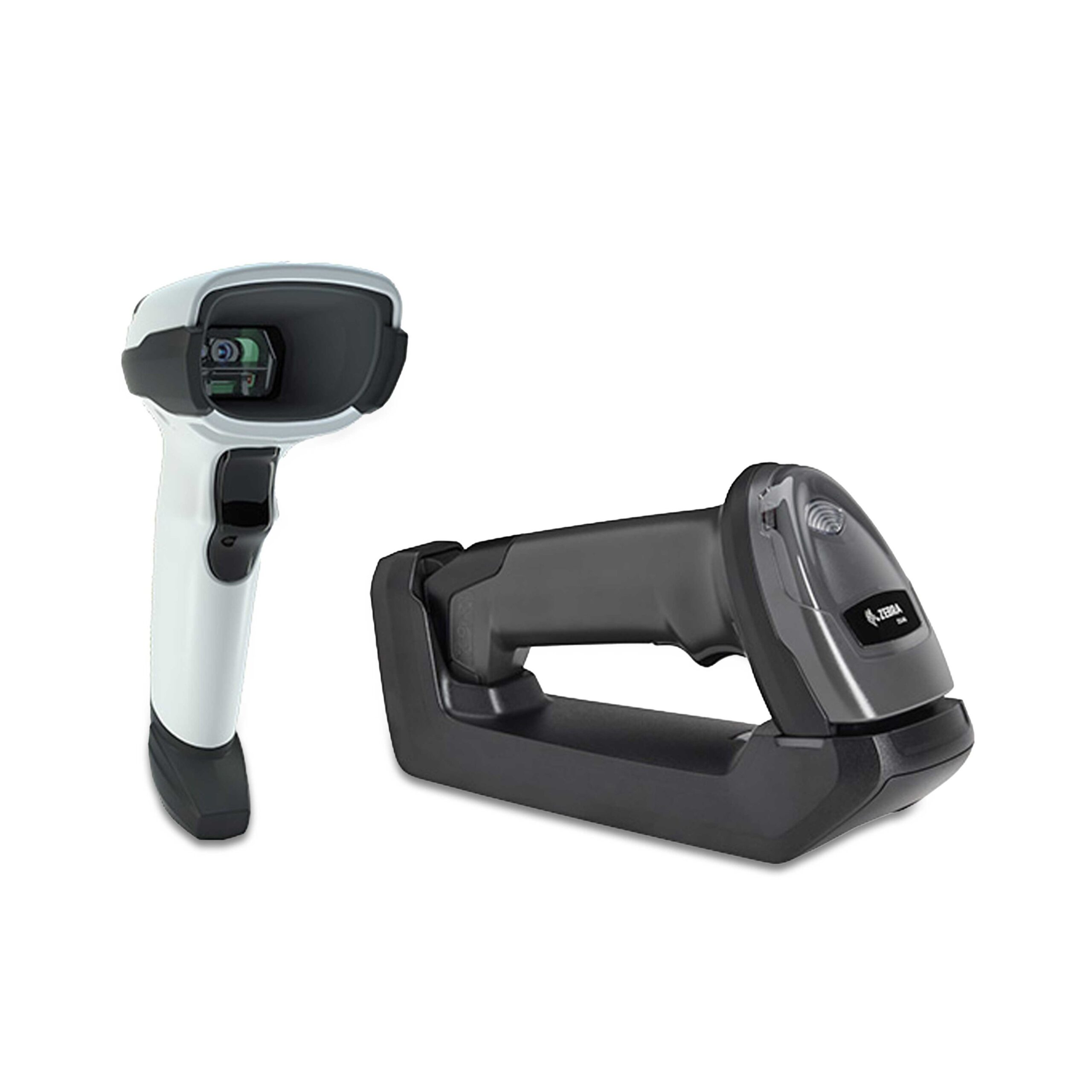

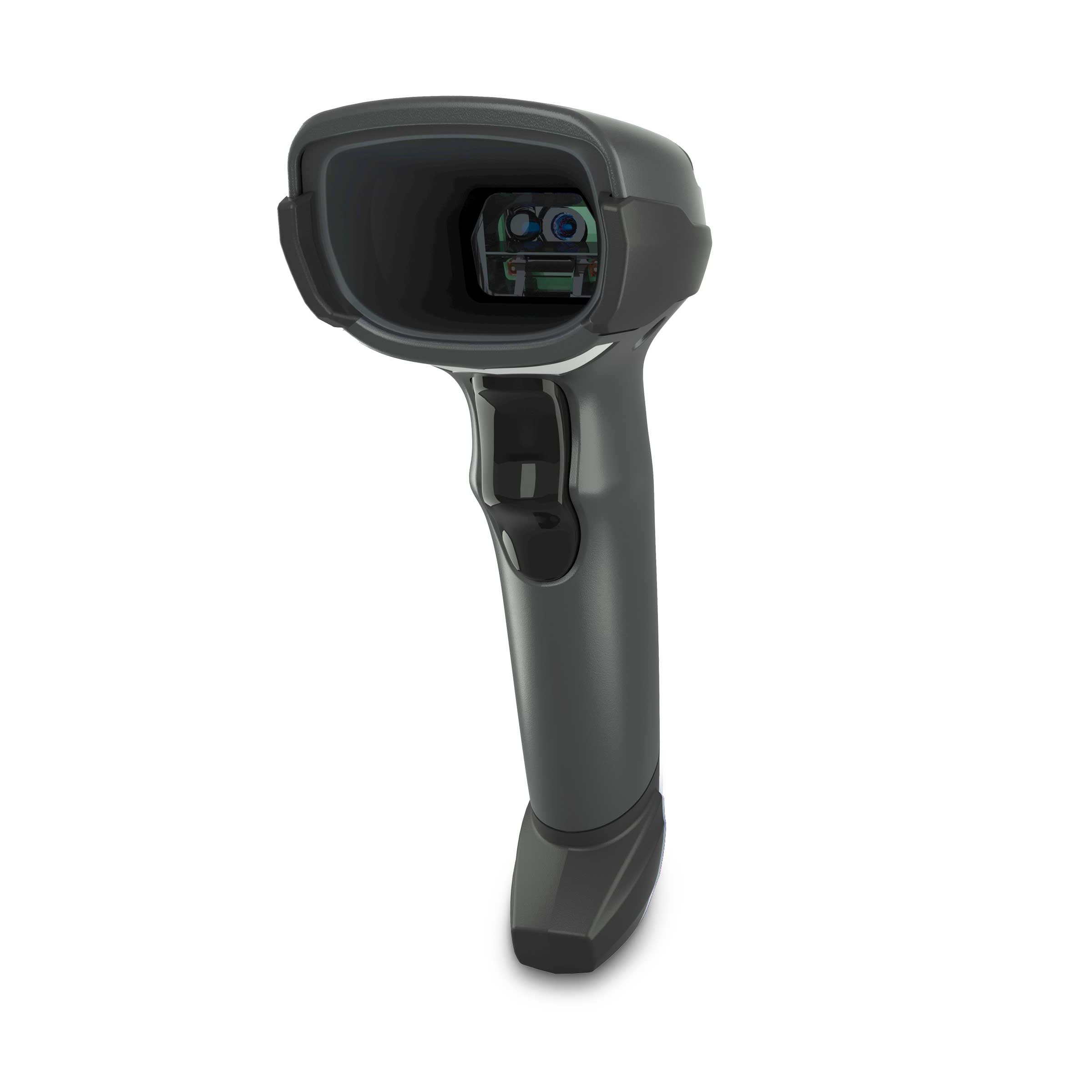

Zebra DS 4600 series Area Imager

Today’s shoppers don’t want to wait in long lines at the checkout or returns desk. The DS4600 Series offers the versatility and scanning performance you need to keep transactions fast and lanes flowing smoothly throughout the whole store. This feature-rich family helps associates scan items of all sizes, read barcodes in nearly any condition and handle transactions of all kinds. There is a DS4600 Series model for every need in your store. Bulky items in a shopping cart, a customer’s driver’s license at the returns desk, a mobile coupon at checkout, tiny barcodes in the jewelry department—the DS4600 Series can capture it all. The increased efficiency shrinks lines and keeps customers coming back again and again. And our unique DataCapture DNA and industry-preferred management tools make it easier than ever to integrate, deploy and manage your scanners. The DS4600 Series—more data capture versatility, more range and more innovation.

Download PDF
Specification
Physical Characteristics
Dimensions: 6.5 in. H x 2.6 in. W x 3.9 in. D
16.5 cm H x 6.7 cm W x 9.8 cm D
Weight: 5.7 oz. / 161.9 g
Input Voltage
Range:
4.5 to 5.5 VDC Host Powered; 4.5 to 5.5 VDC External Power Supply
Current: Operating current : 340 mA (typical)
Standby current : 150 mA (typical)
Supported Host Interfaces USB, RS232, TGCS (IBM) 46XX over RS485
Color Nova White, Twilight Black
User Indicators Direct Decode Indicator, Good Decode LEDs, rear view LEDs, beeper (adjustable tone and volume)
Performance Characteristics
Light Source Aiming Pattern: circular 617nm amber LED
Illumination (2) 660nm red LEDs
Imager Field of View 36.1° H x 22.6° V nominal
Image Sensor 1280 x 800 pixels
Print contrast: 15% minimum reflective difference
Skew/Pitch/Roll +/- 60°; +/- 60°; 0-360°
Minimum Element
Resolution
Code 39 – 4.0 mil; Code 128 – 4.0 mil;
Data Matrix – 6.0 mil; QR Code – 6.7 mil
User Environment
Operating temp. 32.0° to 122.0° F / 0.0° to 50.0° C
Storage temp. -40.0° to 158.0° F / -40.0° to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop specs Designed to withstand multiple drops at 6.0 ft./1.8 m to concrete
Tumble Specification Designed to withstand 2,000 tumbles in 1.5 ft./0.5 m tumbler
Sealing IP52
ESD ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct,
+/-8 KV Indirect
Ambient Light
Immunity
0 to 10,000 foot candles/0 to 107,000 Lux
