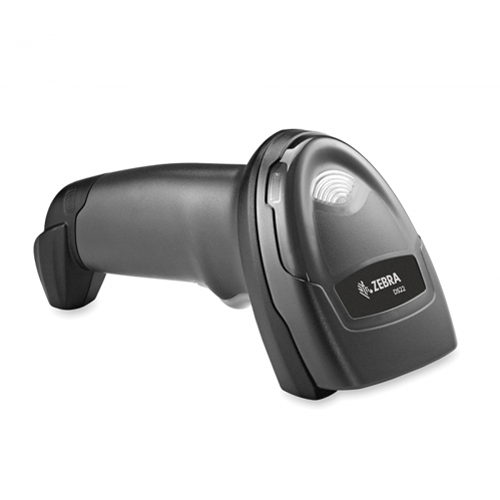

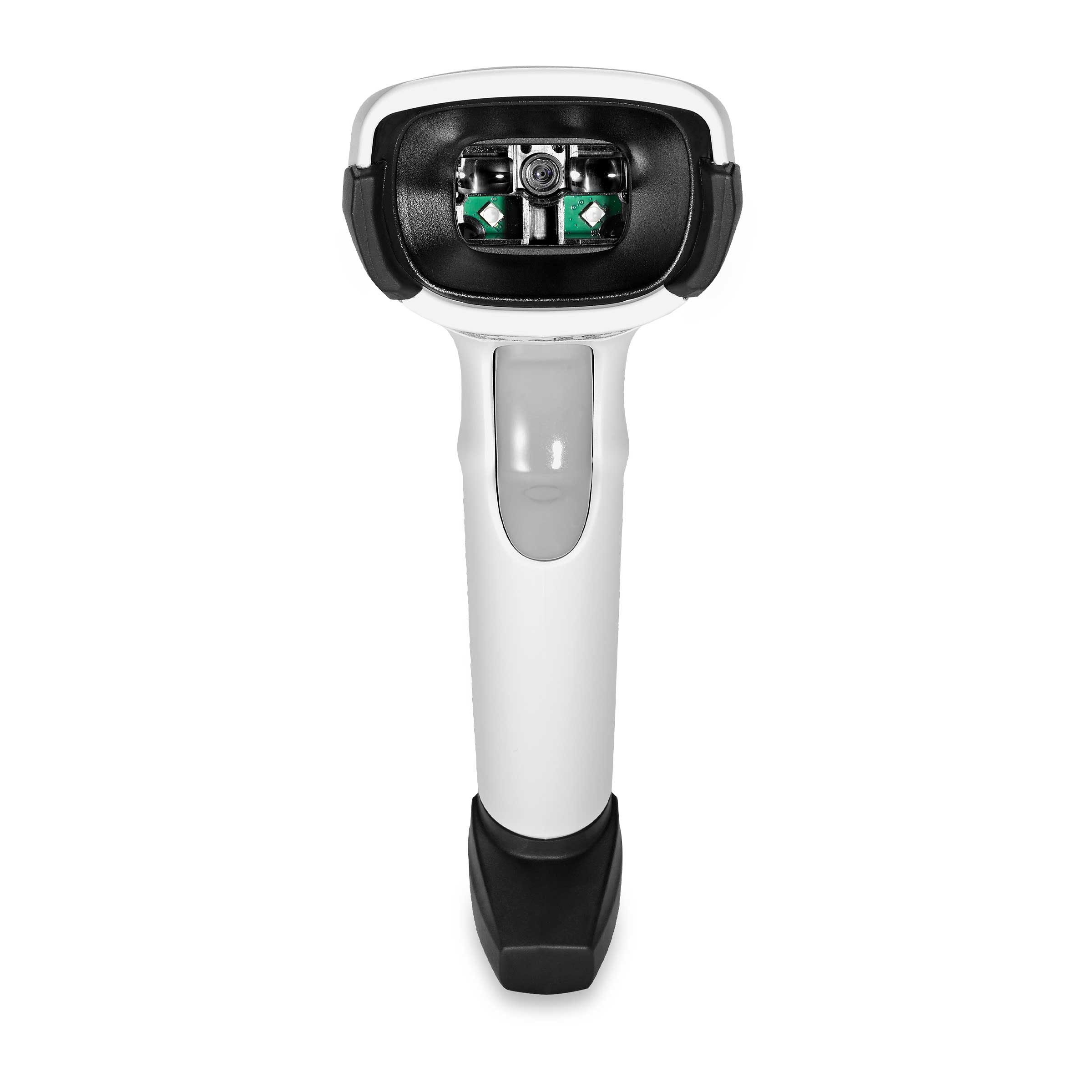

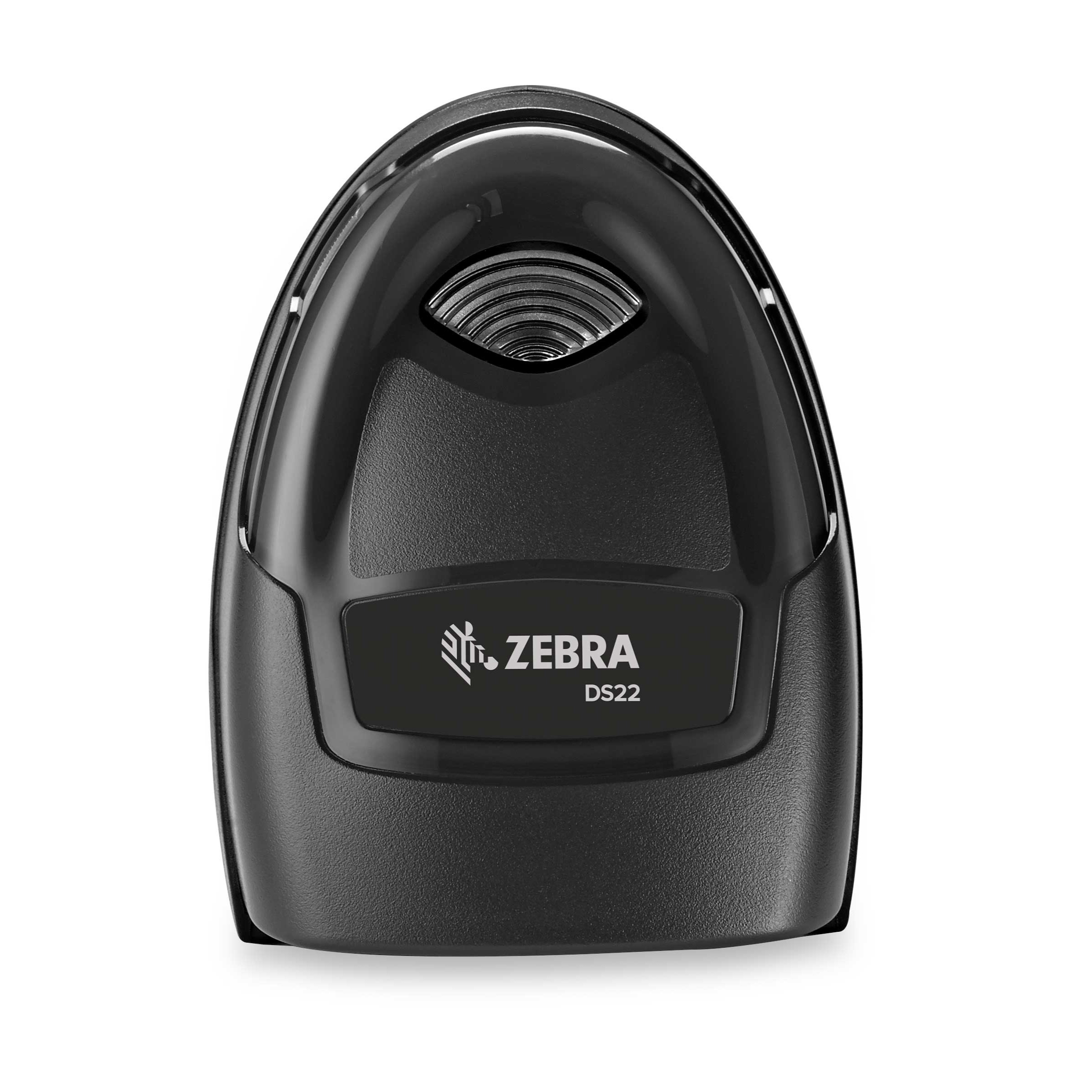

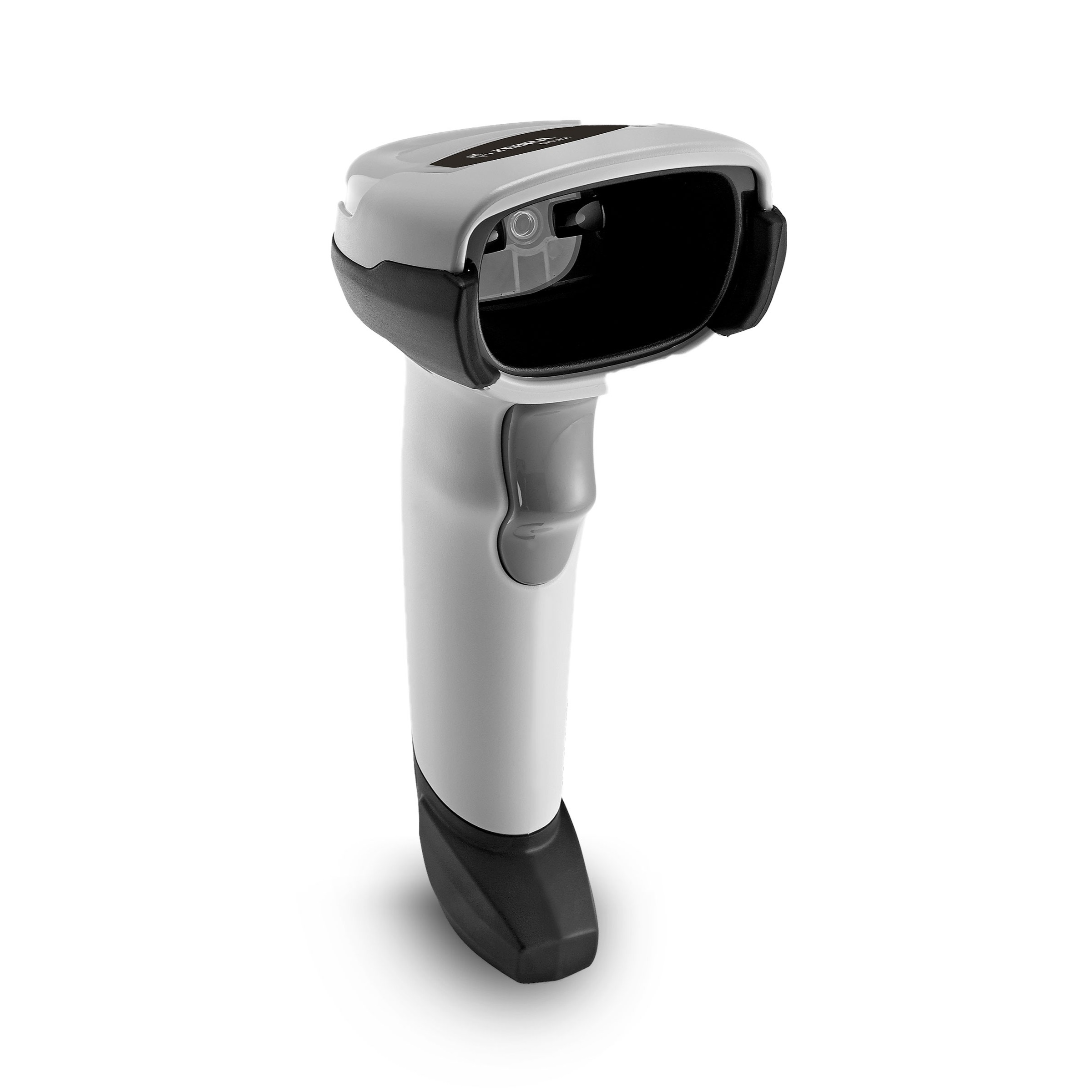

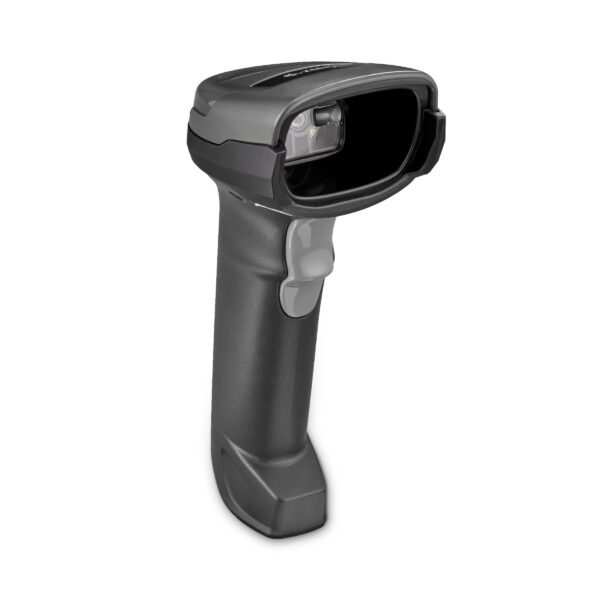

Zebra DS 2208 2D Barcode Scanner

2D barcodes have made their way to your Point of Sale, appearing on everything from the items your customers are purchasing to printed and electronic coupons and loyalty cards. Your 1D scanner can’t capture the new 2D codes, leading to exceptions that slow down the check-out process and frustrate customers at that key last personal touchpoint in your store. But with the DS2200 Series, you can scan it all. You get an affordable 1D/2D imager that doesn’t compromise performance or features for price. Your workers get best-in-class first-time, every-time scanning with point-and-shoot simplicity. You get an imager that couldn’t be easier to deploy and manage. And you can choose the model that best fits your POS needs — the corded DS2208 or the cordless DS2278.* The DS2200 Series — the affordability your budget demands, with the deployment, ease of use and management simplicity your business requires.

Download PDF
Specification
Physical Characteristics
Dimensions:

Corded DS2208:
– 6.5 in. H x 2.6 in. W x 3.9 in. D
– 16.5 cm. H x 6.6 cm. W x 9.9 cm. D

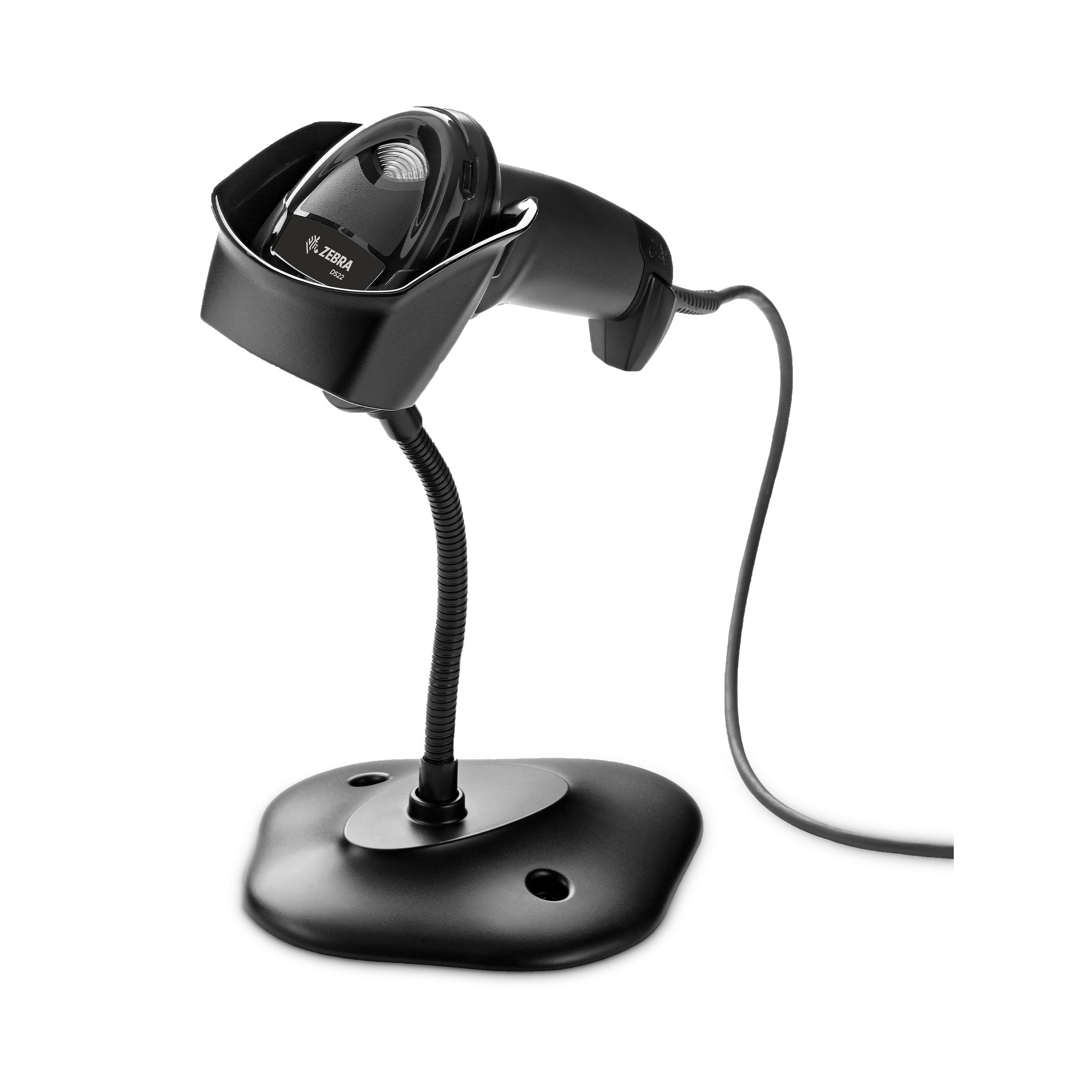

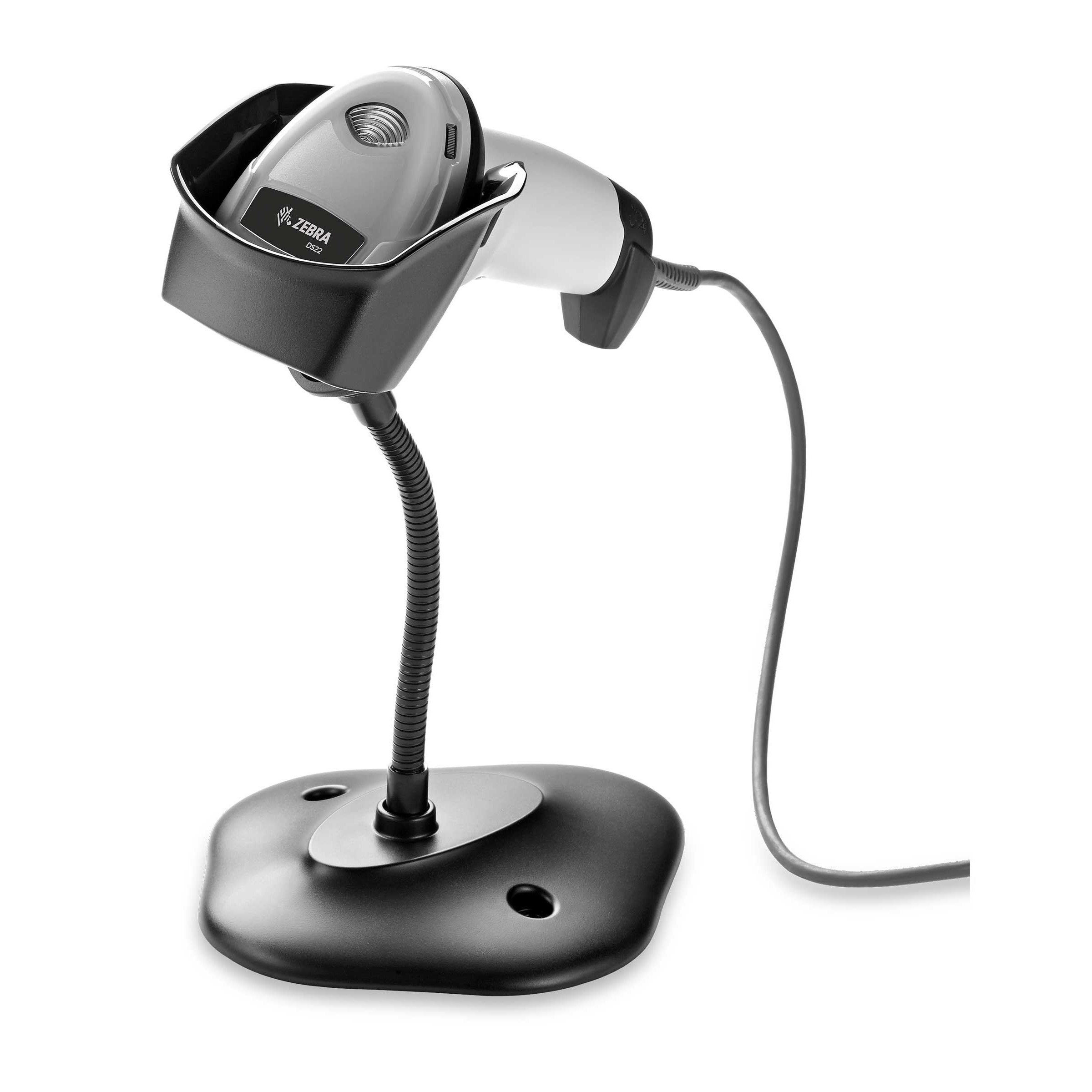

Presentation Cradle:
– 2.8 in. H x 3.7 in. W x 4.8 in. D
– 7.1 cm. H x 9.4 cm. W x 12.2 cm. D

Weight: 5.7 oz. / 161.6 g
Input Voltage
Rangev:
4.5 to 5.5 VDC Host
Powered; 4.5 to 5.5 VDC External Power Supply
Current: Voltage (5.0V): 250 mA (typical). (Note: Auto-Aim and Illumination on Acquiring Image)
Supported Host Interfaces USB, RS232, Keyboard Wedge, TGCS (IBM) 46XX over
RS485
Color Nova White, Twilight Black
User Indicators Direct Decode Indicator; good decode LEDs; Rear view LEDs; beeper (adjustable tone and volume)
Performance Characteristics
Motion Tolerance
(Handheld)
Up to 5 in./13 cm. per second for 13 mil UPC
Swipe Speed
(Hands-Free)
Up to 30.0 in./76.2 cm. per second for 13 mil UPC
Light Source Aiming Pattern: Linear 624nm Amber LED
Illumination (2) 645nm Super-Red LEDs
Imager Field of View 32.8° H x 24.8° V Nominal
Image Sensor 640 x 480 pixels
Print contrast: 25% minimum reflective difference
Skew/Pitch/Roll +/- 65°; +/- 65°; 0-360°
Minimum Element
Resolution
Code 39 – 4.0 mil; Code 128 – 4.0 mil;
Data Matrix – 6.0 mil; QR Code – 6.7 mil
User Environment
Operating temp. 32.0° to 122.0° F/0.0° to 50.0° C
Storage temp. -40.0° to 158.0° F/-40.0° to 70.0° C
Humidity 5% to 95% RH, non-condensing
Drop specs Designed to withstand multiple drops at 5.0 ft./1.5 m to concrete
Tumble Specification Designed to withstand 250 tumbles in 1.5 ft./.5 m tumbler1
Sealing IP42
ESD ESD per EN61000-4-2, +/-15 KV Air, +/-8 KV Direct, +/-8 KV Indirect
Ambient Light
Immunity
0 to 10,000 Foot Candles/0 to 107,600 Lux
