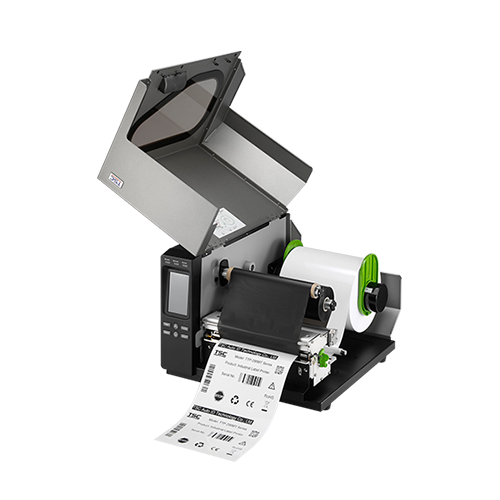

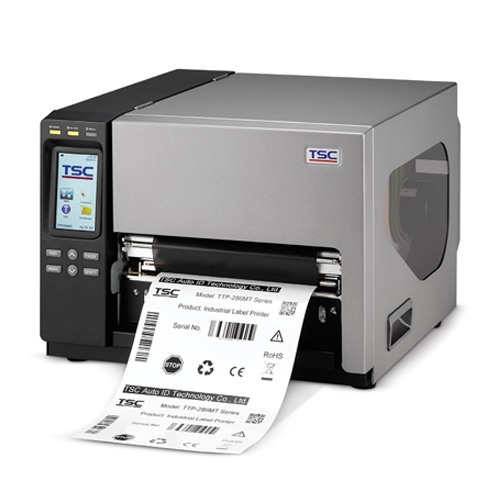

TSC TTP-286MT/TTP-384MT Barcode Printer
The affordable and easy-to-use TTP-286MT Series wide-format thermal transfer printer is ideally suited for compliance labeling, brand marketing, inventory control, drum labeling, warning signs and a host of other signage solutions. TTP-286MT Series can accommodate label widths up to 9.5 inches, with a maximum print width up to 8.64 inches at 300 dpi resolution and 8.5 inches at 203 dpi resolution. It also is designed to print wide-lateral bar codes without the need for image rotation.
Specification
Specification
Resolution | TTP-286MT : 8 dots/mm (203 DPI) TTP-384MT : 12 dots/mm (300 DPI) |
---|---|
Printing method | Thermal Transfer & Direct Thermal |
Max. print speed | TTP-286MT : 152 mm (6”)/second TTP-384MT : 102 mm (4”)/second |
Max. print width | TTP-286MT : 216 mm (8.5“) TTP-384MT : 219.5 mm (8.64“) |
Max. print length | TTP-286MT : 11,430 mm (450“) TTP-384MT : 5,080 mm (200“) |
Enclosure | Die-cast chassis/Sheet metal structure with clear media view window |
Physical dimension | 440 mm (W) x 336 mm (H) x 514 mm (D) 17.32“ (W) x 13.23“ (H) x 20.24“ (D) |
Weight | 23.7 kg (N.W) |
Label roll capacity | 208.3 mm (8.2“) OD |
Ribbon | 600 m long, Max. 90 mm OD, 1“ core (ink coated outside) |
Ribbon width | 110 mm ~ 254 mm (4.3“ ~ 10“) |
Processor | 32-bit RISC CPU |
Memory | 512 MB Flash memory 256 MB SDRAM SD Flash memory card reader for Flash memory expansion, up to 32 GB |
Interface | RS-232 Centronics USB 2.0 Internal Ethernet, 10/100 Mbps USB host, for scanner or PC keyboard GPIO (factory option) Bluetooth (user option) External 802.11 b/g/n wireless (user option) |
Power | Internal universal switching power supply Input: AC 100~240V, 3.0A, 50~60Hz Output: DC 24V, 8.33A, 200W |
Operation switch, button, LCD | 1 power switch, 6 operation buttons (Menu, Pause, Feed, Up, Down, Select); 16 bits Color, 480 x 272 pixels, with back lights, Resistive Touch Screen |
Sensors | Gap transmissive sensor (position adjustable) Black mark reflective sensor (position adjustable) Ribbon end sensor Ribbon Encoder sensor Head open sensor |
Internal fonts | 8 alpha-numeric bitmap fonts Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font |
Bar code | 1D bar code : Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,RSS-Stacked, GS1 DataBar, Code 11 2D bar code : PDF-417, Maxicode, DataMatrix, QR Code, Aztec |
Font and barcode rotation | 0, 90, 180, 270 degree |
Printer language | TSPL-EZTM (Compatible to EPL, ZPL, ZPL II) |
Media type | Continuous, die-cut, fan-fold, tag, notched, black mark, perforated (outside wound) |
Media width | 20 ~ 112 mm (0.78” ~ 4.4”) |
Media thickness | 0.06 ~ 0.254 mm (2.36 ~ 10 mil) |
Media core diameter | 76.2 mm (3“) |
Label length | TTP-286MT : 25.4 ~ 11,430 mm (1“ ~ 450“) TTP-384MT : 25.4 ~ 5,080 mm (1“ ~ 200“) |
Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10~ 90% non-condensing |
Safety regulation | FCC Class A, CE Class A, C-Tick Class A, TÜV/Safety, CCC |
Environmental concern | Comply with RoHS, WEEE |
Accessories | Windows labeling software CD disk Quick start guide USB cable Power cord Ribbon paper core |
Limited warranty | Printer: 2 years Print head: 25 km (1 million inches) or 12 months which comes first Platen: 50 km (2 million inches) or 12 months which comes first |
Factory options | GPIO interface |
User options | Guillotine cutter (full cut) Heavy duty cutter (full cut) Bluetooth module (serial interface) 802.11 b/g/n wireless module (serial interface) KP-200 Plus keyboard display unit KU-007 Plus programmable smart keyboard |
