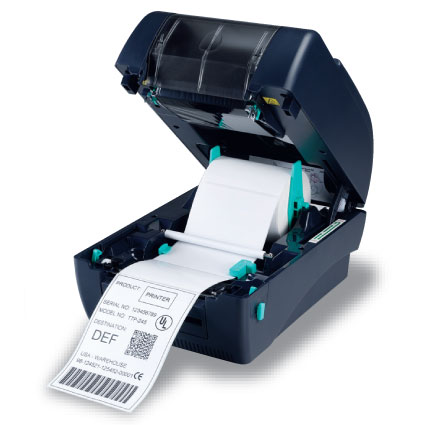

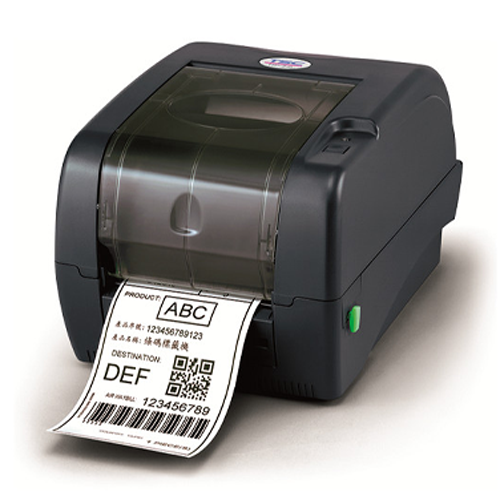

TSC TTP-247 Barcode Printer
The new TTP-247 thermal transfer desktop barcode printer series delivers more performance for the price than any other printer in its class. Based on the design of its best-selling predecessor, the TTP-245 Plus, the TTP-247 runs at an impressive 7 inches per second, printing up to 4 inches wide at 203 dpi resolution. A second model in the series – the TTP-345 – offers high resolution 300 dpi printing at 5 inches per second. Both models offer 8 MB of SDRAM and 4 MB of onboard Flash memory. Gigabytes of Flash memory can be added via an onboard SDHC card reader.
Specification
Specification
Resolution | 8 dots/mm (203 DPI) |
---|---|
Printing method | Thermal Transfer & Direct Thermal |
Max. print speed | 178 mm (7”)/second |
Max. print width | 108 mm (4.25“) |
Max. print length | 2,286 mm (90“) |
Enclosure | Double-walled plastic |
Physical dimension | 213 mm (W) x 188 mm (H) x 314 mm (D) 8.39“ (W) x 7.40“ (H) x 12.36“ (D) |
Weight | 2.8 kg (6.17 lbs) |
Label roll capacity | 127 mm (5“) OD |
Ribbon | 300 m long, max. OD 67 mm, 1“ core (ink coated outside) |
Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) |
Processor | 32-bit RISC CPU |
Memory | 4 MB Flash memory 8 MB SDRAM SD card reader for Flash memory expansion, up to 4 GB (user option) |
Interface |
USB 2.0 |
Power | External universal switching power supply Input: AC 100-240V, 2.5A, 50-60Hz Output: DC 24V, 2.5A, 60W |
Operation switch, button, LED | 1 power switch, 1 feed button & 3 LED (Power, Error, On-line) |
Sensors | Gap transmissive sensor Black mark reflective sensor Ribbon end sensor Head open sensor |
Internal fonts | 8 alpha-numeric bitmap fonts Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font |
Bar code | 1D bar code : Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8,EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,RSS-Stacked, GS1 DataBar, Code 11 2D bar code : PDF-417, Maxicode, DataMatrix, QR Code, Aztec |
Font and barcode rotation | 0, 90, 180, 270 degree |
Printer language | TSPL-EZTM (Compatible to EPL, ZPL, ZPL II) |
Media type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) |
Media width | 20 ~ 112 mm (0.78” ~ 4.4”) |
Media thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)0.06 ~ 0.25 mm (2.36 ~ 9.84 mil) |
Media core diameter | 25.4 ~ 76.2 mm (1” ~ 3”) |
Label length | 10 ~ 2,286 mm (0.39“ ~ 90“) |
Environment condition | Operation: 5 ~ 40°C, 25 ~ 85% non-condensing Storage: -40 ~ 60°C, 10~ 90% non-condensing |
Safety regulation | FCC Class A, CE Class A, C-Tick Class A, TÜV/Safety, CCC |
Environmental concern | Comply with RoHS, WEEE |
Accessories | Windows labeling software CD disk Quick start guide USB cable Power cord External universal switching power supply Label spindle, fixing tab x 2, 1.5“ core adapter x 2 Ribbon spindle x 2 Ribbon paper core |
Limited warranty | Printer: 2 years Print head: 25 km (1 million inches) or 12 months which comes first Platen: 50 km (2 million inches) or 12 months which comes first |
Factory options | Internal Ethernet interface (10/100 Mbps) Real time clock |
User options | Bluetooth module (serial interface) 802.11 b/g/n wireless module (serial interface) External roll mount, media OD. 214 mm (8.4”) on a 1” or 3” core 3” core label spindle KP-200 Plus keyboard display unit KU-007 Plus programmable smart keyboard |
Applications
- Business/Office
- Product Marking
- Compliance Labeling
- Asset Tracking
- Document Management
- Shelf-Labeling
- Shipping/Receiving
- Specimen Labeling
- Inventory Control
- Patient Tracking
