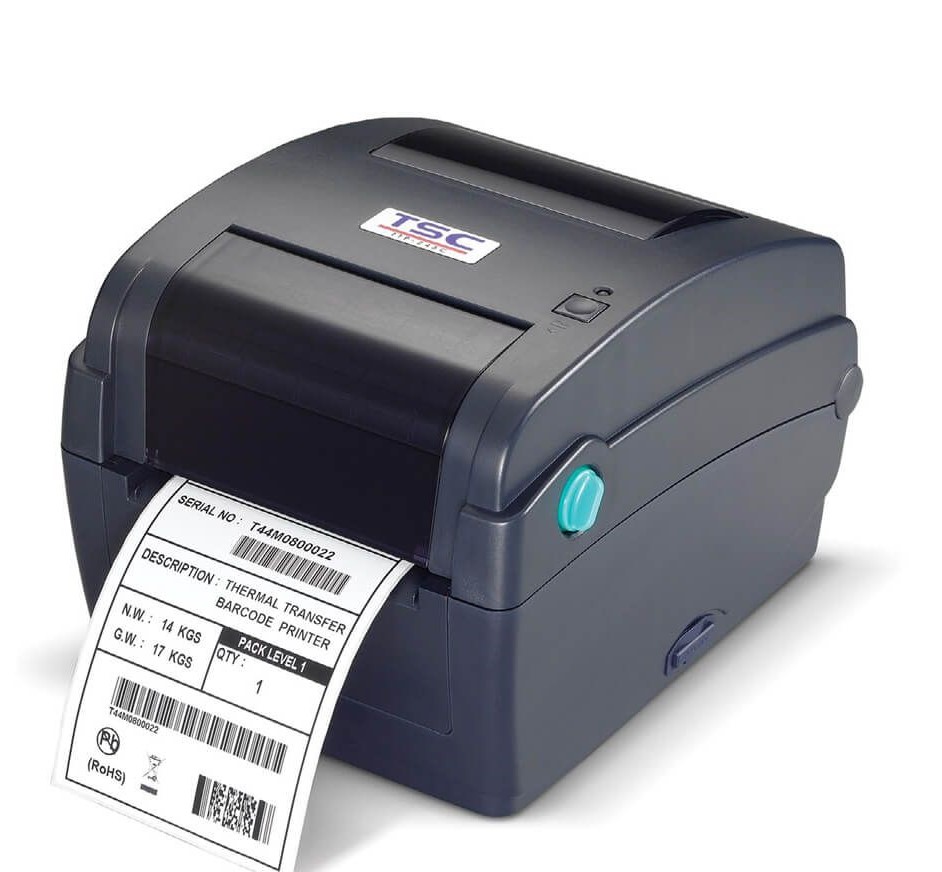

TSC TTP 244CE Barcode Printer

Leveraging a 25-year legacy of excellence, TSC Auto ID offers the reliable TTP-244CE thermal bar code printer. The TTP-244CE is designed to tilt the price/performance game in your favor with a small footprint that offers the high performance that customers have come to expect from TSC. Durable, reliable and fast, the TTP-244CE generates 4-inch-wide labels, tags or receipts at up to 4 inches per second, offering a price-performance combination that is unmatched by other desktop thermal barcode printers on the market.

Download PDF
Specification
Printer Specification
  TTP-244CE (BASIC) TTP-244CE (ADVANCED)
Memory

4 MB Flash memory,
8 MB SDRAM

4 MB Flash memory,
8 MB SDRAM,
SD Flash memory card
reader for Flash memory
expansion, up to 4 GB

Sensors

Gap transmissive sensor
Black mark reflective sensor (position adjustable)
Head open sensor
Ribbon end sensor

Resolution 8 dots/mm (203 DPI)
Processor 32-bit RISC CPU
Interface

USB 2.0

RS-232
Centronics
USB 2.0 (High speed mode)
Internal Ethernet, 10/100 Mbps
USB Host
External Bluetooth (user option)

Power Source External universal switching power supply:
Input: AC 100-240V, 2.5A, 50-60Hz
Output: DC 24V, 2.5A, 60W
Operation switch, button, LED 1 power switch
1 feed/pause button
1 LED with 3 colors (red, green, amber)



Printer language TSPL-EZ™ (Compatible to EPL, ZPL, ZPL II)
Environment condition

Operation: 5 ~ 40oC (41 ~ 104oF), 25 ~ 85% non-condensing
Storage: -40 ~ 60oC (-40 ~ 140oF), 10 ~ 90% non-condensing

Printing Specification
Printing Method Thermal Transfer & Direct Thermal
Printing Resolution 8 dots/mm (203 DPI)
Printing Speed Max 102 mm (4”)/second
Printing Length Max 2,286 mm (90”)
Printing Width Max 108 mm (4.25“)
Enclosure Double-walled plastic
Physical dimension 202mm (W) x 173 mm (H) x 258 mm (D)
7.95” (W) x 6.81” (H) x 10.16” (D)
Fonts / Graphics / Symbologies
Fonts

8 alpha-numeric bitmap fonts

Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font

1D Barcodes Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 China Post
2D Barcodes PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Font & bar code rotation 0, 90, 180, 270 degrees
Media and Ribbon Characteristics
Media Type Continuous, die-cut, tag & fan-fold (outside wound)
Media width 20 ~ 112 mm (0.79“ ~ 4.4“)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 38.1mm (1“ ~ 1.5“)
Label length 10 ~ 2,286 mm (0.39“ ~ 90“)
Label roll capacity 127 mm (5” ) OD
Ribbon 110 m long, max. OD 40 mm, 0.5” core (ink coated outside)
Ribbon width 40 mm ~ 110 mm (1.57“ ~ 4.33“)
Optional
Safety regulation FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Accessories
  • Windows labeling software CD disk
  • Quick start guide
  • USB cable
  • Power cord
  • External universal switching power supply
Limited warranty
  • Printer: 2 years
  • Print head: 25 km (1 million inches) or 12 months which comes first
  • Platen: 50 km (2 million inches) or 12 months which comes first
