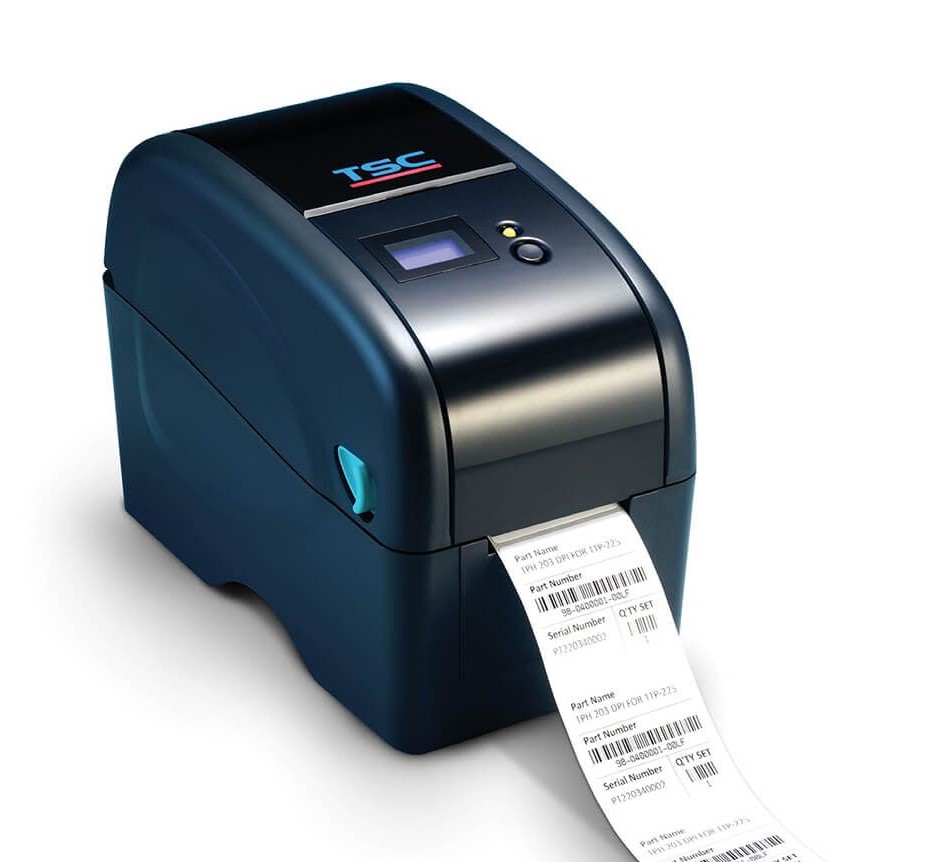

TSC TTP-225 Series Barcode Printer

The TTP-225 Series delivers premium performance for most retail, medical and office applications at an
affordable price. The TTP-225 features a user-friendly clamshell design with a large 5” OD center biased media capacity. Designed with no losable parts, it is the perfect size when you need a space-saving printer for 2” wide labels or tags. Simply open the cover and drop your labels into the printer’s spring-loaded media guide. Top of form sensing by gap, black mark, or notch is standard and completely adjustable from side to side.

Download PDF
Specification
Printer Specification
Memory
  • 4MB Flash memory
  • 8MB SDRAM
  • MicroSD card slot for memory expansion, up to 4 GB
Sensors
  • Gap transmissive sensor (offset 4 mm from center)
  • Black mark reflective sensor (position adjustable)
  • Ribbon end sensor
  • Head open sensor
Resolution 203 DPI
Processor 32-bit RISC high performance processor
Interface
  • RS-232 (max. 115,200 bps)
  • USB 2.0 (full speed mode)
  • Internal Ethernet, 10/100 Mbps (dealer option)
  • 128 x 64 pixels graphic type LCD display with back light (factory option)
  • USB host, for scanner or PC keyboard (factory option)
Power Source External universal switching power supply:
Input: AC 100-240V
Output: DC 24V 2.5A
Operation switch, button, LED One power switch, one feed button & one LED (3 colors)
Printer language TSPL-EZ™
Environment condition
  • Operation: 5 ~ 40oC (41 ~ 104oF), 25 ~ 85% non-condensing
  • Storage: -40 ~ 60oC (-40 ~ 140oF), 10 ~ 90% non-condensing
Real time clock Standard
Printing Specification
Printing Method Direct Thermal / Thermal Transfer
Printing Resolution 203 dpi(8 dots/mm)
Printing Speed 2, 3, 4, 5 ips
2, 3 ips selectable with peel function
Printing Length Max 2,286 mm (90”)
Printing Width Max 54 mm (2.13”)
Enclosure Clamshell design with double walled plastic
Physical dimension 241.3 mm (L) x 139.9mm (W) x 177.4 mm (H)
9.5” (L) x 5.5” (W) x 6.98” (H)
Fonts / Graphics / Symbologies
Fonts 8 alpha-numeric bitmap fonts
One Monotype Image® CG Triumvirate Bold Condensed scalable font
1D Barcodes Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar,
Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC
2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 Data Bar, Code 11
2D Barcodes PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font & bar code rotation 0, 90, 180, 270 degrees
Media and Ribbon Characteristics
Media Type Continuous, die-cut, black mark, fan-fold, notch, wristband
Media wound type Outside wound
Media width 15 ~ 60 mm (0.59” ~ 2.36”)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil), max. 150 g/m2
Media core diameter 25.4 ~ 38 mm (1” ~ 1.5”)
Label length 6 ~ 2,286 mm (0.24”~ 90”)
Peeler mode: 25.4 ~ 152.4 mm (1” ~ 6”)
Cutter mode: 25.4 ~ 2,286 mm (1” ~ 90”)
Ribbon capacity 90 meter, Max. 37 mm (1.46”) OD, 12.7 mm (0.5”) core
Ribbon core width 56~58 mm(2.20”~2.28”)
Label roll capacity 5” OD, 1” core
Optional
Safety regulation FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Accessories Windows labeling software CD disk
Quick start guide
USB port cable
External universal switching power supply
Power cord
Limited warranty Printer: 2 years
Print head: 1 million inches (25 km) or 12 months which comes first
Platen: 50 km
Factory options 128 x 64 pixels graphic type LCD display with back light
USB host, for scanner or PC keyboard
Dealer options Internal Ethernet interface (10/100 Mbps)
Peel off module assembly
Guillotine cutter:
–  Full cut: Paper thickness: 0.06 ~ 0.19 mm, 200,000 cuts
–  Partial cut: Paper thickness: 0.06 ~ 0.12 mm, 500,000 cuts
                     Paper thickness: 0.19 mm, 200,000 cuts
User options KP-200 Plus keyboard display unit
KU-007 Plus programmable smart keyboard
HCS-200 long range CCD scanner
Bluetooth module (serial interface)
