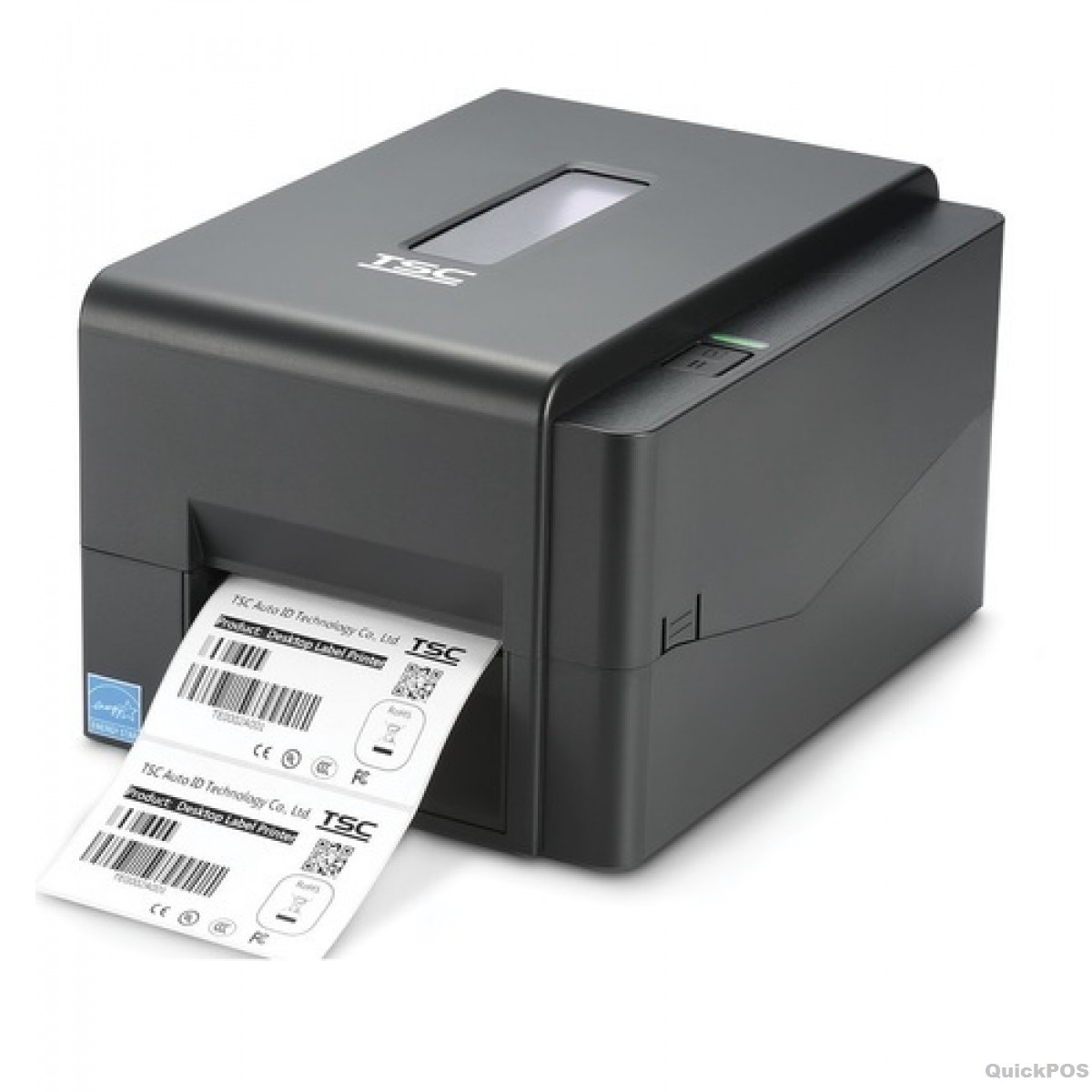

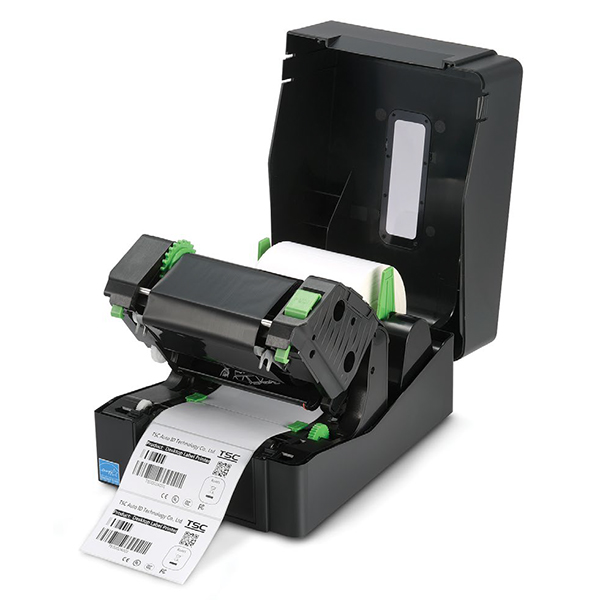

TSC TE200/TE210/TE300/TE310 Barcode Printer

The introduction of the new TE200 Series expands TSC Auto ID’s growing line of affordable, high-performance desktop-class label printers.
The TE200 Series provides customers throughout the world with a competitive, durable, entry-level desktop printer that is both versatile and easy-to-use. The series now offers four models.
The first two models available in the TE200 series are the flagship TE200 and TE210 which offer the industry standard 8 dots per mm (203 dpi) print resolution at 6 inches per second, and the 12 dots per mm (300 dpi) TE300 and TE310 for use with printing small fonts, barcodes, or graphics. The TE200 Series offer customers a great combination of price and performance, that features a fast 400 MHz processor, TE200 and TE300 features 16 MB of DRAM and 8 MB of Flash storage memory, while TE210 and TE310 features 64 MB of SDRAM and 128 MB of Flash memory, and a standard two-year warranty.

Download PDF
Specification
Specification
  TE200 TE210 TE300 TE310
Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Printing method Thermal Transfer & Direct Thermal
Max. print speed 152.4 mm (6”)/second 127 mm (5”)/second
Max. print width 108 mm (4.25“) 105.7 mm (4.16“)
Max. print length 2,794 mm (110“) 25,400 mm (1000“) 1,016 mm (40“) 11,430 mm (450“)
Enclosure ABS plastic
Physical dimension 204 mm (W) x 164 mm (H) x 280 mm (D)
8.03“ (W) x 6.46“ (H) x 11.02“ (D)
Weight 2.4 kg (5.29 lbs) 2.4 kg (5.29 lbs) 2.4 kg (5.29 lbs) 2.4 kg (5.29 lbs)
Label roll capacity 127 mm (5“) OD
Ribbon 300 m long, max. OD 67 mm, 1” core (ink coated outside)
110 m long, max. OD 40 mm, 0.5” core (ink coated outside)
Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”)
Processor 32-bit RISC CPU
Memory 8 MB Flash memory
16 MB SDRAM
128 MB Flash memory
64 MB SDRAM
8 MB Flash memory
16 MB SDRAM
128 MB Flash memory
64 MB SDRAM
Interface USB 2.0
Internal Bluetooth 4.0 (factory option)
USB 2.0
Internal Ethernet, 10/100 Mbps
RS232
USB host, for scanner or PC keyboard
Internal Bluetooth 4.0 (factory option)
External Bluetooth (user option)
USB 2.0
Internal Bluetooth 4.0 (factory option)
USB 2.0
Internal Ethernet, 10/100 Mbps
RS232
USB host, for scanner or PC keyboard
Internal Bluetooth 4.0 (factory option)
External Bluetooth (user option)
Power External universal switching power supply
– Input: AC 100-240V, 2.5A, 50-60Hz
– Output: DC 24V, 2.5A, 60W
Operation switch, button
LED
1 power switch, 1 feed and pause button & 1 LED (3 colors: green, amber & red)
Sensors Transmissive gap sensor
Black mark reflective sensor (position adjustable)
Ribbon end sensor
Head open sensor
Internal fonts 8 alpha-numeric bitmap fonts
Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
Bar code 1D bar code :
Code 128UCC, Code 128 subsets A, B, C, EAN128, Interleaved 2 of 5,
Interleaved 2 of 5 with check digit, Code 39, Code 39 with check digit, Code 93, EAN13, EAN8, UPCA, UPCE, EAN and
UPC 2 (5) digits add-on, Codabar, Postnet, MSI, MSI with check digit, PLESSEY, China post, ITF14, Code 11,
TELEPEN, TELEPENN, PLANET, Code49, Deutsche Post Identcode, Deutsche Post Leitcode, LOGMARS
2D bar code : GS1 DataBar, GS1 DataMatrix, Maxicode, AZTEC, PDF417, QR Code, Micro PDF 417
Font and barcode rotation 0, 90, 180, 270 degree
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Media type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 20 ~ 112 mm (0.8“ ~ 4.4“)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 38 mm (1” ~ 1.5”)
Label length 5 ~ 2,794 mm
(0.2“ ~ 110“)
5 ~ 25,400 mm
(0.2“ ~ 1000“)
5 ~ 1,016 mm
(0.2“ ~ 40“)
5 ~ 11,430 mm
(0.2“ ~ 450“)
Environment condition Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Environmental concern Comply with RoHS, REACH, WEEE
Applications
  • Manufacturing & Warehousing
    – Work in Progress
    – Item Labels
    – Instruction Labels
    – Agency Labels
  • Healthcare
    – Patient Identification
    – Pharmacy
    – Specimen Identification
  • Parcel Post
    – Shipping Labels
    – Receiving Labels
  • Small Office/Home Office
    – Shipping Labels
    – File folder labels
    – Product identification
  • Retail Marking
    – Price Tags
    – Shelf Labels
    – Jewelry Tags
