TSC TDP-324W Series Barcode Printer

The TDP-324W 300 dpi high-resolution wristband label printer is custom-designed for patient ID and entertainment ticketing.

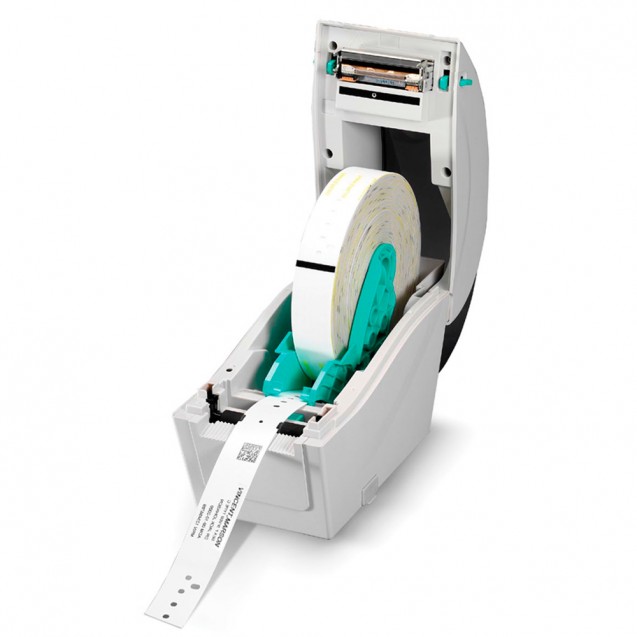

The TDP-324W series works with any available rolls of wristbands on the market, delivering both flexibility and the lowest cost solutions for your wristband printing applications. Unlike other direct thermal printers, the TDP-324W series features a compact design but can still hold a full 6.5-inch OD roll of wristbands. Order wristbands on 6.5 inch rolls, sold by major wristband manufacturers, provides the lowest cost per wristband available.

The printer features a small footprint that can stand on a desk, or be wall-mounted when desk space is at a premium. The printer features an LCD printer-status display and offers USB 2.0 and Ethernet connectivity along with a USB-Host port for use with a keyboard or scanner. The TDP-324W can be optionally configured to print wristbands in the event of a computer failure by retrieving its stored wristband printing program and entering and printing patient or customer information from a PC keyboard.

The TDP-324W series also includes the TDP-225W wristband printer with 203 dpi resolution. The TDP-225W includes the same features as the TDP-324W and is perfect for applications that do not require high-resolution graphics or barcodes.

Download PDF
Specification
Printer Specification
Memory
  • 4MB Flash memory
  • 8MB SDRAM
  • MicroSD card slot for memory expansion, up to 4 GB
Sensors
  • Transmissive gap sensor
  • Black mark reflective sensor (position adjustable)
  • Head open sensor
Processor 32-bit RISC CPU
Interface
  • USB 2.0 (full speed mode)
  • Internal Ethernet, 10/100 Mbps (dealer option)
  • USB host, for scanner or PC keyboard (factory option)
Power Source External universal switching power supply :
Input: AC 100-240V, 1A, 47-63Hz
Output: DC 24V, 2.08A, 50W
Operation switch, button, LED One power switch, one feed button & one LED (3 colors)
Printer language TSPL-EZ™
Environment condition
  • Operation: 5 ~ 40oC (41 ~ 104oF), 25 ~ 85% non-condensing
  • Storage: -40 ~ 60oC (-40 ~ 140oF), 10 ~ 90% non-condensing
Weight 1.2 kg (2.65 lbs)
LCD Graphic type, 128 x 64 pixels, with back light
Real time clock Standard
Printing Specification
Printing Method Direct Thermal
Printing Resolution 12 dots/mm (300 DPI)
Printing Speed Max 102 mm (4”)/second
Printing Length Max 1,016 mm (40“)
Printing Width Max 48 mm (1.89“)
Enclosure Clamshell design with wall mount hole at the bottom cover
Physical dimension 109 mm (W) x 210 mm (H) x 260 mm (D)
4.29” (W) x 8.27” (H) x 10.24” (D)
Fonts / Graphics / Symbologies
Fonts
  • 8 alpha-numeric bitmap fonts
  • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
1D Barcodes Code 39, Code 93, Code 128UCC, Code 128 subsets A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-
13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, China POST,
GS1 DataBar, Code 11
2D Barcodes PDF-417, Maxicode, DataMatrix, QR code, Aztec
Font & bar code rotation 0, 90, 180, 270 degree
Media and Ribbon Characteristics
Media Type Continuous, die-cut, black mark, fan-fold, notched, wristband (outside wound)
Media width 15 ~ 52 mm (0.59“ ~ 2.05“)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 mm (1”)
Label length 10 ~ 1,016 mm (0.39” ~ 40”)
Label roll capacity 165 mm (6.5“) OD
Optional
Safety regulation FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC
Environmental concern Comply with RoHS, WEEE
Accessories Windows labeling software CD disk
Quick start guide
USB port cable
External universal switching power supply
Power cord
Limited warranty Printer: 2 years
Print head: 1 million inches (25 km) or 12 months which comes first
Platen: 50 km
Factory options USB host, for scanner or PC keyboard
Dealer options Peel off module
Guillotine cutter (full cut and partial cut)
