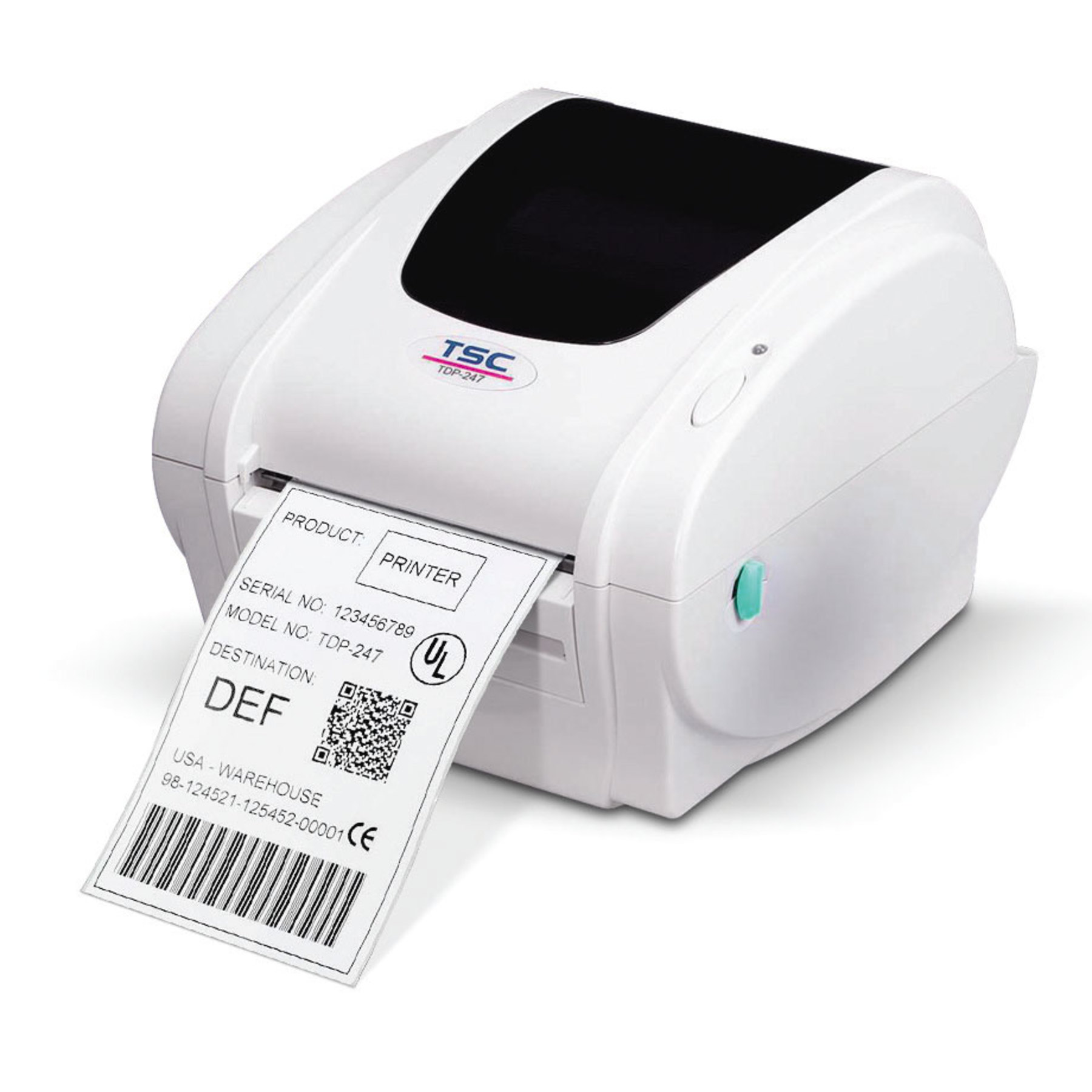

TSC TDP-247 Series Barcode Printer

The TDP-247 series direct thermal label printer offers best-in-class speed and high-resolution capabilities, along with a rugged, reliable design that has become the hallmark of the TSC printer family.

Add to Enquiry
Download PDF
Specification
Printer Specification
Memory
  • 4MB Flash memory
  • 8MB SDRAM
  • MicroSD card slot for memory expansion, up to 4 GB
Sensors
  • Transmissive gap sensor
  • Black mark reflective sensor (position adjustable)
  • Head open sensor
Resolution 8 dots/mm (203 DPI)
Processor 32-bit RISC CPU
Interface
  • USB 2.0
  • RS-232
  • Centronics
  • Internal Ethernet, 10/100 Mbps (factory option)
  • Bluethooth (user option)
Power Source External universal switching power supply:
Input: AC 100-240V, 2.5A, 50-60Hz
Output: DC 24V, 3.75A, 90W
Operation switch, button, LED One power switch, one feed button & one LED (3 colors)
Printer language TSPL-EZ™
Environment condition
  • Operation: 5 ~ 40oC (41 ~ 104oF), 25 ~ 85% non-condensing
  • Storage: -40 ~ 60oC (-40 ~ 140oF), 10 ~ 90% non-condensing
Weight 1.9 kg (4.19 lbs)
Printing Specification
Printing Method Direct Thermal
Printing Resolution 8 dots/mm (203 DPI)
Printing Speed Max 178 mm (7”)/second
Printing Length Max 2,286 mm (90“)
Printing Width Max 108 mm (4.25“)
Enclosure Double-walled plastic
Physical dimension 200 mm (W) x 164 mm (H) x 240 mm (D)
7.87“ (W) x 6.46“ (H) x 9.45“ (D)
Fonts / Graphics / Symbologies
Fonts
  • 8 alpha-numeric bitmap fonts
  • Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
1D Barcodes Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8,
EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET,
RSS-Stacked, GS1 DataBar, Code 11 China Post
2D Barcodes PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Font & bar code rotation 0, 90, 180, 270 degrees
Media and Ribbon Characteristics
Media Type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media wound type Outside wound
Media width 20 ~ 112 mm (0.78“ ~ 4.4“)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 76.2 mm (1” ~ 3”)
Label length 10 ~ 2,286 mm (0.4” ~ 90“)
Label roll capacity 127 mm (5“) OD
Optional
Safety regulation FCC Class B, CE Class B, C-Tick Class B, UL, CUL, TÜV/Safety, CCC, ENERGY STAR®
Accessories
  • Windows labeling software CD disk
  • Quick start guide
  • USB cable
  • Power cord
  • External universal switching power supply
  • Label spindle, fixing tab x 2, 1.5“ core adapter x 2
Limited warranty
  • Printer: 2 years
  • Print head: 25 km (1 million inches) or 12 months which comes first
  • Platen: 50 km (2 million inches) or 12 months which comes first
Factory options
  • Internal Ethernet interface (10/100 Mbps)
  • Real time clock
Dealer options
  • Peel off module
  • Guillotine cutter (full cut or partial cut)
User options
  • Bluetooth module (serial interface)
  • External roll mount, media OD. 214 mm (8.4”) on a 1” or 3” core
  • 3” core label spindle
  • KP-200 Plus keyboard display unit
  • KU-007 Plus programmable smart keyboard
