TSC TC200/210/300/310 Barcode Printer

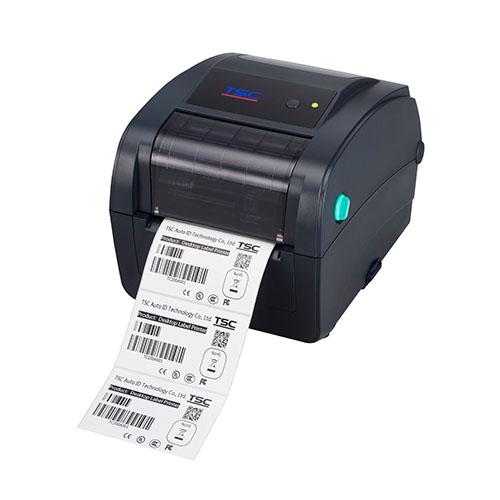

The TSC TC series of desktop thermal barcode printers is based on the best features our bestselling TTP-245C Series with some colorful improvements. Like the TTP-245C Series, the TC features a small footprint and the high performance that customers have come to expect from TSC. Durable, reliable and fast, TC series printers produce 4-inch-wide labels, tags or receipts at up to 6 ips, offering a price-performance combination that is unmatched by other desktop thermal barcode printers on the market.

Add to Enquiry
Download PDF
Specification
Printer Specification

TC200 / TC210 Specification

  TC200 TC210
Memory

4 MB Flash memory, 8 MB SDRAM,
SD Flash memory card reader for Flash memory expansion, up to 4 GB

128 MB Flash memory, 64 MB SDRAM, SD Flash memory card
reader for Flash memory
expansion, up to 32 GB
Sensors

Gap transmissive sensor
Black mark reflective sensor (position adjustable)
Head open sensor
Ribbon end sensor
Resolution 8 dots/mm (203 DPI)
Processor 32-bit RISC CPU
Interface

RS-232
Centronics
USB 2.0
Internal Ethernet, 10/100 Mbps
External Bluetooth
(user option)

RS-232
Centronics (factory option)
USB 2.0 (High speed mode)
Internal Ethernet, 10/100 Mbps
USB Host
External Bluetooth (user option)
Power Source External universal switching power supply:
Input: AC 100-240V, 2.5A, 50-60Hz
Output: DC 24V, 3.75A, 90W
Operation switch, button, LED

1 power switch
1 feed/pause button
1 LED with 3 colors (red, green, amber)

1 power switch
6 operation buttons (menu, feed/pause, up, down, left, right)
1 LED with 3 colors (red, green, amber)

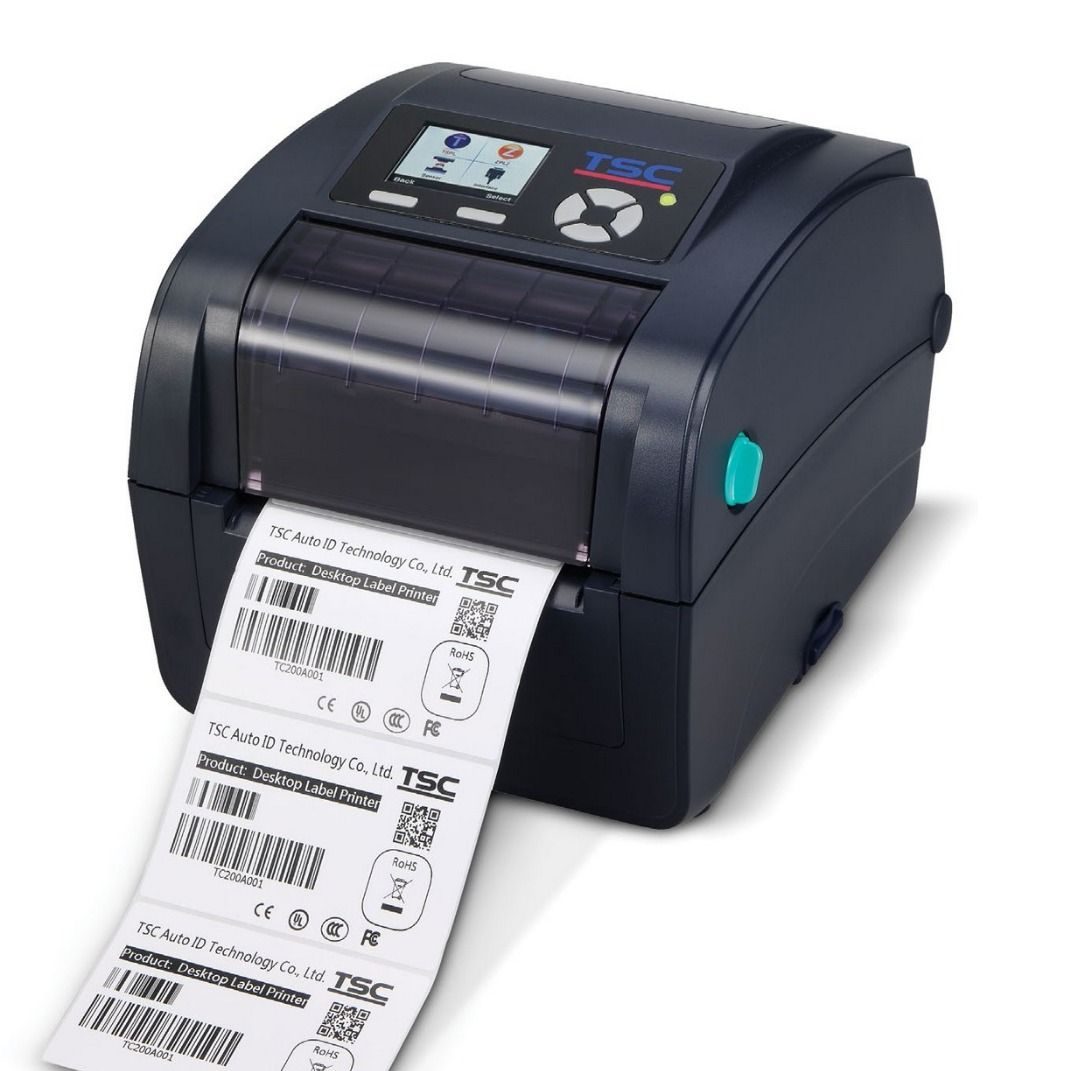

2.3” color TFT display, 320 x 240 pixel
Printer language TSPL-EZ™ (Compatible to EPL, ZPL, ZPL II)
Environment condition

Operation: 5 ~ 40oC (41 ~ 104oF), 25 ~ 85% non-condensing
Storage: -40 ~ 60oC (-40 ~ 140oF), 10 ~ 90% non-condensing

TC300 / TC310 Specification

  TC300 TC310
Memory 4 MB Flash memory, 8 MB SDRAM,
SD Flash memory card reader for Flash memory expansion, up to 4 GB		 128 MB Flash memory, 64 MB SDRAM, SD Flash memory card
reader for Flash memory
expansion, up to 32 GB
Sensors

Gap transmissive sensor
Black mark reflective sensor (position adjustable)
Head open sensor
Ribbon end sensor
Resolution 12 dots/mm (300 DPI)
Processor 32-bit RISC CPU
Interface

RS-232
Centronics
USB 2.0
Internal Ethernet, 10/100 Mbps
External Bluetooth
(user option)

RS-232
Centronics (factory option)
USB 2.0 (High speed mode)
Internal Ethernet, 10/100 Mbps
USB Host
External Bluetooth (user option)
Power Source External universal switching power supply:
Input: AC 100-240V, 2.5A, 50-60Hz
Output: DC 24V, 3.75A, 90W
Operation switch, button, LED

1 power switch
1 feed/pause button
1 LED with 3 colors (red, green, amber)

1 power switch
6 operation buttons (menu, feed/pause, up, down, left, right)
1 LED with 3 colors (red, green, amber)
2.3” color TFT display, 320 x 240 pixel
Printer language TSPL-EZ™ (Compatible to EPL, ZPL, ZPL II)
Environment condition

Operation: 5 ~ 40oC (41 ~ 104oF), 25 ~ 85% non-condensing
Storage: -40 ~ 60oC (-40 ~ 140oF), 10 ~ 90% non-condensing
Printing Specification

TC200 / TC210 Specification

  TC200 TC210
Printing Method Thermal Transfer & Direct Thermal
Printing Resolution 8 dots/mm (203 DPI)
Printing Speed Max 152 mm (6”)/second
Printing Length Max 2,286 mm (90”) 25,400 mm (1,000”)
Printing Width Max 108 mm (4.25“)
Enclosure Double-walled plastic
Physical dimension 203 mm (W) x 191.5 mm (H) x 259.3 mm (D)
7.99” (W) x 7.54” (H) x 10.21” (D)

TC300 / TC310 Specification

  TC300 TC310
Printing Method Thermal Transfer & Direct Thermal
Printing Resolution 12 dots/mm (300 DPI)
Printing Speed Max 102 mm (4”)/second
Printing Length Max 1,016 mm (40”) Max 11,430 mm (450”)
Printing Width Max 105.6 mm (4.15”)
Enclosure Double-walled plastic
Physical dimension 200 mm (W) x 164 mm (H) x 240 mm (D)
7.87“ (W) x 6.46“ (H) x 9.45“ (D)
Fonts / Graphics / Symbologies
Fonts

8 alpha-numeric bitmap fonts

Monotype Image® true type font engine with one CG Triumvirate Bold Condensed scalable font
1D Barcodes Code 39, Code 93, Code 128UCC, Code 128 subset A, B, C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2 (5) digits add-on, MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar, Code 11 China Post
2D Barcodes PDF-417, Maxicode, DataMatrix, QR Code, Aztec
Font & bar code rotation 0, 90, 180, 270 degrees
Media and Ribbon Characteristics

TC200 / TC210 Specification

  TC200 TC210
Media Type Continuous, die-cut, black mark, fan-fold, notch
Media width 20 ~ 112 mm (0.79” ~ 4.4“)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 38.1 mm (1“ ~ 1.5“)
Label length 10 ~ 2,286 mm (0.39“ ~ 90“) 10 ~ 25,400 mm (0.39“ ~ 1,000“)
Label roll capacity 127 mm (5“) OD
Ribbon 110 m long, max. OD 40 mm, 0.5” core (ink coated outside)
Ribbon width 40 mm ~ 110 mm (1.57“ ~ 4.33“)



  TC300 TC310
Media Type Continuous, die-cut, black mark, fan-fold, notch
Media width 20 ~ 112 mm (0.79” ~ 4.4“)
Media thickness 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil)
Media core diameter 25.4 ~ 38.1 mm (1“ ~ 1.5“)
Label length 10 ~ 1,016 mm (0.39“ ~ 40“) 10 ~ 11,430 mm (0.39“ ~ 450“)
Label roll capacity 127 mm (5“) OD
Ribbon 110 m long, max. OD 40 mm, 0.5” core (ink coated outside)
Ribbon width 40 mm ~ 110 mm (1.57“ ~ 4.33“)
Optional
Safety regulation FCC Class B, CE Class B, C-Tick Class B, UL, cUL, TÜV/safety, CCC, CoC-Mexico, ENERGY STAR®
Accessories
  • Windows labeling software CD disk
  • Quick start guide
  • USB cable
  • Power cord
  • External universal switching power supply
Limited warranty
  • Printer: 2 years
  • Print head: 25 km (1 million inches) or 12 months which comes first
  • Platen: 50 km (2 million inches) or 12 months which comes first
Dealer options
  • Peel off module
  • Guillotine cutter (full cut or partial cut)
User options
  • Bluetooth module (serial interface)
  • External roll mount with 3” core label spindle
  • Sleeve adapter
  • KP-200 Plus keyboard display unit
  • KU-007 Plus programmable smart keyboard
