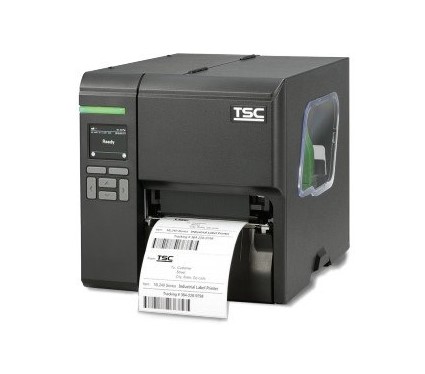

TSC ML Series Performance Printer – ML240P/340P
TSC ML240P Series is a brand new generation of industrial barcode label printers. The light industrial ML240P Series features ease of use, intuitive color GUI display, noise-reduced printing, and self-diagnostic TPH Care. The ML240P Series has a durable and flexible design and does not require special tools for performing common service and maintenance. Its compact footprint is perfect for crowded work environments. The ML240P Series is designed for durability while producing high quality printed labels. With its enhanced design and printing algorithm, the noise level from printing operation is dramatically reduced. The adjustable thermal printhead and self-diagnostic TPH Care mechanism ensure optimal print quality regardless of the application or label design
Specification
Memory | • 128 MB Flash memory • 64 MB SDRAM |
---|---|
Sensors | • Gap transmissive sensor (position adjustable) • Black mark reflective sensor (position adjustable) • Head open sensor • Ribbon end sensor |
Processor | 32-bit RISC CPU |
Interface | • RS-232 • USB 2.0 • Internal Ethernet, 10/100 Mbps • USB host, for scanner or PC keyboard • Internal Bluetooth 4.2 (dealer option) • Slot-in 802.11 a/b/g/n wireless (dealer option) |
LCD display/ Operation buttons | • 2.3” color LCD • 1 status indicator • 6 buttons (Menu, Pause/Feed, Up, Down, Left, Right) |
Printer language | TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL) |
Environment condition | • Operation: 5 ~ 40°C, 25 ~ 85% non-condensing • Storage: -40 ~ 60°C, 10 ~ 90% non-condensing |
Real time clock | Standard |
Enclosure | Die-cast print mechanism/Metal cover with large media window |
Physical dimension | 248 mm (W) x 245 mm (H) x 330 mm (D) 9.76” (W) x 9.65” (H) x 12.99” (D) |
ML240P | ML340P | |
---|---|---|
Printing Method | Direct Thermal & Thermal Transfer | |
Resolution | 8 dots/mm (203 DPI) | 12 dots/mm (300 DPI) |
Max. Print Speed | 152 mm (6”)/second | 127 mm (5”)/second |
Max. Print Width | 108 mm (4.25″) | 105.7 mm (4.16″) |
Max. Print Length | 2,794 mm (110”) | 1,016 mm (40”) |
ML240P | ML340P | |
---|---|---|
Media Type | Continuous, die-cut, black mark, fan-fold, notched (outside wound) | |
Media thickness | 0.06 ~ 0.19 mm (2.36 ~ 7.48 mil) | |
Media core diameter | 25.4 mm or 38.1 mm (1” or 1.5”) | |
Media width | 20 ~ 118 mm (0.8” ~ 4.7”) | 20 ~ 114.3 (0.79” ~ 4.5”) for peel or cutter mode |
Label length | 5 ~ 2,794 mm (0.2” ~ 110”) | 5 ~ 1,016 mm (0.2” ~ 40”) |
Label roll capacity | 139.7 mm (5.5“) O.D., 1” or 1.5” I.D core | |
Ribbon | 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside) | |
Ribbon width | 40 mm ~ 110 mm (1.6” ~ 4.3”) |
Accessories | • Windows labeling software CD disk • Quick start guide • USB cable • Power cord |
---|---|
Dealer options | • Peel-off kit • Regular cutter (full cut guillotine cutter) • Internal Bluetooth 4.2 • 802.11 a/b/g/n wireless module (for device without slot-in housing)* |
User options | • KP-200 Plus keyboard display unit • 802.11 a/b/g/n wireless module (for device with slot-in housing) |
