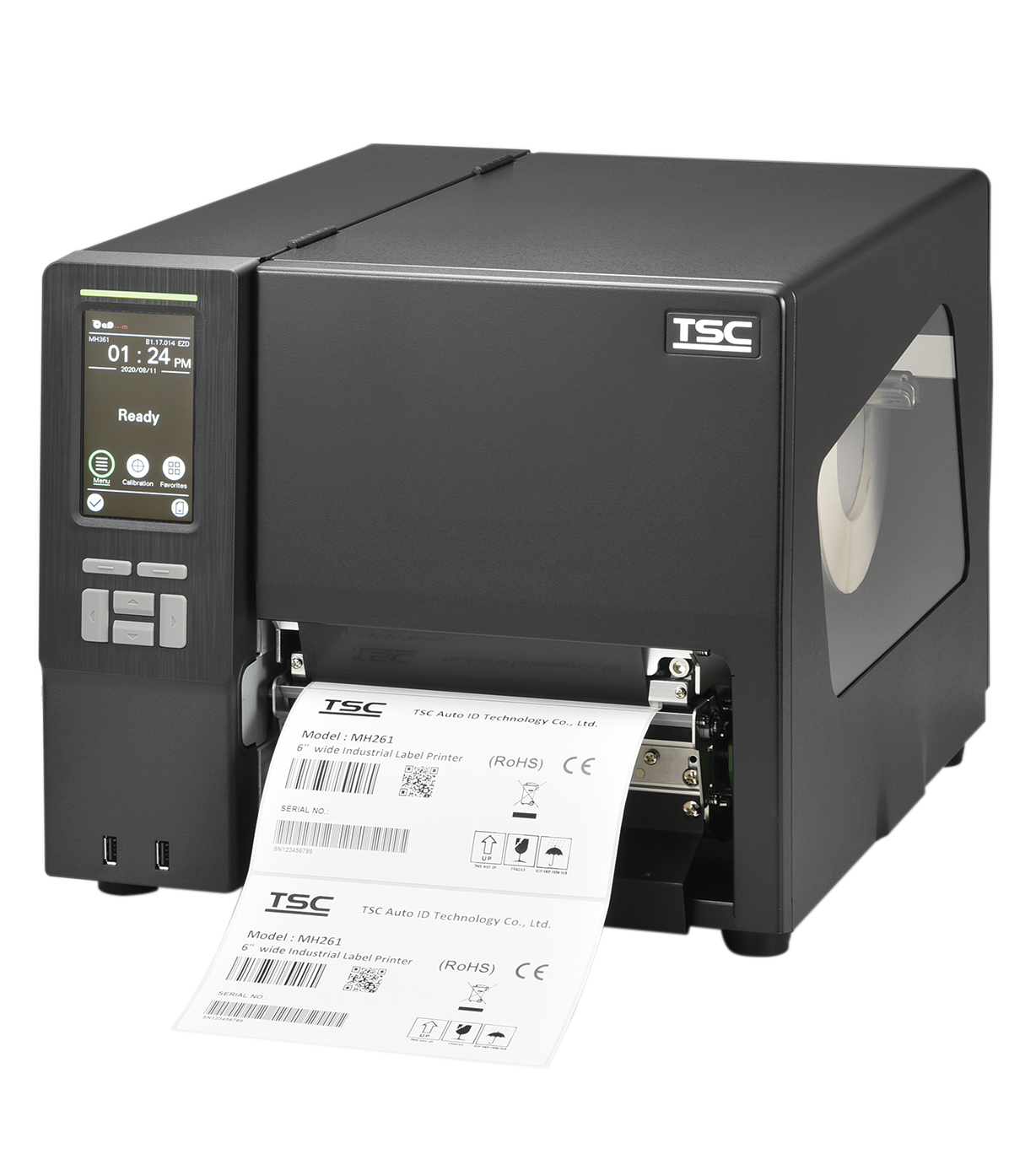

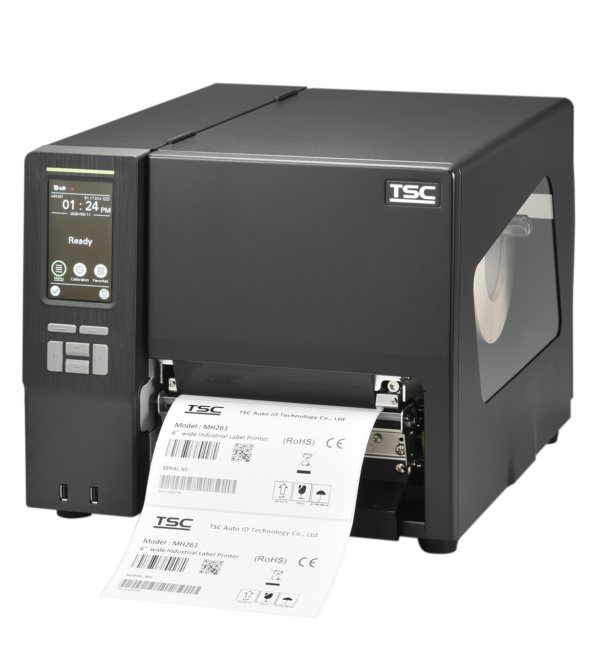

TSC MH Series 6″ Touch Screen Industrial Printer – MH261T/361T

The MH261 Series is TSC’s mainstream industrial barcode label printer built upon the legacy of the MH240 Series. It brings new features to those looking for solutions to address evolving business challenges from growing production line demands to increasing operational complexities. This series offers Color touch screen is an great option which provides color GUI display with ease of operation.

Add to Enquiry
Download PDF
Specification
Printer Specification
Memory 512 MB Flash memory
256 MB SDRAM
microSD Flash memory card reader for Flash memory expansion, up to 32 GB
Sensors • Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (Bottom or Top black mark sensor switchable and position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
Processor 32-bit RISC CPU
Interface • RS-232
• Parallel
• USB 2.0 (High speed mode)
• Internal Ethernet, 10/100 Mbps
• USB host *2 (Front side), for scanner or PC keyboard
• GPIO (DB15F)  (factory option)
• Slot-in 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (dealer option)
Power Auto sensing power supply
• Input: AC 100-240V, 4-2A, 50-60Hz
• Output: DC 5V, 5A; DC 24V, 7A; DC 36V, 1.4A; Total 243W
LCD display/ Operation buttons • Multi-language selectable
• 6 operation buttons
• 1 LED (with 2 LEDs Green & Red)
• 4.3” color display, 480 x 272 pixel; Resistive touch screen
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment condition • Operation: 0 ~ 40˚C (32 ~ 104˚F), 25~ 85% non-condensing
• Storage: -40 ~ 60 ˚C (-40 ~ 140˚F), 10~ 90% non-condensing
Real time clock Standard

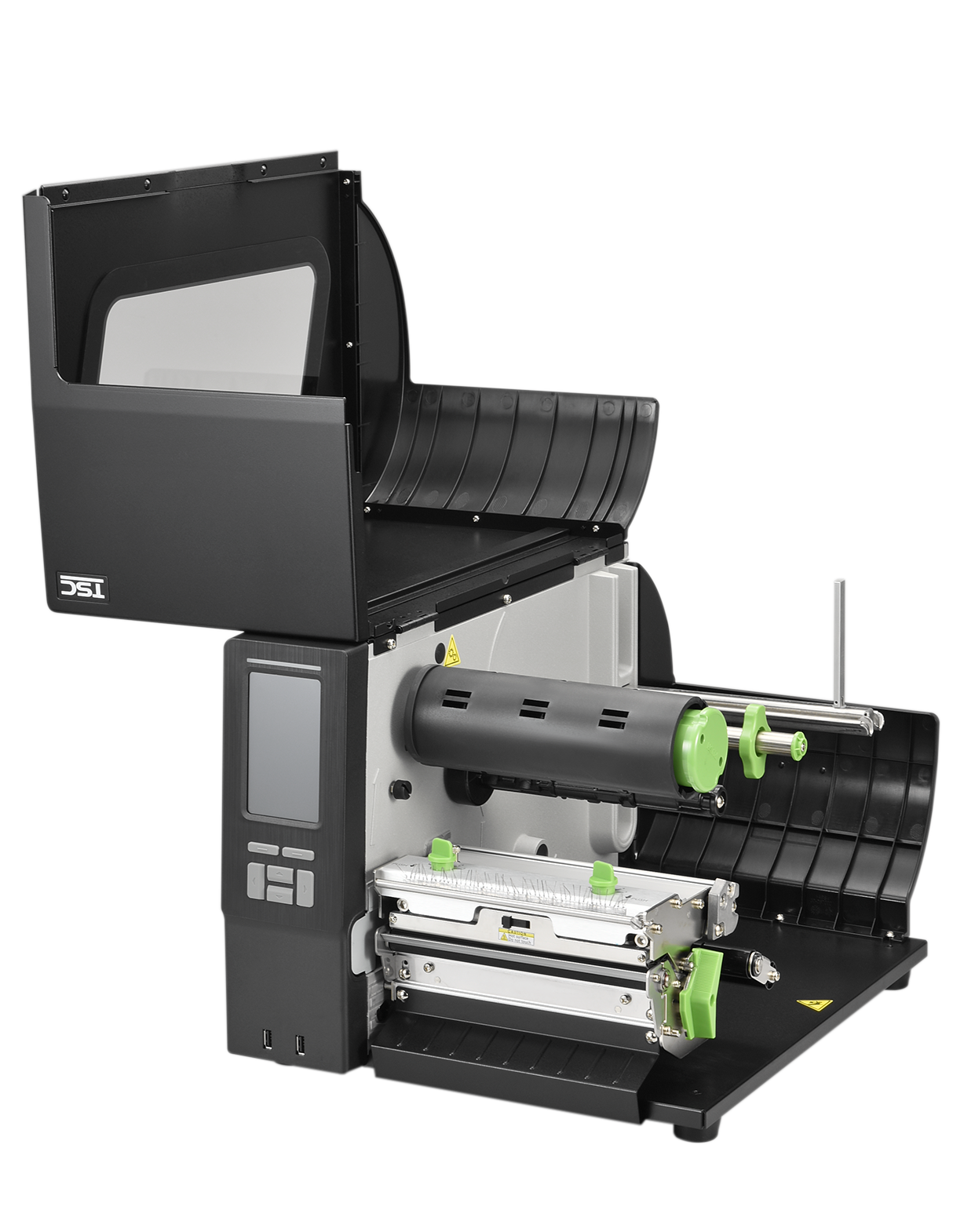

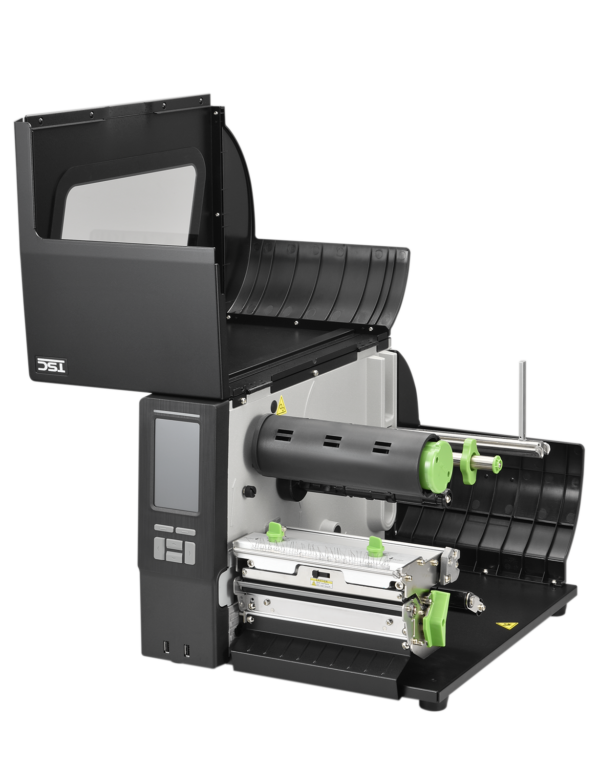

Enclosure Die-cast print mechanism with large clear media view window
Physical dimension 357 mm (W) x 313 mm (H) x 514 mm (D)
14.05” (W) x 12.32 (H) x 20.24” (D)
Printing Specification
  MB261T MB361T
Printing Method Direct Thermal & Thermal Transfer
Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Max. Print Speed 306 mm (12”)/second 254 mm (10”)/second
Max Print Width 168 mm (6.61”)
Max. Print Length 14,732 mm (580“) 6,604 mm (260“)
Media and Ribbon Characteristics
  MB261T MB361T
Media Type Continuous, die-cut, black mark (Bottom side or top side black mark), fan-fold, notch, perforated, tag, care label (outside wound)
Media width 50.8 ~ 172.7 mm (2“~ 6.8“)
Media thickness 0.06 ~ 0.268 mm (2.36~ 11.02 mil)
Media core diameter 3.81 mm / 76.2 mm (1.5”/ 3”)
Label length 10 ~14,732 mm (0.39“~ 580“) 10 ~ 6,604 mm (0.39“~ 260“)
Label roll capacity 208.3 mm (8.2”) OD
Ribbon 450 m long, max. O.D. 81 mm, 1“ core (Ink coated outside or inside)
Ribbon width 50.8 mm ~ 178 mm (2” ~ 7”)
Options and Accessories
Accessories • Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
Dealer options • GPIO (DB15F)
• Heavy-duty cutter
• 802.11 a/b/g/n/ac Wi-Fi with Bluetooth 4.2 combo module (including slot-in housing) *
• Peel-off kit
• Internal rewinder kit (5” O.D.)
User options • KP-200 Plus keyboard display unit
