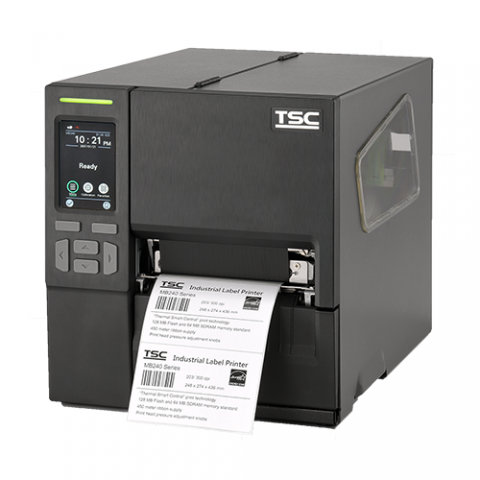

TSC MB Series Touch Screen Light Industrial Printer – MB240T/340T

TSC MB240T series of industrial thermal label printers is the new value leader for 4” wide light industrial label printing. The MB240T series is designed to fit in alongside TSC’s bigger industrial printer models including the MH240 Series. The MB240T features a small footprint, easily understandable operator interface and a full set of options to meet nearly every printing application.

Its compact design, quiet operation and fast label throughput is equally at home in the office or shop floor. The printer’s all-metal construction and die-cast aluminum print mechanism engine is durable enough to withstand the toughest production environments and is designed for years of trouble free use.

Add to Enquiry
Download PDF
Specification
Printer Specification
Memory • 128 MB Flash memory
• 128 MB SDRAM
Sensors • Gap transmissive sensor (position adjustable)
• Black mark reflective sensor (position adjustable)
• Head open sensor
• Ribbon encoder sensor
• Ribbon end sensor
Processor 32-bit RISC CPU
Interface • RS-232
• USB 2.0
• Internal Ethernet, 10/100 Mbps
• USB host, for scanner or PC keyboard
• GPIO (dealer option)
• Internal Bluetooth 4.2 (dealer option)
• Slot-in 802.11 a/b/g/n wireless (dealer option)
Power Internal switching power supply
• Input: AC 100-240V, 2.0A, 50-60Hz
• Output: DC 24V, 3.75A, 90W
LCD / LED / Buttons • DC 24V, 3.75A, 90W
• 1 status indicator
• 6 buttons (Menu, Pause/Feed, Up, Down, Left, Right)
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment condition • Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10 ~ 90% non-condensing
Real time clock Standard
Enclosure

Die-cast based print mechanism/Metal cover with large clear media view window
Physical dimension • 248 mm (W) x 274 mm (H) x 436 mm (D)
• 9.76” (W) x 10.79” (H) x 17.17” (D)
Printing Specification
  MB240T MB340T
Printing Method Direct Thermal & Thermal Transfer
Resolution 8 dots/mm (203 DPI) 12 dots/mm (300 DPI)
Max. Print Speed 254 mm (10”)/second 178 mm (7”)/second
Max. Print Width 108 mm (4.25″) 105.7 mm (4.16″)
Max. Print Length 25,400 mm (1000”) 11,430 mm (450”)
Media and Ribbon Characteristics
  MB240T MB340T
Media Type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 20 ~ 120 mm (0.8” ~ 4.7”)
Media thickness 0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media core diameter 25.4 mm ~ 76.2 mm (1” ~ 3”)
Label length 5 ~ 2,540 mm (0.20” ~ 100”) 5 ~ 11,430 mm (0.2″ ~ 1000″)
Label roll capacity 203.2 mm (8”) OD
Ribbon 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside)
Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”)
Options and Accessories
Accessories • Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
Dealer options • Peel-off kit
• 5” OD internal rewinding kit
• Regular guillotine cutter (full cut)
• GPIO
• 802.11 a/b/g/n wireless module (for device without slot-in housing)*
• Internal Bluetooth 4.2**
User options • KP-200 Plus keyboard display unit
• 802.11 a/b/g/n wireless module (for device with slot-in housing)
