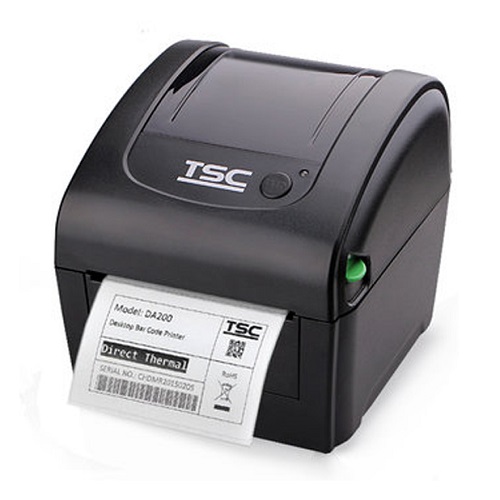

TSC DA Series Direct Thermal Desktop Printer – DA210/220

The DA210/DA220 Series of direct thermal desktop printers are ideal for a wide variety of applications including product marking, point of sale, retail, small office, shipping labels, and other labeling and tag applications at a very competitive price.

4 Models Available
The DA210/DA220 Series consists of 4 models designed to provide the right fit for your application. All four models handle up to 5″ OD rolls of direct thermal labels and can print crisp, clear barcodes, graphics and text at up to 6 inches per second.

Download PDF
Specification
Printer Specifications
  DA210 DA220
Memory • 8 MB Flash memory
• 16 MB DRAM
• 128 MB Flash memory
• 64 MB DRAM
Sensors • Transmissive gap sensor
• Black mark reflective sensor (position adjustable)
• Head open sensor
Processor 32-bit RISC CPU
Interface • USB 2.0 (High speed  mode)
• Internal Bluetooth (factory option)
• PCBA1: USB 2.0 high speed mode, USB Host,
RS-232 and Ethernet (standard)
• PCBA2: USB 2.0 and Ethernet (factory option)
• Internal 802.11 a/b/g/n wireless (factory option)
• Internal Bluetooth (factory option)
Power External universal switching power supply:
• Input: AC 100-240V, 1A, 47-63Hz
• Output: DC 24V, 2.08A, 50W
Operation switch, button, LED 1 power switch, 1 feed button & 1 LED (3 colors: green, amber & red)
Printer language TSPL-EZD (Compatible to EPL, ZPL, ZPL II, DPL)
Environment condition • Operation: 5 ~ 40°C, 25 ~ 85% non-condensing
• Storage: -40 ~ 60°C, 10~ 90% non-condensing
Enclosure Double-walled plastic

Physical dimension

172 mm (W) x 165 mm (H) x 195 mm (D)
6.77“ (W) x 6.50“ (H) x 7.68“ (D)
Printing Specifications
  DA210 DA220
Printing Method Direct Thermal
Resolution 8 dots/mm (203 DPI)
Max Print Speed 152.4 mm (6”)/second
Max Print Length 2,794 mm (110”) 25,400 mm (1000”)

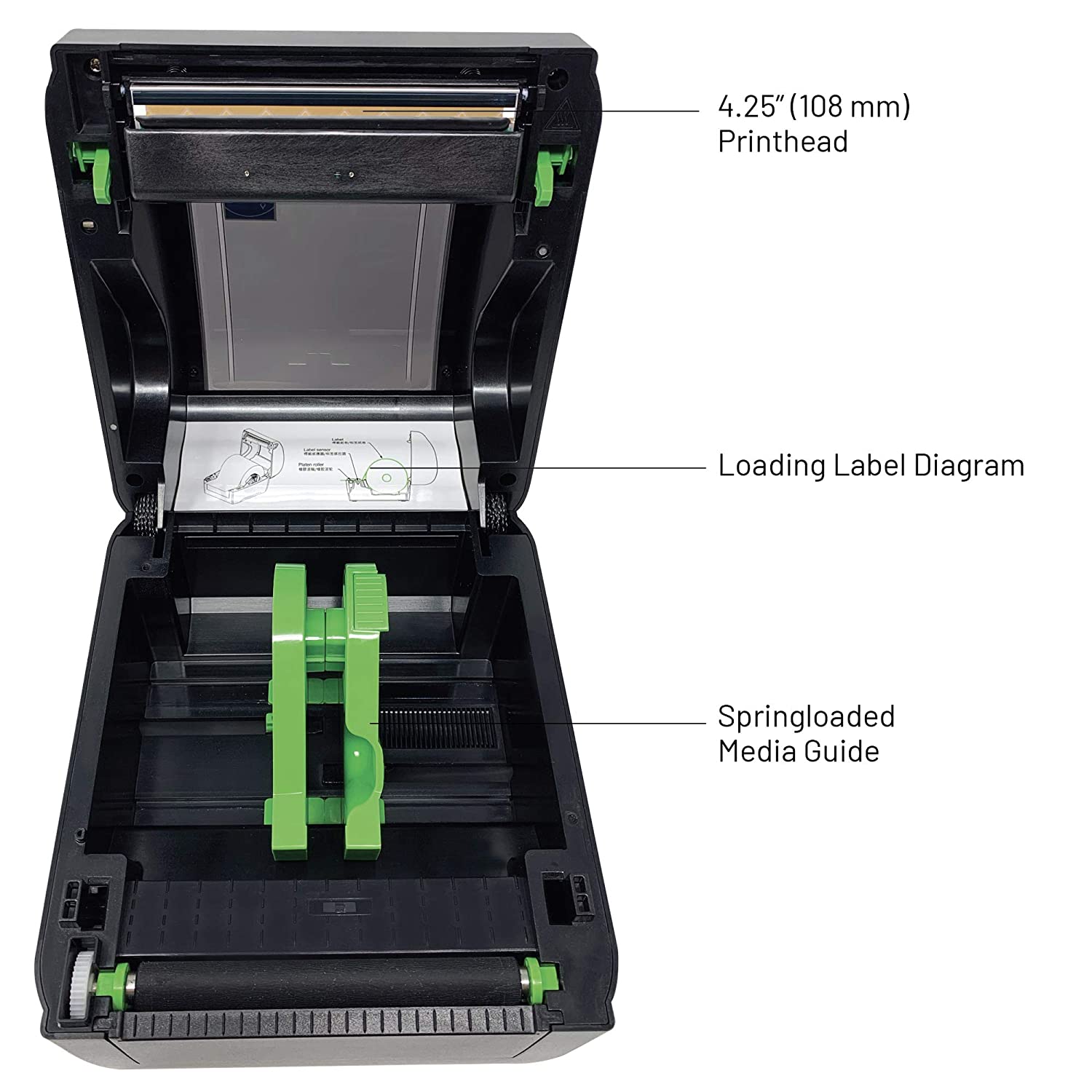

Max Print Width 108 mm (4.25”)
Media and Ribbon Characteristics
  DA210 DA220
Media Type Continuous, die-cut, black mark, fan-fold, notched (outside wound)
Media width 20 ~ 120 mm (0.8” ~ 4.7”)
Media thickness 0.06 ~ 0.28 mm (2.36 ~ 11 mil)
Media core diameter 25.4 mm ~ 76.2 mm (1” ~ 3”)
Label length 5 ~ 2,540 mm (0.20” ~ 100”) 5 ~ 11,430 mm (0.2″ ~ 1000″)
Label roll capacity 203.2 mm (8”) OD
Ribbon 450 m long, max. O.D. 81.3 mm, 1“ core (ink coated outside or inside)
Ribbon width 40 mm ~ 110 mm (1.6” ~ 4.3”)
Options and Accessories
  DA210 DA220

Accessories

• Windows labeling software CD disk
• Quick start guide
• USB cable
• Power cord
• External universal switching power supply
Factory options • Internal Bluetooth • Real Time Clock
• Internal 802.11 a/b/g/n wireless
• Internal Bluetooth
• PCBA2: USB2.0 and Ethernet
• Linerless with cutter
• Linerless with tear
Dealer options   • Peel-off module
• Guillotine cutter (full cut or partial cut)

User options

• 1.5” adaptor for 1.5” paper core
• External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core

• 1.5” adaptor for 1.5” paper core
• External roll mount, media OD. 214 mm (8.4”) with 76.2 mm (3”) core
• KP-200 Plus keyboard display unit (serial interface)
