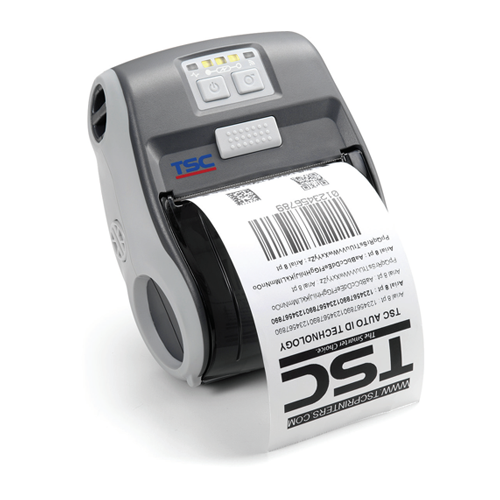

TSC Alpha-3R Mobile Printer
Enjoy TSC’s reputation for cost-efficient, high durability printers with the Alpha-3R economical printer. The Alpha-3R is a comfortable, light-weight printer capable of working with any mobile printing application where you need quick, simple receipts/labels on demand.
Our Alpha-3R is designed for a rough life, inside the IP54-rated protective case to resist dust and water and with its rubber over-mold design prepared to take up to a five foot fall and keep printing.
Specification
Specification
Resolution | 8 dots/mm (203 DPI) |
---|---|
Printing method | Direct Thermal |
Max. print speed | 152 mm (6”)/second |
Max. print width | 72 mm (2.83”) |
Max. print length | 2,286 mm (90“) |
Enclosure | Plastic with rubber over-mold construction |
Physical dimension | 116 mm (W) x 148 mm (H) x 70 mm (D) 4.57”(W) x 5.83”(H) x 2.75”(D) |
Weight | 0.55 kg (1.212 lbs) |
Drop specification | 1.5 m (5 ft) |
IP rating | IP54 (w/case) |
Max. roll capacity | Receipt: 57 mm (2.25”) OD Label: 55 mm (2.16”) OD |
Processor | 32-bit RISC CPU |
Memory | 4 MB Flash memory 8 MB SDRAM |
Interface | USB 2.0 802.11 b/g/n Wireless (factory option) Bluetooth (factory option) RS-232 (user option) |
Power | Two-cell, 7.4V DC, 2500 mAh Li-ion rechargeable battery |
Operation switch, button | 3 buttons (On/off, feed, and cover-open) 2 color LED for printer status, 3 LEDs for battery status |
Sensors | Reflective sensor Head open sensor |
Internal fonts | 8 alpha-numeric bitmap fonts One Monotype Imaging® CG Triumvirate Bold Condensed scalable font |
Bar code | 1D bar code : Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 Data bar 2D bar code : PDF-417, Maxicode, DataMatrix, QR Code, Aztec |
Font and barcode rotation | 0, 90, 180, 270 degree |
Printer language | TSPL-EZTM (Compatible to EPL, ZPL, ZPL II) or CPCL emulation |
Media type | Receipt paper, Bline receipt paper (Black mark in printing side) & Selected label |
Media width | Receipt: 50.8 ~ 80 mm (2” ~ 3.15”) Label: 50.8 ~ 78 mm (2” ~ 3.07”) |
Media thickness | Receipt: 0.0508 ~ 0.1016 mm (2 ~ 4 mil) Label: Fasson standard label media up to 0.14 mm (5.5 mil) |
Media core diameter | 10.2 ~ 25.4 mm (0.4“ ~ 1“) |
Media height | Label: Min. 25.4 mm (1”) |
Environment condition | Operation: -10 ~ 50 °C (14 ~ 122 °F), 10 ~ 90% non-condensing Storage: -40 ~ 60 °C (-40 ~ 140 °F), 10 ~ 90% non-condensing |
Safety regulation | FCC , CE , CB , CCC, C-Tick |
Environmental concern | Comply with RoHS, WEEE |
Accessories | Windows labeling software CD disk Quick start guide Belt Clip Li-ion battery Power adapter |
Limited warranty | Printer: 2 years Print head: 25 km (1 million inches) or 12 months which comes first Platen: 50 km (2 million inches) or 12 months which comes first |
Factory options | 802.11 b/g/n Wireless network Bluetooth module |
User options | USB to RS-232 converter cable USB cable Li-ion battery Charge station 1 cell (with changeable power connector) Vehicle power adapter IP54-rated environmental case with shoulder strap |
