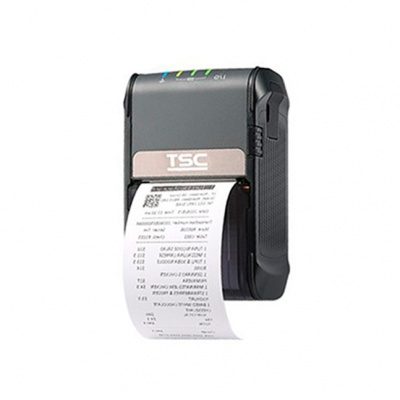

TSC Alpha-2R Mobile Printer

  • IP54-rated environmental case to resist the dust and water
  • Plastic design construction that withstands 1.5 m (5 ft) drop
  • Wired & wireless communication interfaces: USB 2.0, RS-232, Bluetooth 4.0, Bluetooth 4.2 + MFi, NFC and 802.11 a/b/g/n
  • Wi-Fi Certified™
  • High capacity 1620 mAh rechargeable Lithium Ion batteries
  • Large paper capacity to reduce the frequency of changing paper roll
  • High-speed processor and extensive memory for fast print speeds of up to 102 mm (4”) per second
  • Lasts more than 17 hours of printing receipts on a single battery charge
  • Supports TSPL-EZ (EPL2 and ZPL emulations), ESC-POS, CPCL emulation
  •  2-year standard warranty
  • ENERGY STAR® qualified
Download PDF
Specification
Printer Specification
Memory

128 MB Flash memory
64 MB SDRAM

Sensors

Reflective sensor
Head open sensor

Resolution 8 dots/mm (203 DPI)
Processor 32-bit RISC CPU
Interface

USB 2.0
802.11 a/b/g/n wireless (factory option)
Bluetooth 4.0 (factory option)
Bluetooth 4.2 + MFi (factory option)
NFC (factory option)
RS-232 (user option)

Power Source Two-cell, 7.4V DC, 1620 mAh Li-ion rechargeable battery
Operation switch, button, LED 3 buttons (On/off, feed, and cover-open)
2 color LED for printer status, 3 LEDs for battery status
Printer language TSPL-EZ (EPL2, ZPL2), ESC-POS or CPCL emulation

Environment condition

Operation: -20 ~ 50 ºC (-4 ~ 122 °F), 10 ~ 90% non condensing
Storage: -30 ~ 70 ºC (-22 ~ 158 °F), 10 ~ 90% non-condensing

Printing Specification
Printing Method Direct Thermal
Printing Resolution 203 dpi(8 dots/mm)
Printing Speed Max 102 mm (4”)/second
Printing Length Max 2,286 mm (90“)
Printing Width Max 48 mm (1.89”)
Enclosure Plastic
Physical dimension 89.3 mm (W) x 134.5 mm (H) x 56.5 mm (D)
3.52” (W) x 5.3” (H) x 2.22” (D)
Fonts / Graphics / Symbologies
Fonts 8 alpha-numeric bitmap fonts
Monotype Imaging® true type font engine with one CG Triumvirate Bold Condensed scalable font
1D Barcodes Code 39, Code 93, Code128UCC, Code128 subsets A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on, MSI, PLESSEY, POSTNET, China POST, GS1 Data bar
2D Barcodes PDF-417, Maxicode, DataMatrix, QR code, Aztec
Media and Ribbon Characteristics
Media Type Receipt paper, bline receipt paper (mark in printing side) & selected label
Media width Max 58 mm (2.28”)
*with adapter: 50.8 mm (2’’) and 25.4 mm (1’’) (user option)
Media thickness Receipt: 0.05 ~ 0.10 mm (2 ~ 4 mil)
Label: Fasson media up to 0.14 mm (5.5 mil)
Media height Label: Min. 25.4 mm (1”)
