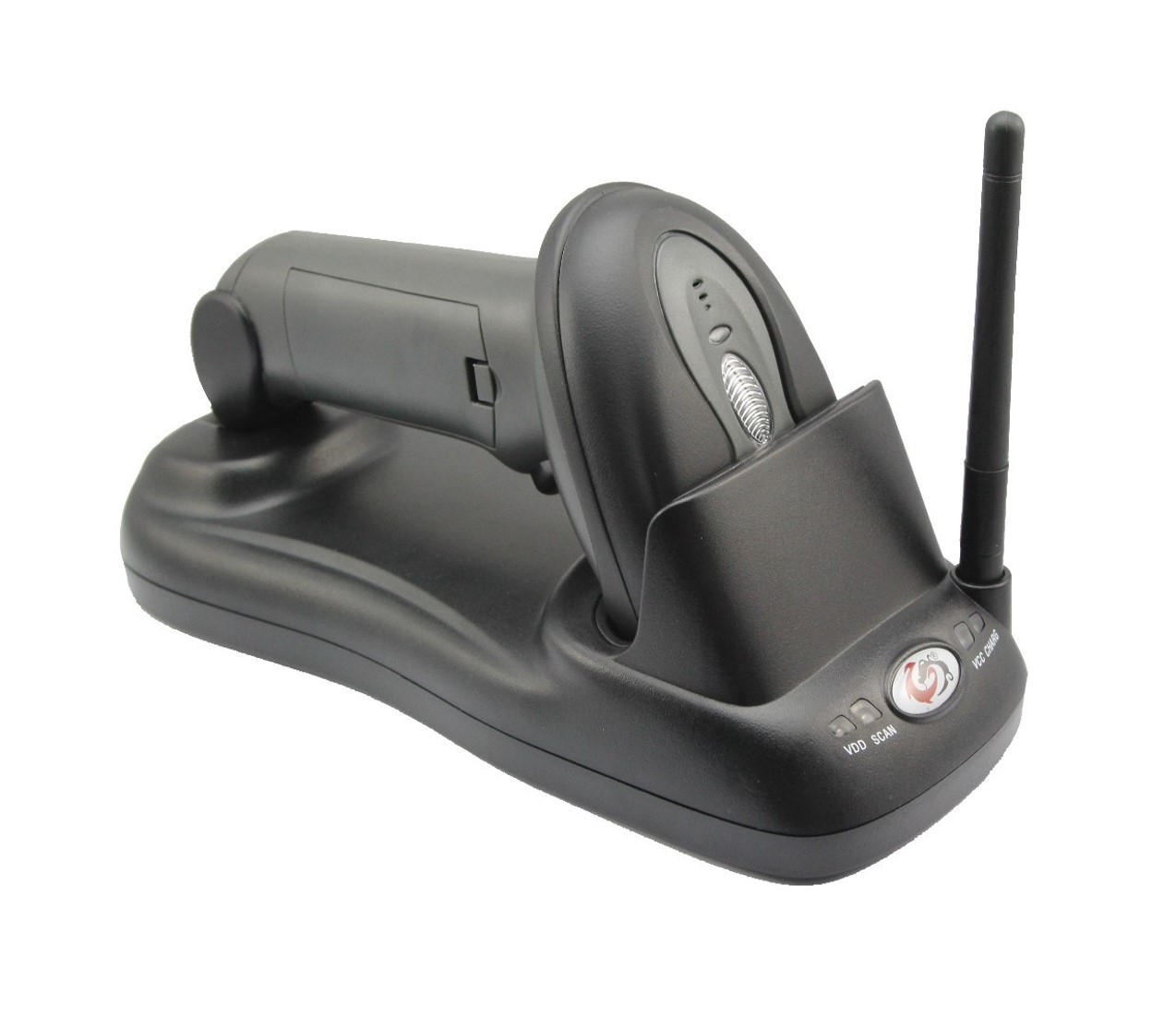

Sunlux XL-9310 1D Bluetooth Barcode Scanner

  • IP54 & withstand 1.5M drops
  • 1 base frame can support 99 scanners
  • Wireless induction charge without cable
  • One full charge support 100,000 times scan
  • 600M communication distance on open places
  • Memory card inserted, can store 100,000 EAN-13 barcode
Download PDF
Scanner Specification
Light Source Visible Laser Diode 650m
Scan Pattern Single Scan & Manual
Working Frequency 433 MHz ISM frequency
Communication distance Up to 600m at open places
Scan Precision 4mil (0.1mm)
Scan Rate 300 times/second
Scan Width 30mm@scan window,220mm@200m
Depth of Scan Field 0-280mm(0.33mm,PCS=90%)
Scan Angle 30° &65° & 55°
Support Interface RS232,PS2 and USB
Print Contrast 10% UPC/EAN 100%
Size L × W × H:170mm × 71mm × 98mm
Charge Mode Induction Charging
Weight 797.4g
Material ABS+PC
Voltage 2200 mAh/DC 5V
Operating Current 110mA/35mA
EMC CE & FCC DOC compliance
IP Standard IP54
Decoding Capability all 1D barcode including GS1
Humidity 5% to 95% relative humidity
Shock 1.5M drops
Decoding Capability Industrial 2 of 5 /Standard 25/Matrix 25/Code 11/ Codabar/ MSI/ plesseyUK/ plessey/Code39(Standard 39 & Full ASCII Code 39)Code 32/ Code 93/Code128/UPCA/UPCE/EAN13/EAN8/UPC/EAN add-on 2/5/ISBN /ISSN/GS1(RSS) RSS-14/LIMITEDEXPENDED/Include GS1 STACK
