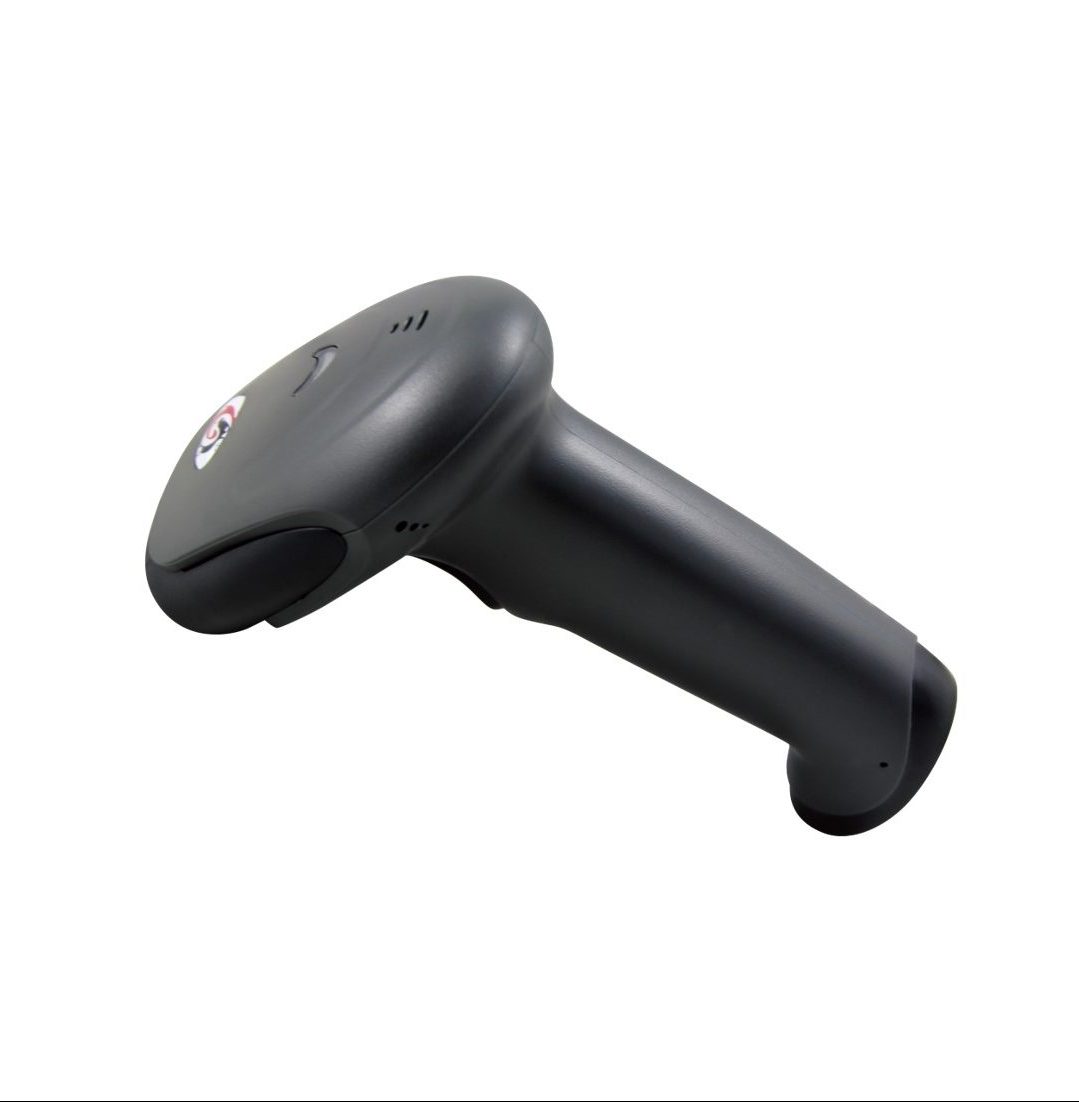

Sunlux XL-6500 1D Laser Scanner

  • Self knowledge property right, personalized customization is welcome
  • Support serial port command setting, make the second development convenient
  • Firmware update online with USB cable.
  • Support black and white inverse barcode decode.
  • Aggressive scanning performance on difficult codes.(low print contrast, damaged, fuzzy and long codes)
Download PDF
Specification
Technical Spec.
Light Source Visible Laser Diode 650nm
Scan Pattern Single Scan
Decode Rate 300 times/second
Scan Precision 4mil
Scan Width 30mm@scan window, 220mm@200mm
Scan Depth of field 0-330mm (0.33mm pcs0.9)
Elevation Angle 65
Deflection Angle 55
Support Interface PS-2(KB); RS-232; USB-HID; USB-Virtual COM
Print Contrast 20% UPC/EAN 100%
Mention Pattern Buzzer, Indicator
Size L × W × H:175mm × 73mm × 102mm
Weight 246g
Material ABS+PC
Voltage 5VDC
Operating Current 85mA
Static Current 30mA
EMC CE & FCC DOC compliance
Operating Temperature – 0°C to 50°C
Storage Temperature – 40°C to 70°C
Humidity 5% to 85% relative humidity , non-condensing
Light Levels Daylight,3000-8000LUX
