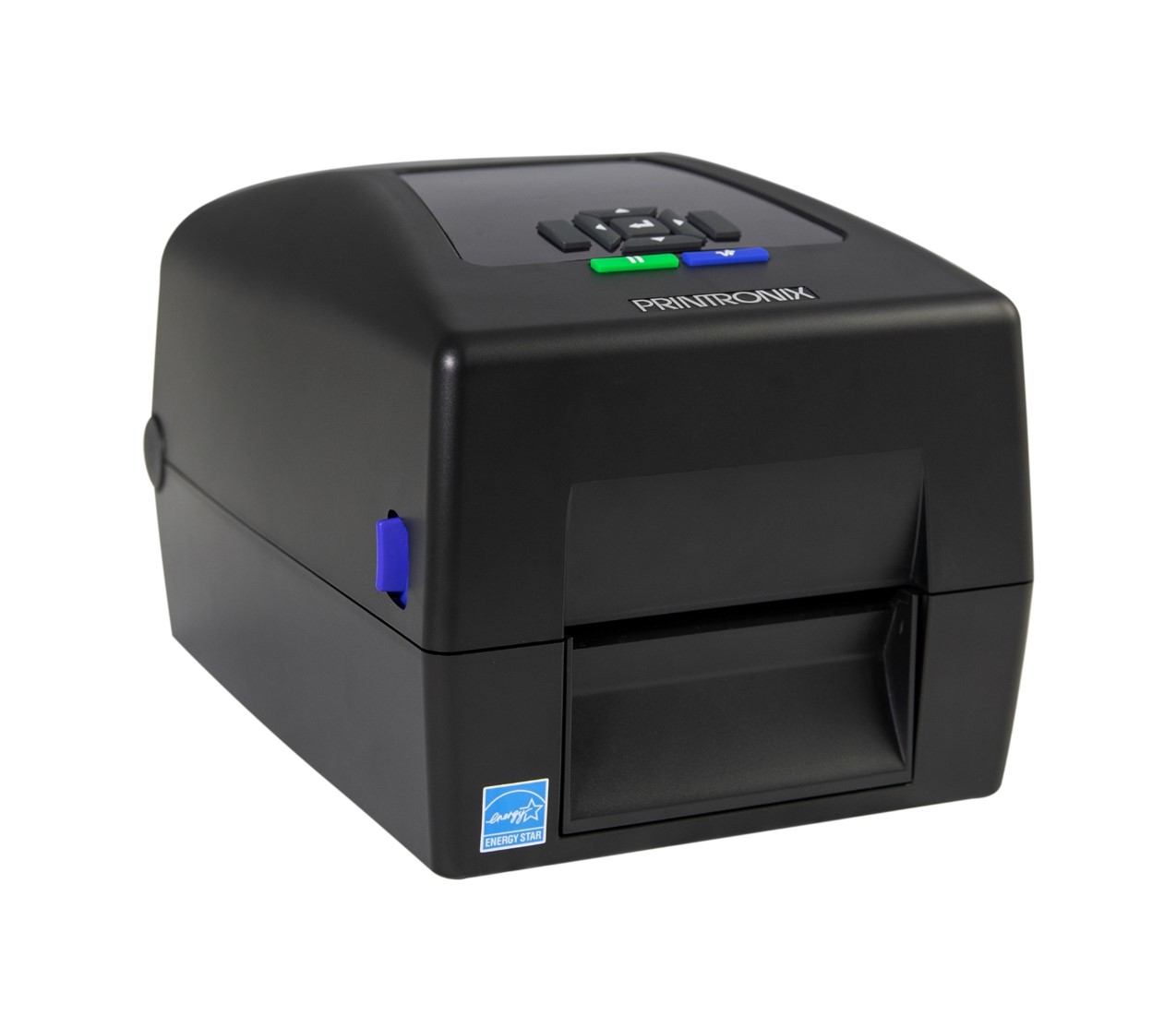

Printronix T800 RFID Printer
The T800 is a high-performance, thermal desktop printer with enterprise level productivity, dependable performance and a selection of versatile high end features such as RFID, WiFi, and advanced security protocols. The T800 is Printronix’s first desktop printer to incorporate its renowned Printronix System Architecture (PSA) and includes a full suite of labor-saving features and printer management tools for easy day-to-day operations.
Specification
Product Benefits
- High performance ARM Cortex-A7
- Available in 203 DPI and 300 DPI
- Re-enforced plastic enclosure
- 128MB RAM / 128MB Flash Memory
- Transfer and direct printing
- Color 3.5in LCD nine-key control panel
- Four-inch print width
- 4-32 GB SD memory card capability
- Printronix Systems Architecture (PSA)
- Ethernet 10/100 BaseT (Standard)
- WiFi 802.11 a/b/g/n/ac (Option)
- Bluetooth 4.2 (Option)
- Premium Asian Fonts (Option)
- On-Pitch RFID, multi-position antenna
- ENERGY STAR Certified
Printer Specifications
| Max Print Speed (4”) | 8 IPS @ 203 DPI, 6IPS @ 300 DPI |
|---|---|
| Print Method | Transfer and Direct |
| Resolution | 203 DPI / 300 DPI |
| Max. Print Width | 4.1″ (104mm) |
Media Specifications
| Media Type | Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets |
|---|---|
| Min. Media Width | 0.79” (20mm) |
| Max. Media Width | 4.4” (112mm) |
| Min. Media Length | Continuous 0.25”, Tear-Off / Peel-Off 1.0” |
| Max. Media Length | 90” (Up to 50”mm) |
| Media Thickness | 0.00236” (0.06mm) to 0.00784” (0.19mm) |
| Media Roll Core Diameter | 1.0″ (25.4mm), 1.5” (38mm) |
| Max. Media Roll Diameter | 5.0″ (127mm) |
| Media Sensing | Gap, Mark |
Ribbon Specification
| Ribbon Type | Wax, Wax/Resin, Resin |
|---|---|
| Min. Ribbon Width | 1.0″ (25.4mm) |
| Max. Ribbon Width | 4.33″ (110mm) |
| Max. Ribbon Length | 300 Meters |
| Ribbon Core Diameter | .5” (12.7mm), 1.0” (25.4mm) |
Physical Characteristics
| Width | 8.3″ (210mm) |
|---|---|
| Height | 7.5″(190mm) |
| Depth | 11.2″(285mm) |
| Printer Weight | 6.79 lbs.(2.9Kg) |
| Shipping Weight | 9.47 lbs.(4.3Kg) |
Printer Language
- Printer Languages (Native / Competitor) : PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL/EGL
- Legacy Line Printer Emulations : P-Series / XQ, Proprinter, Serial Matrix, Epson FX
- Job Control Languages : PJL, XML, and PTX-SETUP
Communication and Connectivity/Interface
| Standard Interface I/O | Serial RS232, USB Device (Type B), USB Host (Type A) and Ethernet 10/100Base T |
|---|---|
| Optional Interface I/O | WiFi (802.11a/b/g/n/ac), (WiFi Alliance Certified) Bluetooth 4.2 |
| WiFi Security Protocol |
WEP 40/128bit, TKIP, AES CCMP |
RFID
| Radio | UHF EPC Gen2 / ISO18000-6C |
|---|---|
| Antenna | Multi-position RF Antenna |
| Inlays | On-Pitch label to 0.625 in (depending on inlay) RFID label calibration |
| Languages | PGL, ZPL, STGL, MGL |
| Counters | Tracks good / overstruck labels |
Media Handling Modes
- Standard : Continuous, Tear-Off Strip
- Options : Peel-Off, Cut
Operating Environment
| Operating Temperature | 40 to 104 °F (5 to 40 °C) |
|---|---|
| Operating Humidity | 20 – 85% Non-Condensing |
| Storage Temperature | -40 to 140 °F (-40 to 60 °C) |
| Storage Humidity | 10 – 90% Non-Condensing |
Regulatory Compliance
| Emissions | FCC, CE, IC, CCC, KC |
|---|---|
| Safety | cTUVus, CE, IC, EAC, SMARK, NOM, CCC, KC, BIS, BSMI, CE |
| Environmental | RoHS, WEEE, Energy Star |
| RFID | FCC, IC, CE, CCC, NCC, NTC, WPC |
| WiFi/BT | FFC, IC, CE, CCC |
| Energy Savings | Energy Star 2.0 |
Bar Code Symbologies
| 1D Barcodes | BC-412, Code 11, Code 39, Code35, Code 93, Codabar, Code 128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German 1-2/5, EAN-8, EAN-13, UCC/EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Austrailian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS |
|---|---|
| 2D Barcodes | PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14) |
Font, Graphic Support
| Graphic Formats | PCX, TIFF, BMP, PNG |
|---|---|
| Font Technologies | Intellifont, TrueType, Unicode |
| Standard Fonts | OCRA, OCRB, Courier, Letter Gothic, CG Times, CG Triumvirate/Bold/Condensed |
| Premium Asian Fonts (SD card) | Simplified Chinese, Japanese, Korean, Thai |
