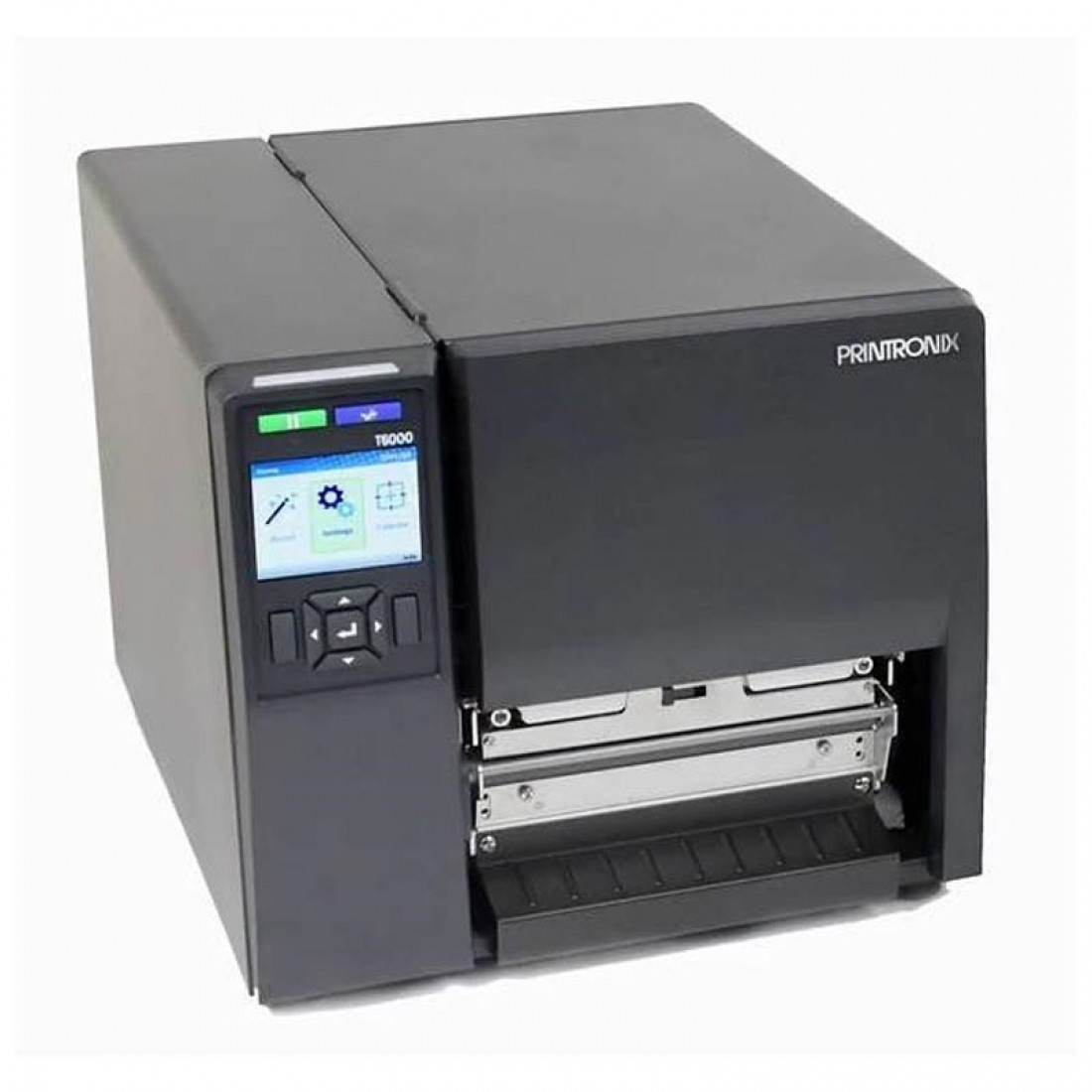

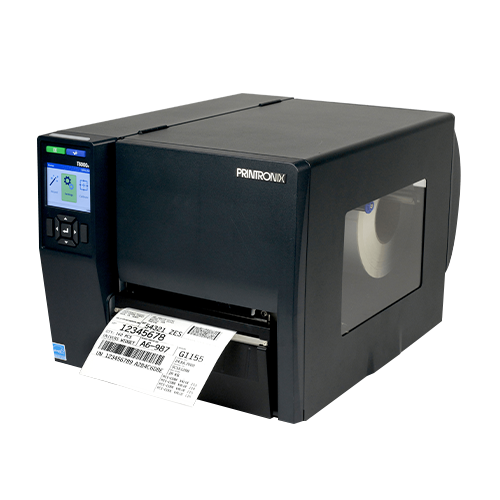

Printronix T6000E RFID Printer – T6204E/T6304E

The T6000e 6-inch industrial printer sets a new standard for versatility and productivity in fast-paced environments where speed and exceptional printer quality are needed.

Ease-of-use and an interactive screen reduces training and down time, helping your business focus on operational productivity.

Available on the 4-inch and 6-inch models, the T6000e RFID capabilities include the ability to encode and print on standard RFID paper labels most commonly used in carton or pallet supply chain applications. This printer can also encode and print on most on-metal RFID tags commonly used in asset tracking applications where the tagged item has a metal surface, such as IT servers, safety deposit boxes, or gas canisters.

Add to Enquiry
Download PDF
Specification
Product Benefits
  • High performance ARM Cortex-A9
  • Available in 203 DPI, 300 DPI and 600 DPI
  • Die-cast aluminum frame w/metal door
  • 512MB RAM / 128MB Flash Memory
  • Transfer and direct printing
  • 4-32 GB SD memory card capability
  • 4” and 6” model configurations
  • ENERGY STAR Certified
  • Andale & Premium Asian Fonts (Option)
  • WiFi 802.11 a/b/g/n/ac (Option)
Printer Specification
Max Print Speed (4”) 14ips @ 203 DPI; 12ips @ 300 DPI, 6ips @ 600 DPI
Max Print Speed (6”) 12ips @ 203 DPI, 10ips @ 300 DPI
Print Method Transfer and Direct
Resolution (4”) 203/300/600 DPI
Resolution (6”) 203/300 DPI
Max. Print Width 4.1” (104mm) / 6.55” (166.4mm)
Printer Memory 512MB RAM / 128MB Flash
Media Specification
Media Type Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Min. Media Width (4”/6”) 1” (25.4mm)/2” (50.8mm)
Max. Media Width 4.5” (114.3mm) / 6.8” (172.7mm)
Min. Media Length 0.25” / 1.0” (Continuous/Tear-Off) / 1.0” (Peel-Off/Cutter)
Max. Media Length Up to 99”
Media Thickness 2.36-11mil (0.06 to 0.268mm)
Media Roll Core Diameter 1.5” (37.5mm) to 3.0” (76mm)
Max. Media Roll Diameter 8.0” (203.2mm)
Media Sensing Gap, Mark
Ribbon Specification
Ribbon Type Wax, Wax/Resin, Resin
Coating Coated side in/out. RFID coated side out only
Min. Ribbon Width (4”/6″) 1” (25.4mm)/2” (50.8mm)
Max. Ribbon Width (4”/6”) 4.5” (114.3mm)/6.8” (172.7mm)
Max. Ribbon Length 450 Meters
Media Handling

<ul>
<li>Standard : Continuous, Tear-Off Strip, Tear Off</li>
<li>Options : Peel-Off, Cut and Rewind</li>
</ul>

Communication and Connectivity / Interface
Standard Interface I/O USB Device/Host, Ethernet 10/100 BaseT, Serial Parallel,
Optional Interface I/O WiFi (802.11a/b/g/n/ac), GPIO
WiFi Security Encryption WEP 40/128bit, WPA Personal (PSK), WPA2 Personal
WiFi Security Authentication (PSK) Enterprise (AES CCMP)EAP-TLS, EAP-TTLs, PEAPv0/
MS-CHAPv2, PEAPv1, EAP-MDS
Remote Management Software

PrintNet Enterprise Suite : Enterprise Grade Remote Management Solution

Printer Language
IGP Languages PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL/EGL
Job Control Languages PJL, XML, and PTX-SETUP
Optional Languages IPDS, PDF Level 1.7, Postscript Level 3
Barcode Symbologies
1D Barcodes BC-412, Code 11, Code 39, Code 35, Code 93, Codabar, Code128 Subsets A/B/C, Industrial 2 of 5, Interleave 2 of 5, German I-2/5, EAN-8, EAN-13, UCC/ EAN-128, UPC-A, UPC-E, UPCSHIP, UPS 11, MSI, Matrix 2 of 5, PLESSEY, POSTNET, 4-state PostBar, Australian 4-state, FIM, ITF14, TELEPEN, PLANET, USPS Intelligent Mail, LOGMARS
2D Barcodes PDF-417, MicroPDF-417, Maxicode, DataMatrix, QR Codes, Aztec, GS1 Databar (RSS-14)
RFID
Radio UHF Gen2/ ISO 18000-63 Encoder
Antenna Fixed Position Antenna
Inlays/Tags Standard/On-Metal Tags
Minimum Label/ Tag Pitch 0.625in (15mm)
On-Metal Tag Thickness Up to 1.2mm thick
Printer Languages PGL, ZGL, STGL, MGL
Counters Tracks good/overstruck labels/tags
Barcode Validation
  • Online Data Validator (ODV) : Validates, Grade, Report, and Overstrike barcodes Supports 1D Barcodes (Picket Fence) Compatible with RFID encoding
Font, Graphic Support
Graphic Formats PCX, TIFF, BMP, PNG
Font Technologies Intellifont, TrueType, Unicode
Standard Fonts OCRA, OCRB, Courier, Letter Gothic, CG Times, CG
Triumvirate/Bold/Condensed
Asian Fonts (Optional SD card) Simplified Chinese, Japanese, Korean, Thai
Andale Fonts (Optional SD card) Simplified Chinese, Traditional Chinese, Korean,
Japanese
PDF/ PostScript Level 3 35 Fonts
Physical Characteristics
Width (4”/6”) 10.9” (276.9mm)/14.1” (358.1mm)
Height (4”/6”) 12.3” (312.4mm)/12.4” (314.9mm)
Depth (4”/6”) 20.3” (515.6mm)/20.3” (515.6mm)
Printer Weight (4”/6”) 33.6 lbs. (14.5Kg)/39 lbs. (17.4Kg)
Shipping Weight (4”/6”) 42.6 lbs. (18.6Kg)/48 lbs. (21.5Kg)
Operating Environment
Operating Temperature 23°F to 104°F (-5° to 40°C)
Operating Humidity 10 to 90% RH Non-Condensing
Storage Temperature -40°F to 140°F (-40°C to 60°C)
Storage Humidity Non-Condensing
Regulatory Compliances
Emissions FCC, CE, CCC
Safety cTUVus, CCC, CE, BIS, BSMI, EAC, KCC, NOM, RCM, S-MARK
Environmental RoHS, WEEE, Energy Star
WiFi FCC, CE, IC, SRRC
RFID FCC, CE, ANATEL, ICT, KC, MIC, NCC., SRRC, WPC
Power Requirement Line Input : Auto Range 90 – 264 VAC (48 – 62 Hz)
Options and Accessories
  • WiFi 802.11 a/b/g/n/ac
  • Rewind 4”/6”
  • Parallel Port
  • Heavy Duty Cutter 4”/6”
  • GPIO
  • Peel & Present 4”/6”
  • TN5250
  • Premium Asian Font Cards
  • PDF/PostScript
  • Premium Andale Font Cards
  • IPDS
  • QCMC (SD Quick Change Memory Card)
  • Online Data Validator (ODV)
  • UHF RFID (US 902-928MHz, EU 866-868MHz)

Description

The T6000e is one of the most versatile printers on the market with the ability to print 10,000 labels a day at high speeds, offer high resolution 300 dpi printing small label applications, Printronix System Architecture (PSA), multiple connectivity options, and remote printer management tools and automated alerts to keep your enterprise operating at optimum efficiency and productivity.

Enterprise-Level Productivity

  • High productivity print speed of 14 ips
  • High volume printing up to 10,000 labels per day in demanding environments
  • Compatible with SOTI Connect device management solution

Versatility

  • RFID feature prints and encodes on both standard labels and on-metal tags
  • Nine competitor printer languages
  • Upgrade kits available with peel and rewind and cutter (media handling)

Reliability

  • Solid metal frame construction for reliable operation
  • Comprehensive WiFi security suite
  • Intelligent heat management system increases printhead life and improves barcode print quality while reducing operating costs
