Printronix

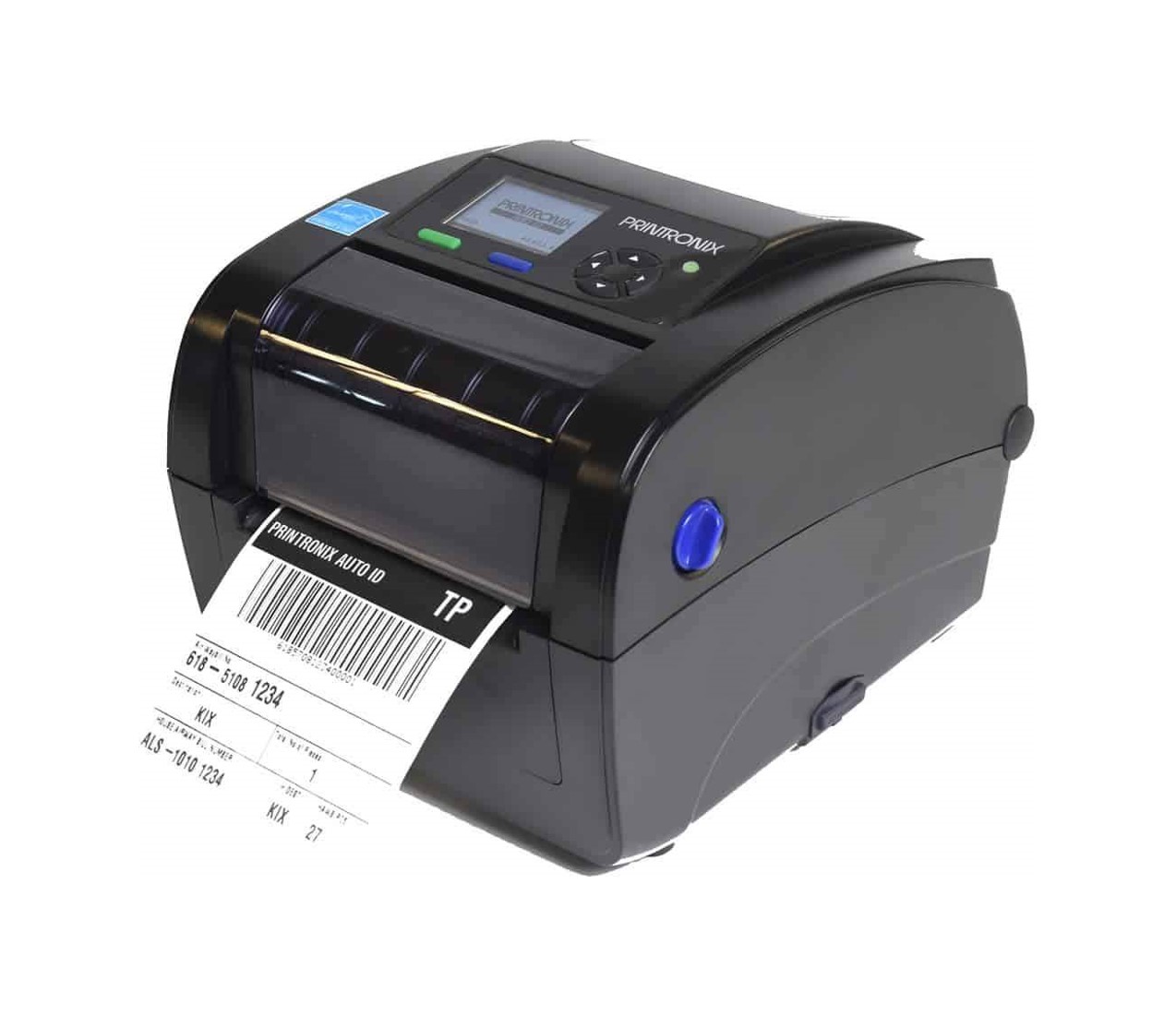

Printronix T600 Mid-Range Dekstop Thermal Printer

The T600 is an exceptional mid-range desktop printer for applications that require reliable performance, versatile features and easy operation. The T600 is remarkably well suited to a large variety of industries due to its
ability to utilize Direct Thermal and Thermal Transfer technology.

Download PDF
Specification
Product Benefits
  • 32-bit RISC high performance processor
  • Available in 203 DPI and 300 DPI
  • Double wall clamshell construction
  • 64 MB SDRAM / 128 MB Flash Memory
  • Thermal Transfer printing
  • 4” model configuration
  • 2.3″ Color TFT Display w/6 button control
  • 8 inches per second print speed
Printer Specifications
Max Print Speed (4”) 8 IPS @ 203 DPI / 6 IPS @ 300 DPI
Print Method Thermal Transfer
Resolution 203 DPI / 300 DPI
Max. Print Width 4.25″ (108mm) / 4.15″ (105.6mm)
Printer Memory 64 MB SDRAM / 128 MB Flash Memory
32 GB optional SD Card
Media Specifications
Min. Media Width (4”) 0.79″ (20mm)
Max. Media Width 4.4″ (112mm)
Min. Media Length .39″ (10mm)
Max. Media Length 1,000″ (25,400 mm)
Media Thickness 2.36 mil(.06mm) to 7.48 mil(.19mm)
Media Roll Core Diameter 1″ (25.4mm) to 1.5″ (38.1mm)
Max. Media Roll Diameter 5.0” (127mm)
Media Sensing Transmissive gap sensor, Black mark reflective sensor
Head open sensor, Ribbon End Sensor
Media Type Continuous, die-cut, black mark, fan-fold, notch
(outside wound)
Media Handling Modes
  • Standard : Continuous, Tear-Off Strip
  • Options : Peel-Off, Cut
Physical Characteristics
Width 7.99” (203mm)
Height 7.54″(191.5mm)
Depth 10.21” (259.3mm)
Printer Weight 5.07lbs (2.3kg)
Shipping Weight 8.03 lbs (3.65kg)
Printer Language

DPL, EPL, ZPL, ZPL2

Communication and Connectivity/Interface
Standard Interface I/O Serial RS232, USB 2.0 , and Ethernet 10/100Base T
Display 2.3″ 320×240 Color TFT Display w/6 b utton control
Operating Environment
Operating Temperature 40 to 104 °F (5 to 40 °C)
Operating Humidity 20 – 85% Non-Condensing
Storage Temperature -40 to 140 °F (-40 to 60 °C)
Storage Humidity 10 – 90% Non-Condensing
Regulatory Compliance
Emissions FCC, CE, CCC
Safety cTUVus, CE
Environmental RoHS, WEEE, ENERGY STAR®
Bar Code Symbologies
1D Barcodes Code 39, Code 93, Code128UCC, Code128 subsets
A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-
128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,
MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar,
Code 11, China Post
2D Barcodes PDF-417, Maxicode, DataMatrix, QR code, Aztec,
MicroPDF-417
Font, Graphic Support
Internal Fonts 8 alpha-numeric bitmap font
Monotype Image® true type font engine with one
CG Triumvirate Bold Condensed scalable font
Font and barcode rotation 0, 90, 180, 270 degree
