Printronix

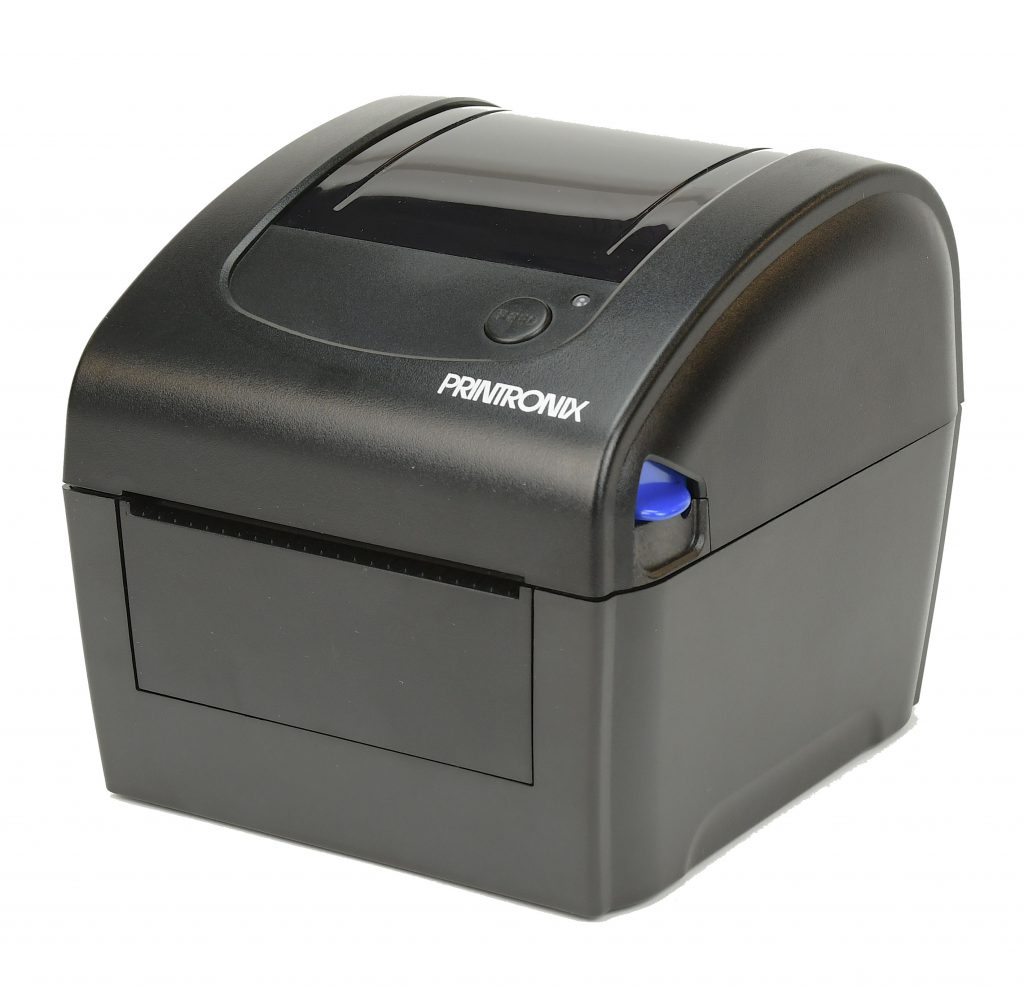

Printronix T400 Dekstop Thermal Printer

The T400 is the premier printer for applications that require a compact, affordable and reliable barcode printer. With eight times more memory than its nearest competitor, plus a large range of standard and optional communication choices, the T400 is ready to keep up with your technology requirements today and tomorrow.

Download PDF
Specification
Product Benefits
  • 32-bit RISC high performance processor
  • Available in 203 DPI and 300 DPI
  • Double wall clamshell construction
  • 64 MB SDRAM / 128 MB Flash Memory
  • 4” model configuration
Printer Specifications
Max Print Speed (4”) 6 IPS @ 203 DPI / 4 IPS @ 300 DPI
Print Method Direct
Resolution 203 DPI / 300 DPI
Max. Print Width 4.25” (108mm)
Printer Memory 64 MB SDRAM / 128 MB Flash Memory
Media Specifications
Media Applications Product marking, point of sale, retail, small office,
shipping labels, and other labeling and tag
application
Min. Media Width (4”) 0.7 (19mm)
Max. Media Width 4.5” (114.3mm)
Min. Media Length 0.25” / 1.0” (Continuous/Tear-Off)
Max. Media Length 90” (2,286 mm)
Media Thickness 2.16 mil(.055mm) to 7.48 mil(.19mm)
Media Roll Core Diameter 1.0” (25.4mm)
Max. Media Roll Diameter 5.0” (127mm)
Media Sensing Transmissive gap sensor, Black mark reflective sensor
Head open sensor
Media Type Continuous, black mark, fan-fold, notched
(outside wound)
Media Handling Modes
  • Standard : Continuous, Tear-Off Strip
  • Options : Peel-Off, Cut
Physical Characteristics
Width 7” (177.8mm)
Height 6.5”(165mm)
Depth 7.6” (193mm)
Printer Weight 4.32lbs (1.96kg)
Shipping Weight 5.8 lbs (2.63kg)
Printer Language

EPL, ZPL, ZPL2

Communication and Connectivity/Interface
Standard Interface I/O Serial RS232, USB 2.0 , and Ethernet 10/100Base T
Optional Interface I/O WiFi, 802.11a/b/g/n (US only)
WiFi Security Protocol WEP 40/128bit, WPA Personal (PSK),
WPA2 Personal (PSK) and Enterprise (AES CCMP)
EAP-TLS, EAP-TTLs, PEAPv0/MS-CHAPv2, PEAPv1
EAP-MD5
Operating Environment
Operating Temperature 40 to 104 °F (5 to 40 °C)
Operating Humidity 20 – 85% Non-Condensing
Storage Temperature -40 to 140 °F (-40 to 60 °C)
Storage Humidity 10 – 90% Non-Condensing
Power Requirement
  • Line Input : Auto Range AC 100-240V, 50-60Hz
  • Printer Output : DC 24V, 2.5A, 60W
Regulatory Compliance
Emissions FCC, CE, CCC
Safety cTUVus, CE
Environmental RoHS, WEEE, ENERGY STAR®
Radios (WiFi) FCC others based on market need
Bar Code Symbologies
1D Barcodes Code 39, Code 93, Code128UCC, Code128 subsets
A.B.C, Codabar, Interleave 2 of 5, EAN-8, EAN-13, EAN-
128, UPC-A, UPC-E, EAN and UPC 2(5) digits add-on,
MSI, PLESSEY, POSTNET, RSS-Stacked, GS1 DataBar,
Code 11, China Post
2D Barcodes PDF-417, Maxicode, DataMatrix, QR code, Aztec,
MicroPDF-417
Font, Graphic Support
Internal Fonts 8 alpha-numeric bitmap font
Monotype Image® true type font engine with one
CG Triumvirate Bold Condensed scalable font
Font and barcode rotation 0, 90, 180, 270 degree
Options and Accessories
  • WiFi 802.11 a/b/g/n (US only) includes Real Time Clock
  • Peel & Present
  • Cutter
