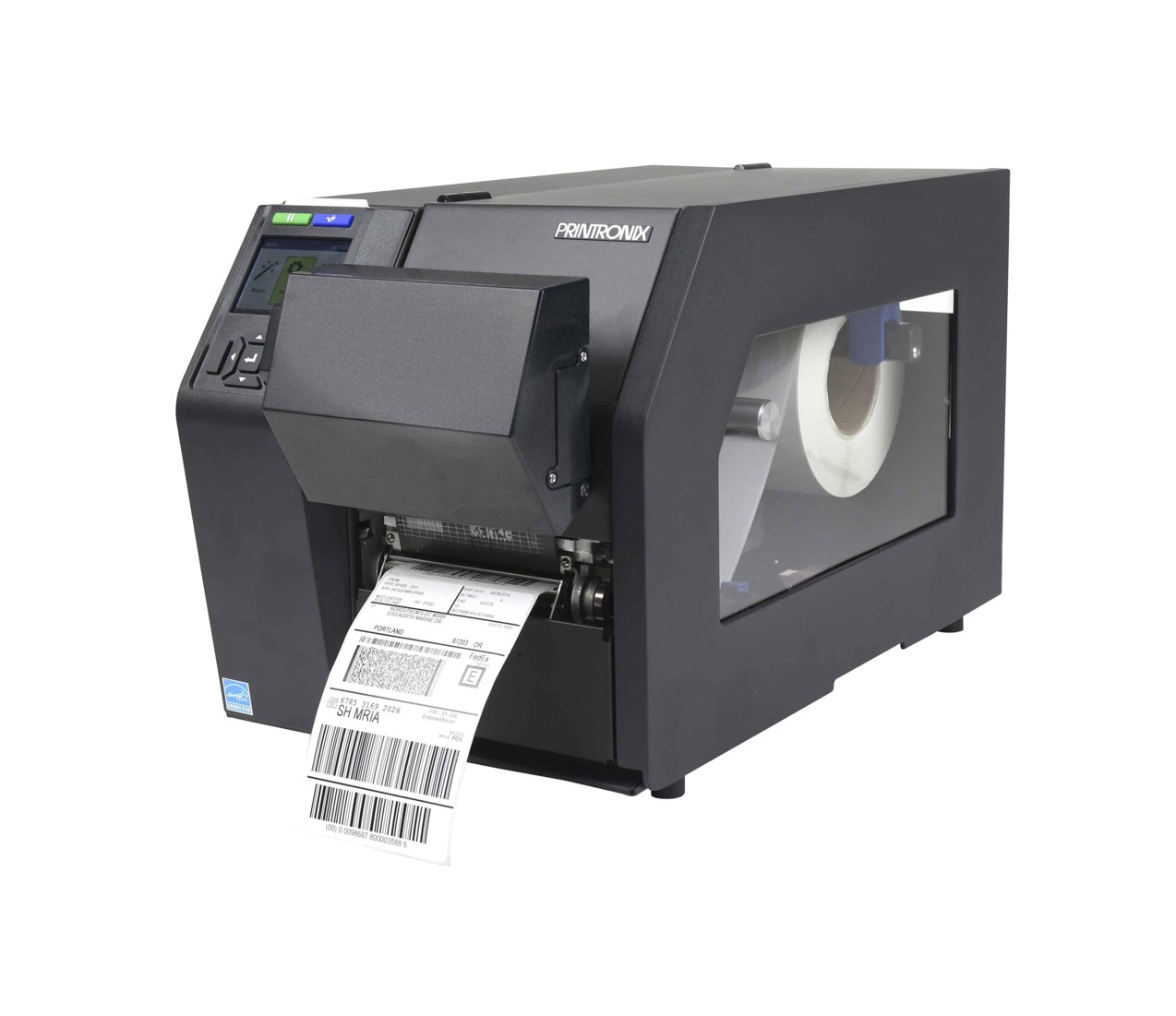

Printronix ODV 2D-Print & Verify Barcode Printer

Printronix ODV 2D-Print & Verify Barcode Printer

The ODV-2D is the industry’s first affordable, fully integrated solution with the ability to print, verify, and validate 1D and 2D barcodes. Built on the robust T8000 printer platform, ODV-2D includes a built-in verifier that grades barcodes to ISO 15415,15416 and 15426 standards and stores a detailed report of each transaction. Our exclusive technology reads each barcode, overstrikes the entire label of a rejected barcode, and reprints a new label. The ODV-2D delivers accelerated ROI by eliminating charge backs and fines for non-conforming labels. Advanced features allow it to integrate easily and quickly into existing applications.

Add to Enquiry
Download PDF
Specification
Product Benefits

• High performance ARM Cortex-A9
• Available in 203 DPI and 300 DPI
• Die-cast aluminum frame w/ metal door
• Dual Motor ribbon drive system
• Transfer and direct printing
• 512MB RAM / 128MB Flash Memory
• 4” model configuration
• 4-32 GB SD memory card capability
• Asian Fonts (Andale and Premium)
• State-of-the-art WiFi connectivity
• ENERGY STAR Certified

Printer Specifications
Max Print Speed 10 IPS @ 203 DPI, 8IPS @ 300 DPI
Print Method Thermal Transfer and Direct Thermal
Resolution 203/300 DPI
Max. Print Width 4.1” (104mm)
Printer Memory 512MB RAM / 128MB Flash
Media Specifications
Media Type Roll or Fan-Fold Labels, Tags, Paper, Film, Tickets
Min. Media Width 1” (25.4mm)
Max. Media Width 4.5” (114.3mm)
Min. Media Length 0.25” / 1.0” (Continuous/Tear-Off) / 0.5” (Peel-Off)
Max. Media Length Up to 99”
Media Thickness 0.0025” (0.0635mm) to 0.010” (0.254mm)
Media Roll Core Diameter 1.5″ (37.5mm) to 3.0” (76mm)
Max. Media Roll Diameter 8.0” (203.2mm)
Media Sensing Gap, Mark, Advanced Gap, Advanced Notch
Ribbon Specification
Ribbon Type Wax, Wax/Resin, Resin
Min. Ribbon Width 1″ (25.4mm)
Max. Ribbon Width 4.5″ (114.3mm)
Max. Ribbon Length 625 Meters
Media Handling

• Standard : Continuous, Tear-Off Strip, Tear-Off
• Optional : Peel-Off, Rewind, Cutter

Physical Characteristics
Width 11.7” (297.2mm)
Height 13” (330.2mm)
Depth 22.1” (561mm)
Printer Weight 37 lbs. (16.7Kg)
Shipping Weight 46 lbs. (20.8Kg)
Printer Language

• IGP Languages : PGL/VGL/ZGL/TGL/IGL/STGL/DGL/IEGL/MGL
• Line Printer Plus Languages : P-Series + WQ, Proprinter, Serial Matrix, Epson
• Job Control Languages : PJL, XML, and PTX-SETUP
• Optional Languages : IPDS
• TN5250/TN3270
• PDF Level 1.7, Postscript Level 3

Communication and Connectivity/Interface
Standard Interface I/O Serial RS232, USB Device (Type B), USB Host (Type A) and Ethernet 10/100Base T
Optional Interface I/O Parallel, WiFi (802.11 b/g/n 2.4GHz) (802.11 a/n/ac 5GHz), GPIO
WiFi Security Protocol WEP 40/128bit, WPA Personal (TKIP), WPA2 Personal (AES/CCMP), EAP-PEAP, EAP-TTLS, PEAPv0/EAPMSCHAPv2, EAP-TLS Security Certificates
Barcode Validation
Barcode Type 1D & 2D
Read Technology 5MP Camera
Barcode GPS Yes
Max Barcodes per label 50
Overstrike Area Full label
Validate Min. X-Dimension 10 mils
Validate Max. X-Dimension 60 mils
Barcode Orientation 0°, 90°, 180°, 270°
Barcode Grading A, B, C, D, F
Grading Report Yes
Validation Standard Based on ISO 15415, 15416, and 15426 standards
Enterprise Network Support Yes w/ PNE
Data Capture AutoID Data Manager
PXML Messaging Schema for 3rd Party Applications
Operating Environment
Operating Temperature Direct Thermal: 23°F to 104°F (-5°C to 40°C)
Thermal Transfer: 40°F to 104°F (5°C to 40°C)
Operating Humidity 20-85% Non-Condensing
Storage Temperature 23° to 140°F (-5° to 60°C)
Storage Humidity 5 to 85% Non-Condensing
