Honeywell

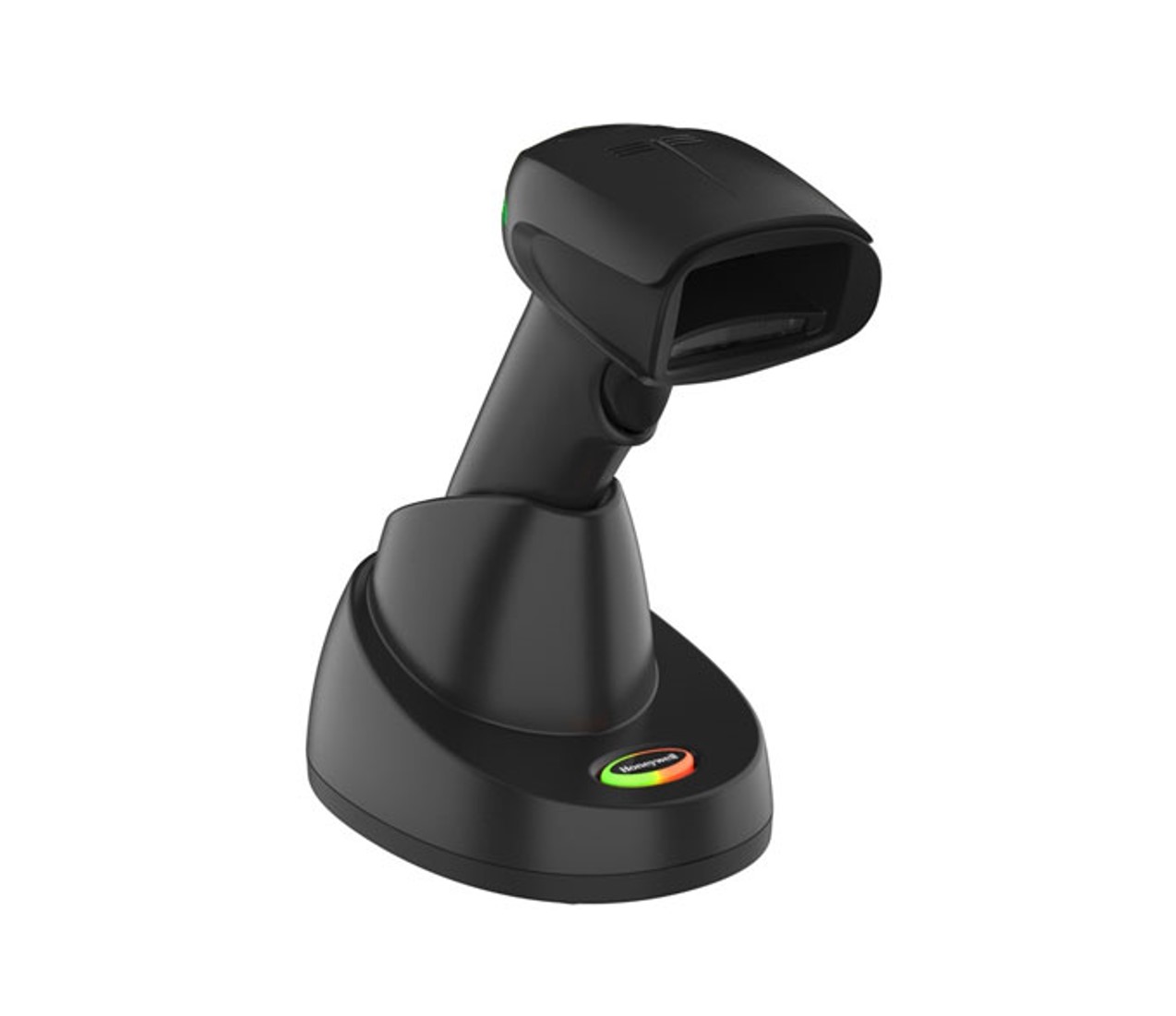

Honeywell Xenon Extreme Performance (XP) 1952g cordless 2D Area Imager

Empower your cashiers to deliver on your mission and commitment to provide excellent customer service experiences with the Honeywell Xenon™ Extreme Performance (XP) series. The Xenon XP 1952g scanner offers superior scan performance, easily capturing even the most difficult-to-read or damaged barcodes.
Engineered to 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP41 ingress rating for water and dust, the Xenon XP 1952g scanner delivers class-leading durability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership.

Download PDF
Specification
Wireless
Radio/Range 2.4 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v4.2; Class 2: 10 m (33 ft) line of sight
Power Options Battery: 2400 mAh Li-ion minimum
Number of Scans: Up to 50,000 scans per charge
Expected Duration of Operation: 14 hours
Expected Charge Time: 4.5 hours
User Indicators Good Decode LEDs,
Rear View LEDs, Beeper (adjustable tone and volume), Vibration (adjustable),
Charge Status Indicator
Mechanical / Electrical
Dimensions (L x W x H) Scanner: 99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in)
Presentation Base: 132 mm x 101 mm x 81 mm (5.2 in x 4.0 in x 3.2 in)
Desktop/Wall Mount Base: 231 mm x 89 mm x 83 mm (9.1 in x 3.5 in x 3.3 in)
Weight Scanner: 220 g (7.8 oz)
Presentation Base: 179 g (6.3 oz)
Desktop/Wall Mount Base: 260 g (9.2 oz)
Operating Power Charging (Bases): 2.5 W (500 mA @ 5V DC)Presentation Base: 179 g (6.3 oz)
Non-Charging Power (Bases): 0.75 W (150 mA @ 5V DC)
Host System Interfaces USB, Keyboard Wedge, RS-232, IBM 46xx (RS485)
Environmental
Operating Temperature Scanner: 0°C to 50°C (32°F to 122°F)
Bases: Charging: 5°C to 40°C (41°F to 104°F)
Non-Charging: 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Electrostatic Discharge (ESD) (Scanners and Cradles) ±8 kV indirect coupling plane, ±15 kV direct air
Humidity 0% to 95% relative humidity, non-condensing
Tumble Spec 2,000 0.5 m (1.6 ft) tumbles (impacts)
Drop Engineered to withstand 50 1.8 m (6 ft) drops to concrete
Environmental Sealing IP41
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (1240 x 800 pixel array)
Motion Tolerance Up to 400 cm/s (157 in/s) for 13 mil UPC at optimal focus
Scan Angle HD: Horizontal: 48°; Vertical: 30°
SR: Horizontal: 48°; Vertical: 30°
Print Contrast 20% minimum reflectance difference
Roll, Pitch, Skew ±360°, ±45°, ±65°
Decode Capability Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
(Note: Decode capabilities dependent on configuration.)
Warranty 3-year factory warranty (Note: Battery Pack warranty is one year.)
