Honeywell

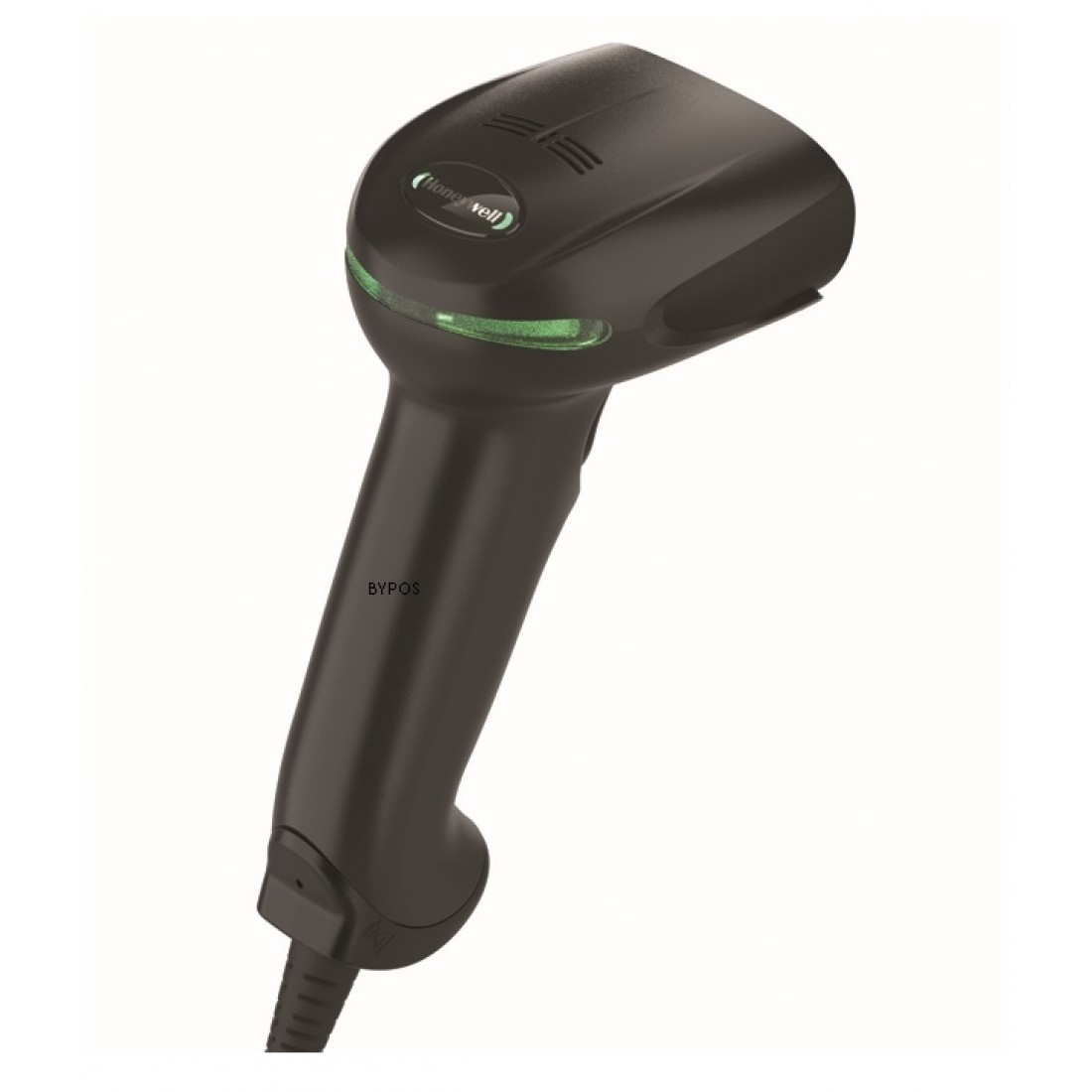

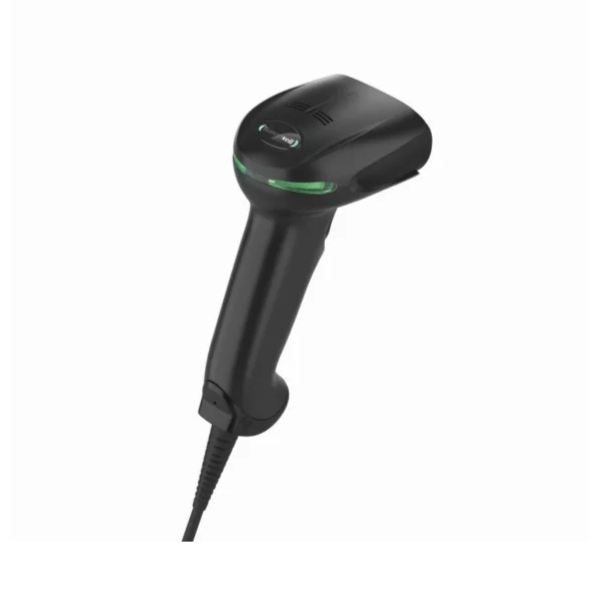

Honeywell Xenon Extreme Performance (XP) 1950g 2D Area Imager

Empower your cashiers to deliver on your mission and commitment to provide excellent customer service experiences with the Honeywell Xenon™ Extreme Performance (XP) series. The Xenon XP 1950g scanner offers superior scan performance, easily capturing even the most difficult-to-read or damaged barcodes.
Engineered to 50 drops at 1.8 m (6 ft) and 2,000 tumbles at 0.5 m (1.6 ft), and with an IP41 ingress rating for water and dust, the Xenon XP 1950g scanner delivers class-leading durability. This significantly reduces scanner downtime and service costs, leading to a longer lifecycle and a lower total cost of ownership.

Download PDF
Specification
Features
  • Superior scanning performance, even on damaged and poor-quality barcodes, eliminates wasted seconds from every transaction.
  • Engineered to withstand 2,000 0.5 m (1.6 ft) tumbles and 50 1.8 m (6 ft) drops, the scanner brings class-leading durability and reliability to any environment.
  • The scanner is optimized for scanning both digital codes off customer smartphones and merchandise codes by the cashier at the register.
  • Honeywell Operational Intelligence software delivers on-demand scan insights, enabling higher employee productivity and throughput.
  • The Honeywell Scanner Management Utility (SMU) creates a holistic solution that automates how you deploy and update the scanners in your environment.
Mechanical / Electrical
Dimensions (LxWxH) 99 mm x 64 mm x 165 mm (3.9 in x 2.5 in x 6.5 in)
Weight 160 g (5.6 oz)
Input Voltage 4.4V DC – 5.5V DC
Operating Power (Charging) Bases 2.5W (500 mA @ 5V DC)
Host System Interfaces USB, Keyboard Wedge, RS-232, RS485 support for TGCS (IBM) 46XX
User Indicators Good Decode LEDs, Rear View LEDs, Beeper (adjustable tone and volume), Vibration (optional)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)

Electrostatic Discharge (ESD)
(Scanners and Cradles)

±8 kV indirect coupling plane, ±15 kV direct air
Humidity 0% to 95% relative humidity,non-condensing
Tumble Spec 2,000 0.5 m (1.6 ft) tumbles (impacts)
Drop Engineered to withstand 50 1.8 m (6 ft) drops to concrete
Environmental Sealing IP41
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (1280 x 800 pixel array)
Motion Tolerance: 72 scan lines per second
Scan Angle SR: Horizontal: 48°; Vertical: 30°
HD: Horizontal: 48°; Vertical: 30°
Print Contrast 20% minimum reflectance difference
Roll, Pitch, Skew ±360°, ±45°, ±65°
Decode Capabilities Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Note: Decode capabilities dependent on configuration
Warranty 5 year factory warranty
