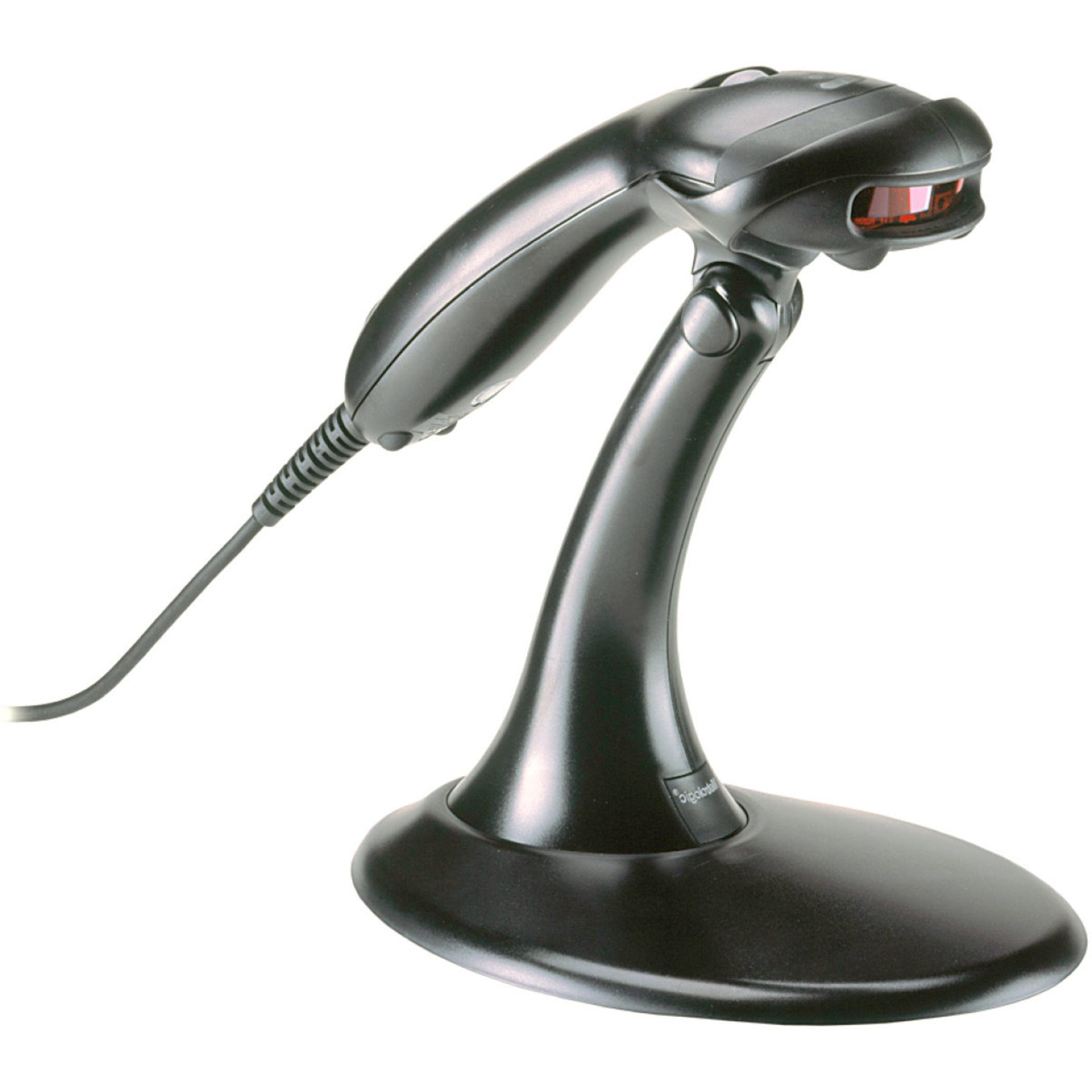

Honeywell VoyagerCG 9540 1D Laser Scanner

Honeywell’s Voyager® 9500 series of hand-held, single-line laser scanners offer aggressive scanning of all standard 1D bar codes.
The Voyager series of hand-held, single-line bar code scanners have united form with function in becoming the industry benchmark for value and performance.
These sleek scanners feature patented automatic infrared activation and decode all standard 1D bar codes, including GS1 DataBarTM (formerly known as RSS codes).

Download PDF
Specification
Features
  • Automatic Trigger: Use scanner as either a hand-held device or a fixed presentation scanner when mounted in the stand
  • 650-nanometer Laser: High-visibility laser allows user to place laser line on selected bar code
  • CodeGate Technology (VoyagerCG 9540 only): Zero in on desired code and complete data transmission with the push of a single button—ideal for menu scanning applications
  • Flash ROM: Future proof POS system with free firmware updates via MetroSet®2 software and standard PC
  • Parsing (Data Editing): Format bar code data to meet host system’s specific requirements
Mechanical
Dimensions (LxWxH) 198 mm x 78 mm x 56 mm (7.8˝ x 3.1˝ x 2.2˝)
Weight 149 g (5.3 oz)
Electrical
Input Voltage 5 VDC + 0.25 V
Operating Power 825 mW (165 mA @ 5 V)
Standby Power 600 mW (120 mA @ 5 V)
Host System Interfaces USB, RS232, Keyboard Wedge, IBM 46xx (RS485), OCIA, Laser Emulation, Light Pen Wand Emulation
Environmental
Operating Temperature 0°C to 40°C (32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.5 m (5’) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels 4842 Lux
Scan Performance
Scan Pattern Single scan line
Scan Speed 72 scan lines per second
Scan Angle Horizontal: 50°
Print Contrast 35% minimum reflectance difference
Pitch, Skew 68°, 52°
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Warranty 5 year factory warranty
