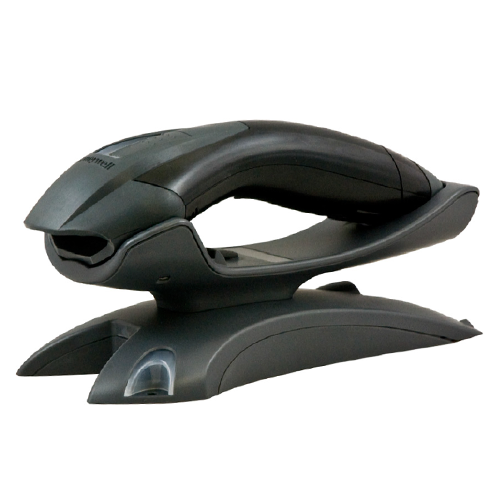

Honeywell Voyager 1202g Bluetooth Laser Scanner

Voyager™ 1200g (wired) and 1202g (wireless) laser barcode scanners are built on the world’s best-selling single-line laser scanner platform. They aggressively scan virtually all linear barcodes. And they do an exceptional job of reading poor quality and even damaged barcodes.

Download PDF
Specification
Mechanical
Dimensions (LxWxH) 1202g Scanner: 180 mm x 66 mm x 92 mm (7.1 in x 2.6 in x 3.6 in)
1202g Base: 200 mm x 67 mm x 97 mm (7.9 in x 2.6 in x 3.8 in)
Weight 1202g Scanner: 180 g (6.3 oz) (includes battery)
1202g Base: 125 g (4.4 oz)
Electrical
Operating power 5 W (1 A @ 5 V with power supply); 2.5W (0.5 A @ 5 V with USB)
0.625 W (0.125 A @ 5 V)
Battery 1800 mAh Li-ion minimum
Expected Operation Time 12 hours
Expected Charge Time 4 hours
Number of Scans Up to 45,000 scans per charge
Host System Interfaces USB, Keyboard Wedge, RS232, IBM 46xx (RS485)
Bluetooth 1452g Radio/Range: 2.4 to 2.5 GHz (ISM Band) Adaptive Frequency Hopping Bluetooth v2.1: Class 2: 10 m (33 ft) line of sight
1452g Radio/Range: Up to 3 Mbps
Enviromental
Operating Temperature 1202g Scanner:
– 5°C to 40°C (41°F to 104°F)
1202g Base:
– Charging: 5°C to 40°C (41°F to 104°F)
– Non-Charging 0°C to 50°C (32°F to 122°F)
Storage Temperature -5°C to 35°C (23°F to 95°F)
Humidity 0 to 95% relative humidity, non-condensing
Drop Designed to withstand 30 1.5 m (5 ft) drops to concrete
Environmental Sealing IP42
Light Levels 0 to 70,000 lux (6,500 foot-candles)
Scan Performance
Scan Pattern Area Image (640 x 480 pixel array)
Motion Tolerance Up to 10 cm/s (4 in/s) for 13 mil UPC at optimal focus
Scan Angle Horizontal 37.8°; Vertical 28.9°
Symbol Contrast 35% minimum reflectance difference
Pitch, Skew ±60°, ±70°
Decode Capability Reads standard 1D and GS1 DataBar symbologies. (Note: Decode capabilities dependent on kit configuration)
Warranty 3 year factory warranty (Note: battery warranty is 1 year)
