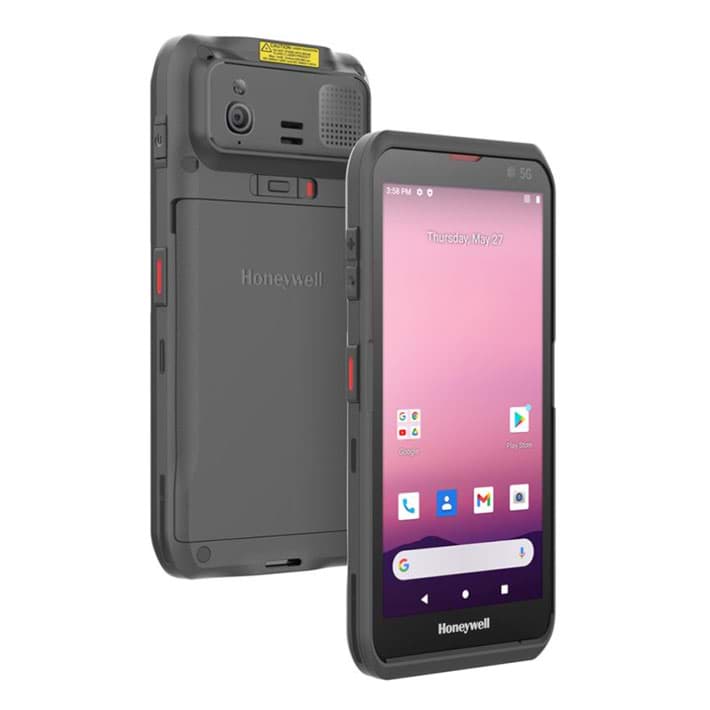

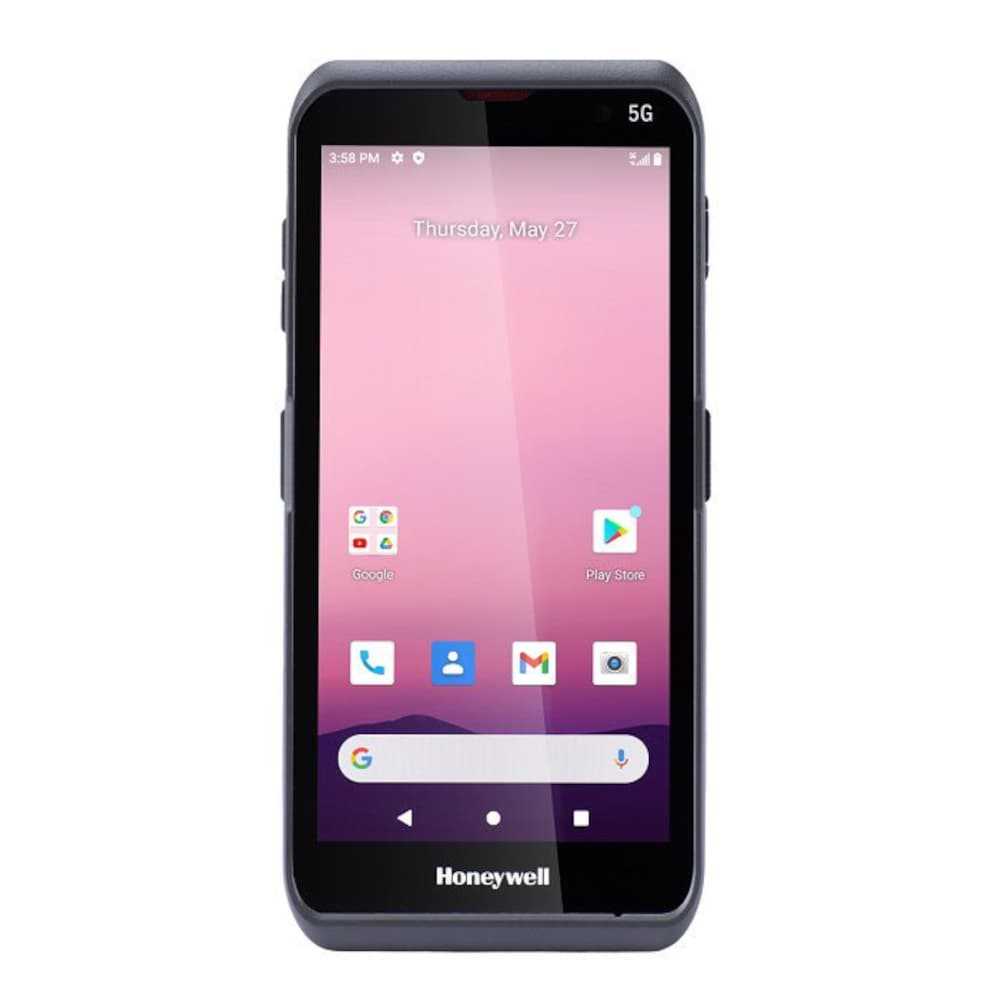

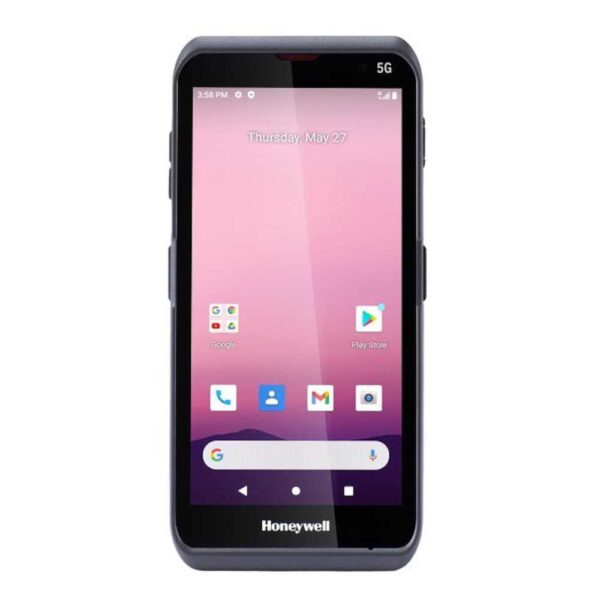

Honeywell ScanPal™ EDA57 Handheld Computer

The ScanPal EDA57 mobile computer boasts cutting-edge features tailored for efficiency and durability. It integrates Qualcomm’s Snapdragon octa-core processor for seamless 5G connectivity, ensuring reliable and low-latency wireless communication. Its robust design withstands harsh environments with a drop and tumble specification of up to 1.5 meters and an IP67 sealing rating. The device offers multiple memory options for fast data processing and is equipped with a powerful barcode scan engine for accurate and swift scanning tasks. Its ergonomic design, including a 5.5-inch Gorilla Glass touch screen, enhances user experience and comfort, while a removable battery ensures uninterrupted usage. Additionally, it is backward-compatible with EDA52 accessories, reducing costs for existing users. Operating on Android 12 with upgradeability to Android 14, it prioritizes ease of use, security, and long-term support. Integrated software solutions such as Honeywell Operational Intelligence and Smart Talk Unified Communications further enhance productivity and streamline workflows.

Add to Enquiry
Download PDF
Specification
MECHANICAL
Dimensions (L x W x H): 159 mm × 75 mm × 14.4 mm (6.26 in × 2.95 in × 0.57 in)
Weight: 260 g (9.17 oz)
Display Size: Gorilla Glass 5, 5.5-inch
Resolution: 1440 × 720 High Definition
Backlight: LED
Touchscreen: Multi-touch capacitive (CTP), GFF
Hard Keys: 5 side keys for volume up/down, right and left scan keys and power on/off
SYSTEM ARCHITECTURE
Processor: Qualcomm Snapdragon SM4350 Pro Kryo 460, 2xGold (A76 based) + 6xSilver (A55 based)
Memory: 8 GB RAM/128 GB Flash
Operating System: Android 12, and upgradeable to Android 14
Storage Expansion: MicroSD (up to 128 GB)
Rear Camera: 16-megapixel color camera
Front Camera: 8-megapixel color camera
Interface Ports: 2-pin bottom connection/6-pin bottom connection
Battery: Li-Ion, 3.8 V, 4,500 mAh, removable
Real-Time Clock (RTC): 5 min backup via super-cap
Charging Time: less than 3.5 hours
Battery Runtime: more than 12 hours
Scan Engine: Honeywell S0703 Slim Imager (1D/2D barcode symbologies)
ENVIRONMENTAL
Operating Temperature: -20°C to 50°C (-4°F to 122°F)
Storage Temperature: -30°C to 70°C (-22°F to 158°F)
Humidity: 5 % to 90 % (non-condensing)
Drop:

Multiple 1.5 m (5 ft) per MIL-STD 810G drops to concrete at room temperature

Multiple 1.8 m (6 ft) per MIL-STD 810G drops with rubber boot concrete at room temperature
Tumble: 1000 times at 0.5 m (1.64 ft)
Environmental Sealing: IP67
Electrostatic Discharge (ESD): ±8 kV direct; ±15 kV air
CONNECTIVITY
WLAN (Wi-Fi Alliance certified): IEEE 802.11 a/b/g/n/ac
Additional WLAN Features: 802.11 d/e/h/i/k/ r/u/w/v, 2X2 MU-MIMO
WLAN Security: OPEN, WEP, WPA/WPA2 (Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
WLAN Supported EAP: TLS, PEAP, TTLS, PWD, LEAP
Bluetooth: Bluetooth Class 5.1
WWAN Radio:  –
GSM: 850/900/1800/1900
UMTS: B1/B2/B4/B5/B6/B8/B19
LTE: B1/B2/B3/B4/B5/B7/B8/B19/B20/ B26/B28/B38/B40/B41/B66
5G NR: n1/n2/n3/n5/n7/n8/n20/n26/n28/ n38/n40/n41/n66/n77/n78/n79
NFC: Integrated Near Field Communication
GPS Supported Protocols: Simultaneous receiver support for GPS, AGPS, Beidou, GLONASS and Galileo
ACCESSORIES
Single Charging Home Base: Charges one terminal and one replaceable battery simultaneously
Single Charging Dock: Charges one terminal
Backwards Adapter Cup: Be compatible with EDA50/51 single charging dock
Quad Bay Charging Base: Charges four terminals simultaneously
Quad Bay Battery Charger
Standard Battery Pack
RFID Bracket
Scan Handle
Rubber Boot
Wrist Strap
Hand Strap
Screen Film
USBC Headset
Power Adapters
