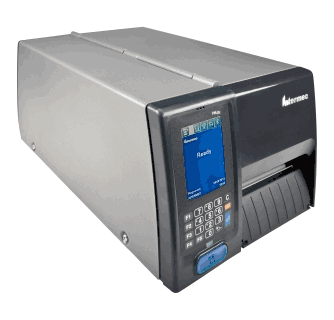

Honeywell PM 43 Barcode Printer (PM Series)

The PM43 and even more compact PM43c mid-range industrial printers deliver fast print speeds, drop-in deployment, advanced connectivity and proven reliability.

Industrial mid-range, direct thermal and thermal transfer label, ticket and tag printer. Also available with RFID.

Add to Enquiry
Download PDF
Specification
Physical Characteristics
  • Length : 483 mm
  • Height : 295 mm
  • Width : 284 mm
  • Weight: 15.82 kg (34.88 lb)
Print Specifications
  • Max. Width at 203 dpi: 108 mm (4.25 in)
  • Max. Width at 300 dpi: 106 mm (4.17 in)
  • Max. Width at 406 dpi: 104 mm (4.09 in)
  • Max. Length at 203 dpi: 4.8 m (15.75 ft)
  • Max. Length at 406 dpi: 1.2 m (3.94 ft)
RFID Standards and Frequencies
  • 18000-6C / EPC Class 1 Generation 2
  • 865–928 MHz radio configured to comply with local UHF RFID regulations including FCC and ETSI. Contact local representative for availability in particular regions.
Print Speed
  • At 203/300 dpi: 100–300 mm/s (4–12 ips)
  • At 406 dpi: 100–250 mm/s (4–10 ips)
Print Resolution
  • At 203 dpi: 8 dots/mm
  • At 300 dpi: 11.8 dots/mm
  • At 406 dpi: 16 dots/mm
Media
Media Type Labels and Tags, Linerless and Linered media
Max./Min. Width 114/19 mm
Thickness 3 mil to 10.4 mil
Configuration Roll-fed or fanfold
Sensing Gap, notch, black mark, continuous
Label Roll Max. Diameter 152 mm (6 in) for long door models; 213 mm (8.38 in) for
all other models
Label Roll Core 38–76 mm (1.5–3 in)
Type Ribbons
Max. Diameter 80 mm (3.15 in), approx. 450 m (1,476 ft)
Core ID 25 mm (1 in)
Type Wax, mid-range, resin
Genuine Honeywell Media Honeywell Media
Interfaces
Standard Ethernet 10/100 Mbps
RS-232, up to 115.2 KB/s
Supported Serial Protocols:
– Fingerprint/Direct Protocol: XON/XOFF, ENQ/ACK, DSR/DTR, RTS/CTS
– IPL: XON/XOFF, Honeywell Std. Protocol
USB 2.0
USB Host (X2 on PM43)
Optional Parallel IEEE 1284
Industrial Interface (8 digital
in/out, 4 analog relays,
1 RS-232/422/485 port)
Dual Serial ports RS-232, RS-422,
RS-485 and 20 mA Current Loop
Dual USB Host
Wireless IEEE 802.11 a/b/g/n + Bluetooth
Wi-Fi Certified, CCX (Cisco)
version 4 Certified
Static WEP (64-bit and 128-bit), Dynamic WEP (TLS, TTLS, PEAP, LEAP, EAP-FAST), WPA (TKIP/CCKM Personal and Enterprise), WPA2 (AES-CCMP/CCKM Personal and Enterprise)
Multiple industrial antenna options for maximized coverage
Supported Protocols TCP/IP suite (TCP, UDP, ICMP, IGMP), LPR/LPD, FTP, BOOTP, DHCP, HTTP, SNMPv1/2c/3, SNMP-MIBII supported – over UDP/IP (private enterprise MIB included), SMTP
Supports IPv4 and IPv6
Software
Printer Command Languages IPL, DP, ZSim2 (ZPL-II), DSim (DPL)
XML-enabled for SAP® AII
and Oracle® WMS
Applications/Drivers InterDriver Windows® printer driver
CUPS driver for Linux
Honeywell Device Types for SAP
Honeywell label design and
print package
Smart Printing Languages Honeywell C# for Printers: Smart Printing Developer Resource Kit
Write apps with .NET-compatible
development environments
Honeywell Fingerprint: Use Honeywell Fingerprint Application Builder
Configuration & Device Management Support: PrintSet for printer configuration
SmartSystems for remote management
Sophisticated web interface for configuration, upgrade and 1:1 management
Wavelink Avalanche
Barcode Symbologies

All major 1D and 2D symbologies are supported.

Standars Supported

UPC/EAN Shipping Container, UCC/EAN 128 Serial Shipping Container, MH10.8 Shipping Label, AIAG (shipping parts label), OGMARS, POSTNET, HIBCC, ISBT 128, GM1724, UPS Shipping label, Global Transport Label

Fonts
  • Monotype font engine
  • Non-Latin fonts available through WTLE
Graphics
  • Supports PCX, PNG, GIF and BMP file formats.
  • Other formats supported with Label Generation Tools.
Memory

Standard: 128 MB Flash memory, 128 MB SDRAM, Multi-GB USB memory device (FAT16/FAT32)

User Interface
  • Color Touch UI, Icon UI
  • User Interface Languages : – On Color Touch LCD and Web Interface: English, Russian, German, French, Portuguese, Spanish, Italian, Korean, Simplified and Traditional Chinese
Power Supply
  • AC Voltage: 100 to 240V AC, 45 to 65 Hz
  • PFC Regulation: IEC320/C14
  • Power Consumption: Standby 9W; Peak 300W
Operating Environment
  • Ambient Operating Temperature : +5°C to +40°C (+41°F to +104°F)
  • Storage Temperature : -20°C to +70°C (-4°F to +152°F)
  • Humidity : 20 to 80% non-condensing
Regulatory Approvals

RoHS Compliant, CE (EN55022 Class A), FCC Class A, UL/cUL, D Mark and CCC

Options and Accessories

Consult the PM Series Accessory Guide for full details: Integral self-strip unit with liner takeup, label taken sensor (LTS), media low sensor, media supply hub, parallel interface board, real-time clock, RFID UHF, additional serial interface boards1, industrial interface boards1, collapsible ribbon and liner core2, cutter2, linerless2, full batch label/liner rewinder3
