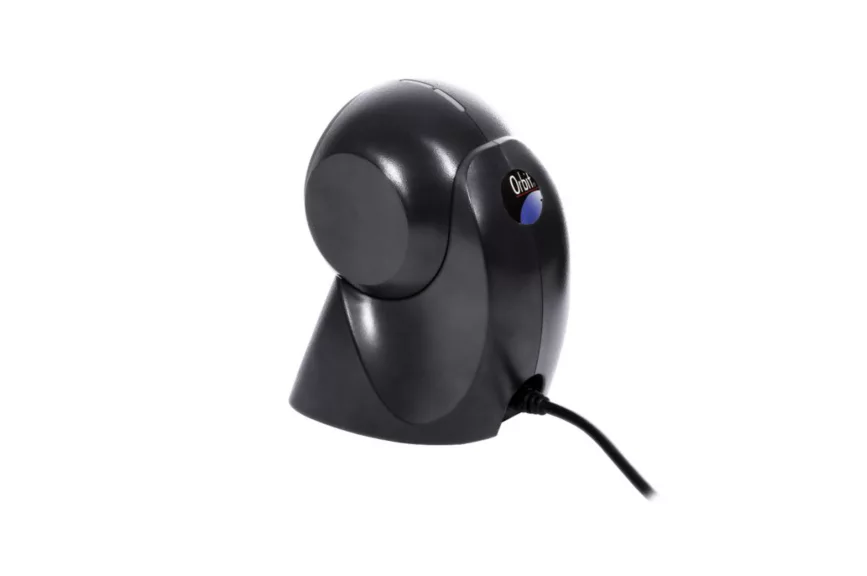

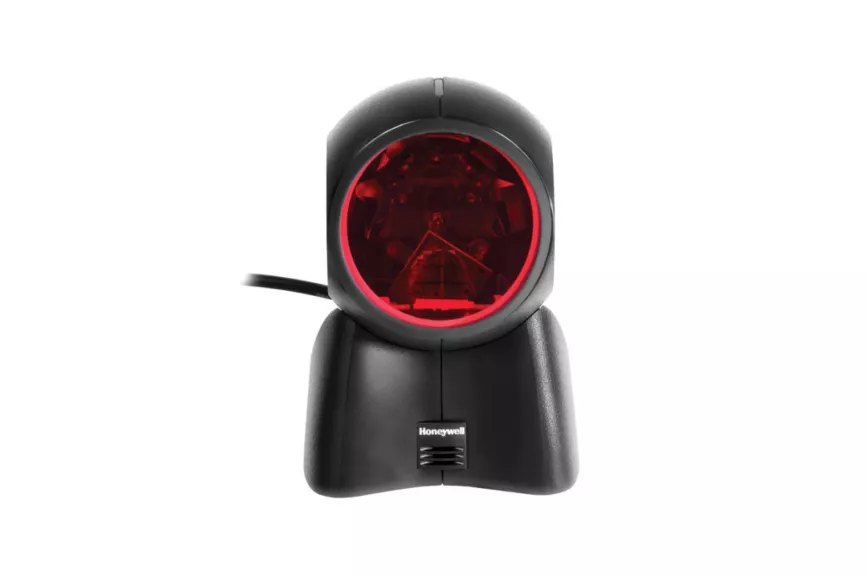

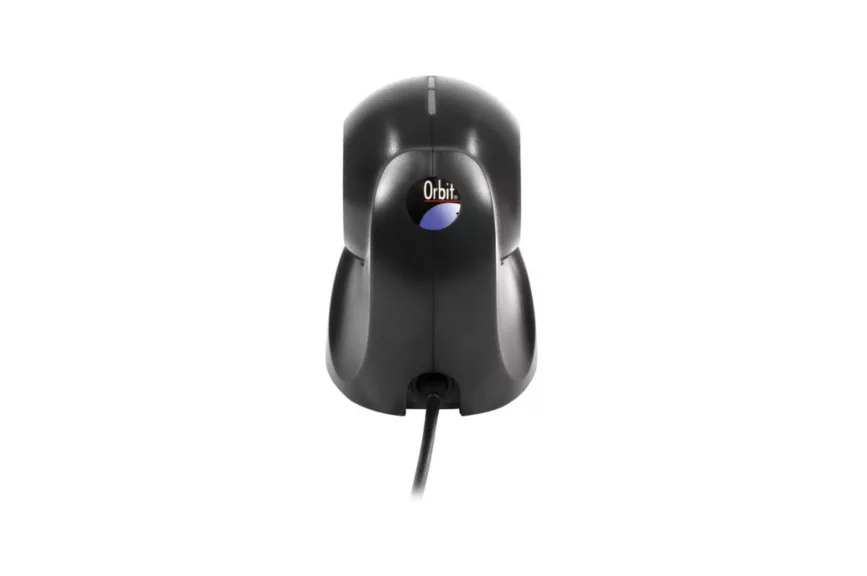

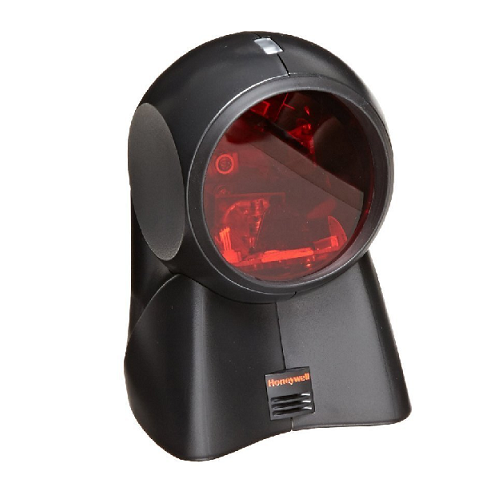

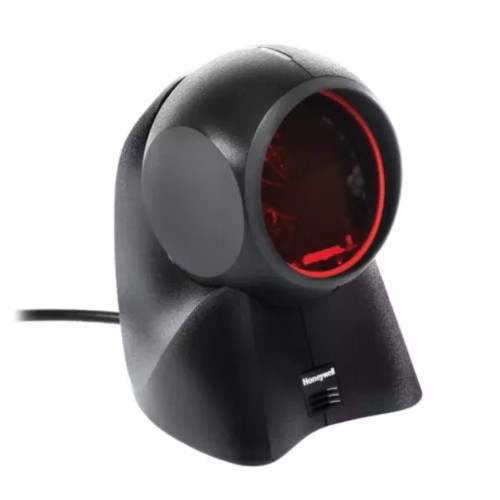

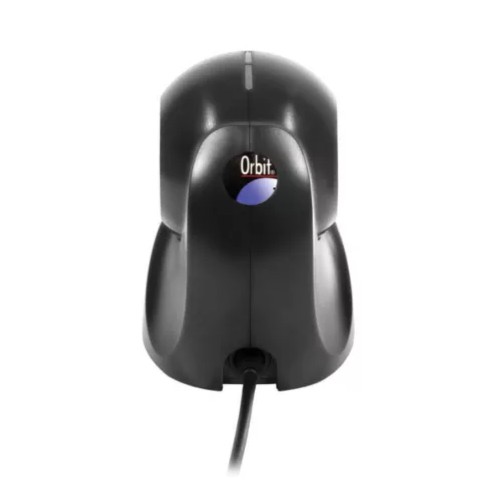

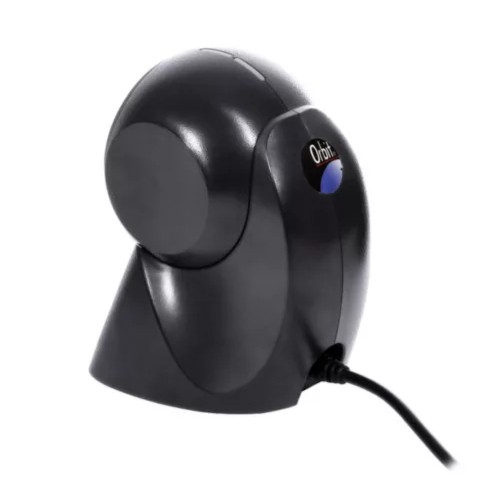

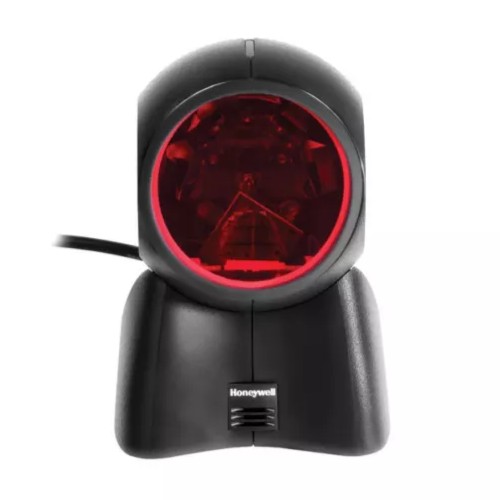

Honeywell Orbit 7190G Omni-Directional 2D Imager

The Orbit™ 7190g scanner incorporates breakthrough hybrid technology that combines omnidirectional laser scanning and integrated area-imaging to provide a barcode reading platform optimized for highly efficient checkouts. Like other Orbit scanners, it delivers superior pass-through scanning of merchandise linear barcodes, while simultaneously helping retailers address the growing need for digital barcodes reading – without requiring an additional scanner.

Download PDF
Mechanical / Electrical
Dimensions (L x W x H) 108 mm x 103 mm x 148 mm (4.3 in x 4.1 in x 5.8 in)
Weight 410 g (14.5 oz)
Input Voltage 5 VDC ±0.25 V
Operating Power 472 mA @ 5 V
Standby Power 255 mA @ 5 V
Host System Interfaces USB, RS-232, Keyboard Wedge, IBM468xx (RS485)
EAS Features EAS with interlock and integrated RF EAS antenna (EAS model)
Operating Temperature 0°C to 40°C
(32°F to 104°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 1.2 m (4 ft) drops
Environmental Sealing Sealed to resist airborne particulate contaminants
Light Levels Laser: 4842 Lux
Imager: 100000 Lux
Scan Performance
Scan Pattern Hybrid, Omnidirectional Laser (5 fields of 4 parallel lines) and Area Imager (640 x 480 pixel array)
Scan Speed Omnidirectional: 1120 scan lines per second
FPS: 30
Scan Angle (Imager) Horizontal: 40.0°
Vertical: 30.5°
Symbol Contrast 35% minimum reflectance difference
Pitch, Skew Laser: 60°, 60°
Imager: 60°, 70°
Decode Capability Laser: Reads standard 1D, GS1 DataBar symbologies
Imager: Reads standard 1D, PDF and 2D symbologies
Warranty 3-year factory warranty
