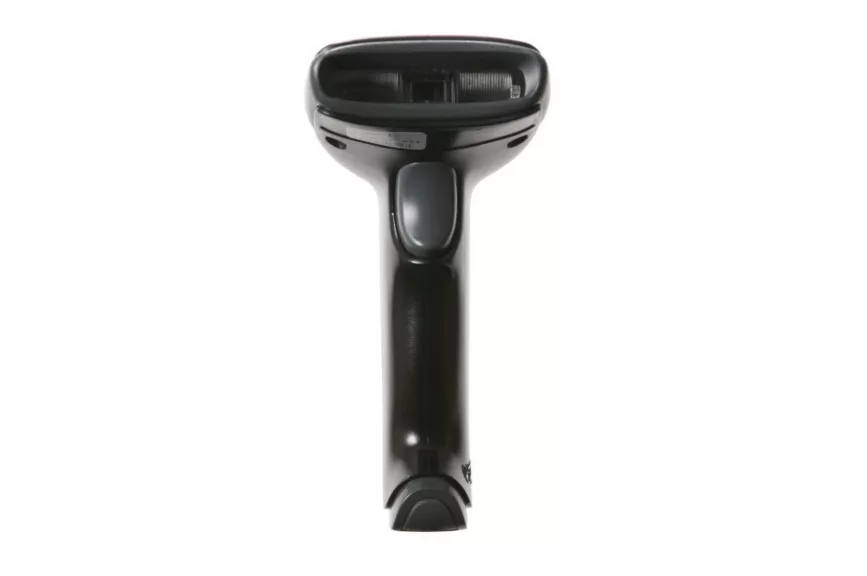

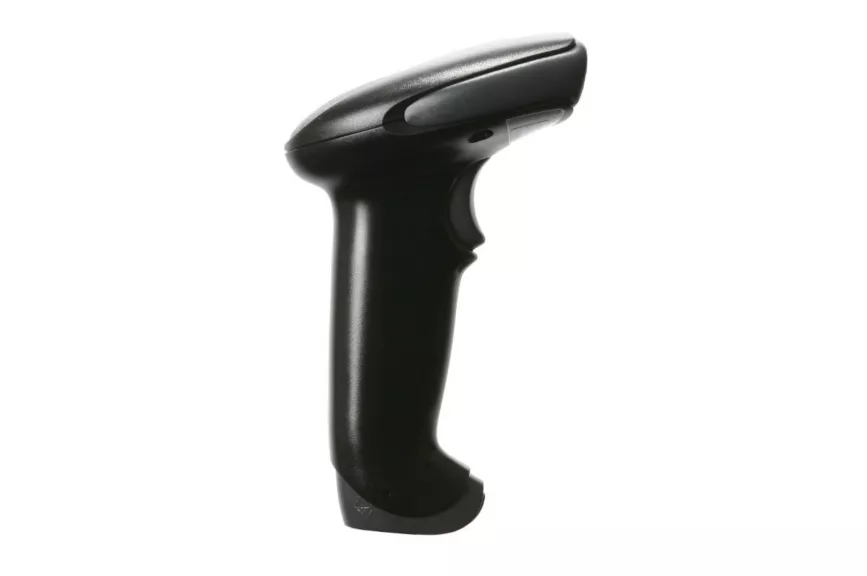

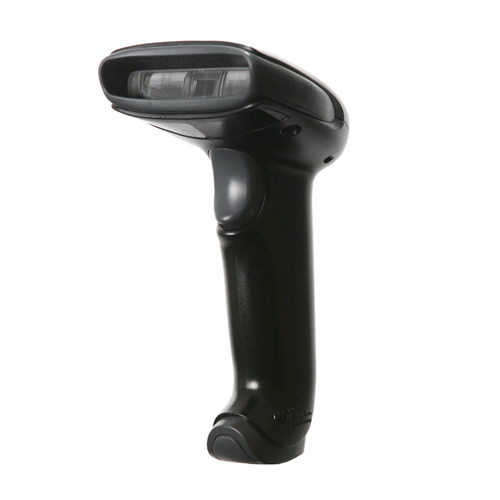

Honeywell Hyperion 1300g Linear Imager

Featuring an ideal balance of performance, durability and ergonomics, the Hyperion 1300g provides years of hassle-free scanning, especially in scan-intensive or light industrial applications.

The Hyperion 1300g delivers outstanding linear imaging performance and versatility. Fast intuitive bar code reading out to 18 inches (457mm), and high density bar code reading are both enabled in a single device, eliminating the need to purchase specialty scanners.

Download PDF
Specification
Mechanical/Electrical
Dimensions (LxWxH) 150 mm x 112 mm x 79 mm (5.9˝ x 4.4˝ x 3.1˝)
Weight 160 g (5.6 oz)
Input Voltage 5 VDC + 0.25 V
Operating Power 1000mW; 200 mA (typical) @ 5V
Standby Power 625mw; 125 mA (typical) @ 5V
Host System Interfaces Multi-Interface/includes RS232 (TTL +5V, 4 Signals)/KBW/USB (HID keyboard, serial, IBM OEM);
RS-232C (±12V) and IBM RS485 supported via adapter cable
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 60°C (-40°F to 140°F)
Humidity 0 to 95% non-condensing
Drop Designed to withstand 50 drops on concrete from 1.5m
Environmental IP41
Light Levels 0-70,000 lux (direct sunlight)
Scan Performance
Scan Pattern Single scan line
Motion Tolerance 20 in (51cm) per second
Scan Rate Up to 270 scans per second
Print Contrast 20% minimum reflectance difference
Pitch, Skew 65°, 65°
Decode Capabilities Reads standard 1D and GS1 DataBar symbologies
Warranty 5 year factory warranty
