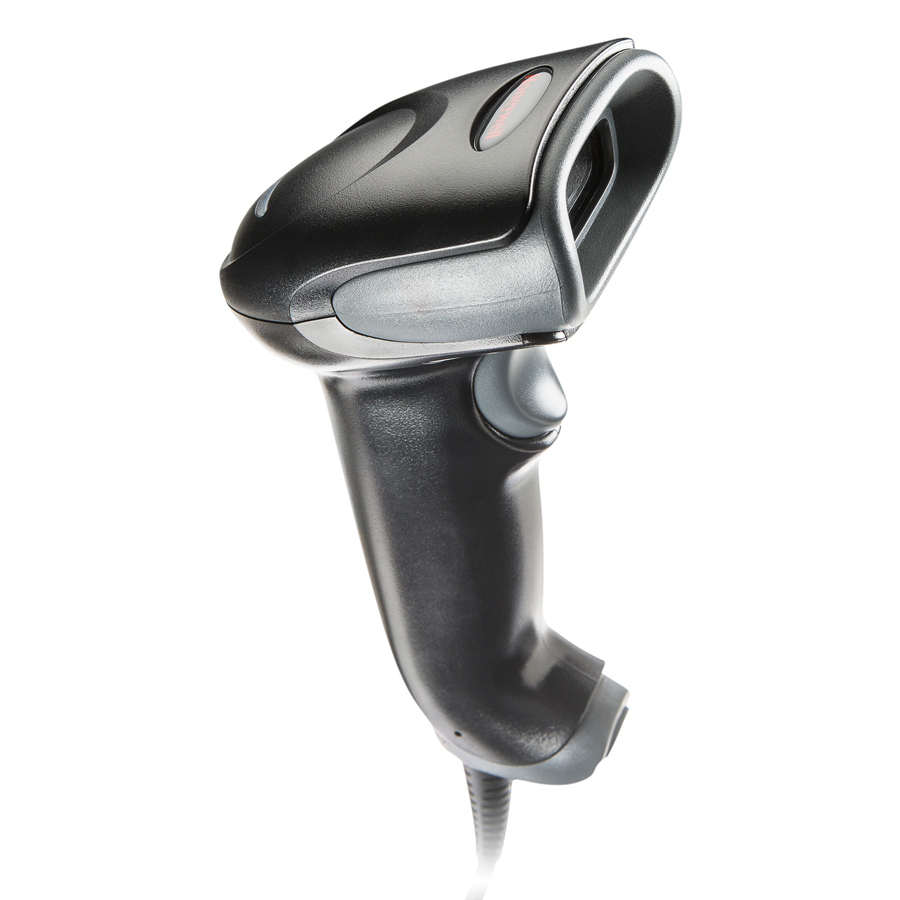

Honeywell HH660 2D Area Imager

HH660 offers aggressive 1D, 2D and PDF417 bar code scanning performance—even when reading damaged, partially obscured, or poorly printed bar codes. HH660 features a customized decode algorithm and enhanced-resolution sensor for rapid, trouble-free scans. This product offers an exceptional value for enterprises that require the versatility of area-imaging technology today or may need it in the future. HH660 demonstrates strong capability of reading colorful barcodes as well as the barcodes on mobile screens, and therefore, is able to cover a large variety of new applications in the emerging Marketing. Produced by a company with decades of
experience in engineering quality data capture solutions, Honeywell’s HH660 area-imaging scanner would be your ideal investment.

Download PDF
Specification
Mechanical
Dimensions (LxWxH) 6 2 x 169 x 82 mm (2.4″ x 6.6″ x 3.2″)
Weight 130g (4.6 oz)
Input Voltage 4.4V DC – 5.5V DC
Operating Power 2.00 W (400mA @ 5 VDC)
Interfaces USB
Standby Power 0.45 W (90mA @ 5 VDC)
Environmental
Operating Temperature 0°C to 50°C (32°F to 122°F)
Storage Temperature -40°C to 70°C (-40°F to 158°F)
Humidity 5% to 95% relative humidity, non-condensing
Drop Designed to withstand 30 1.5m (5’) dr ops to concrete
Environmental Sealing IP42
Light Levels 0 to 100,000 lux (9,290 foot-candles)
Scan Performance
Scan Pattern Area Image (1280 x 800 pixel array)
Motion Tolerance: Up to 13cm (5 inch) per second on 13mil UPC-A Symbol
Scan Angle Horizontal 47°; Vertical 30°
Symbol Contrast 25% minimum reflectance difference
Pitch, Skew, Tilt ±60°, ±70°, 360°
Decode Capabilities All standard 1D, PDF417, and 2D symbologies (including high resolution)
Warranty 3 year factory warranty
